Balancer shaft transmission

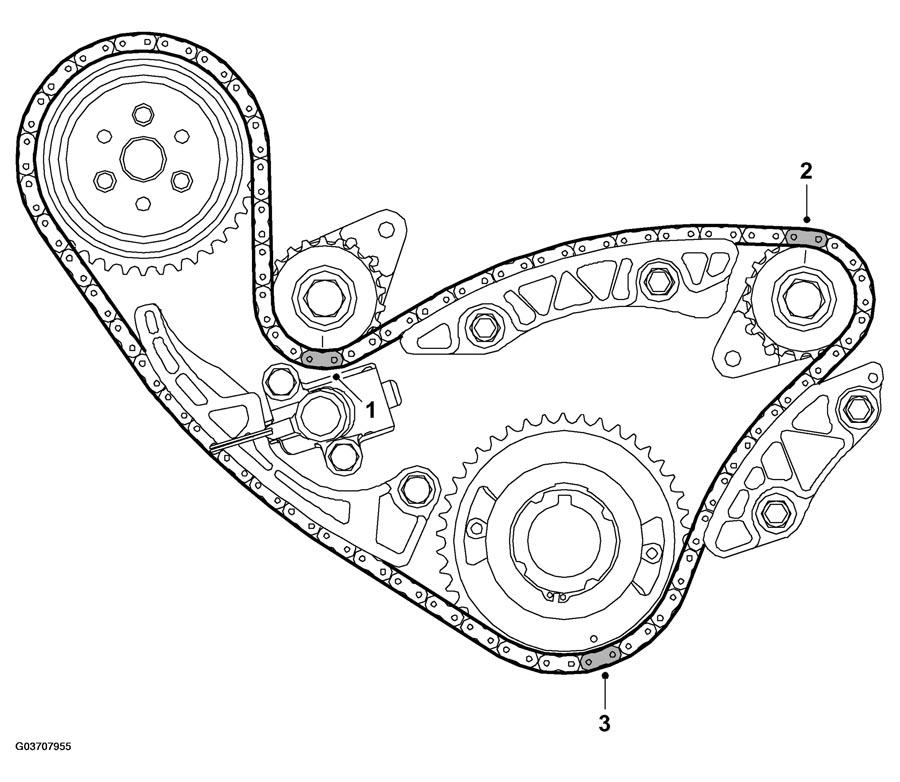

Fig 1: Illustration For Step 1-3
G03707955Courtesy of SAAB-SCANIA OF AMERICA, INC.

Balancer shaft chain traction

  1. Chain link, chrome colored
  2. Chain link, copper colored
  3. Chain link, chrome colored

When setting the balancer shaft chain loop, the marks on the cogs must be aligned with the marks on the block. The chain is adjusted as shown in the diagram and when the pulley is zeroed with cylinder 1 in the top dead center.
