Fuse 4, electrical center engine bay 342: Trionic: Notes

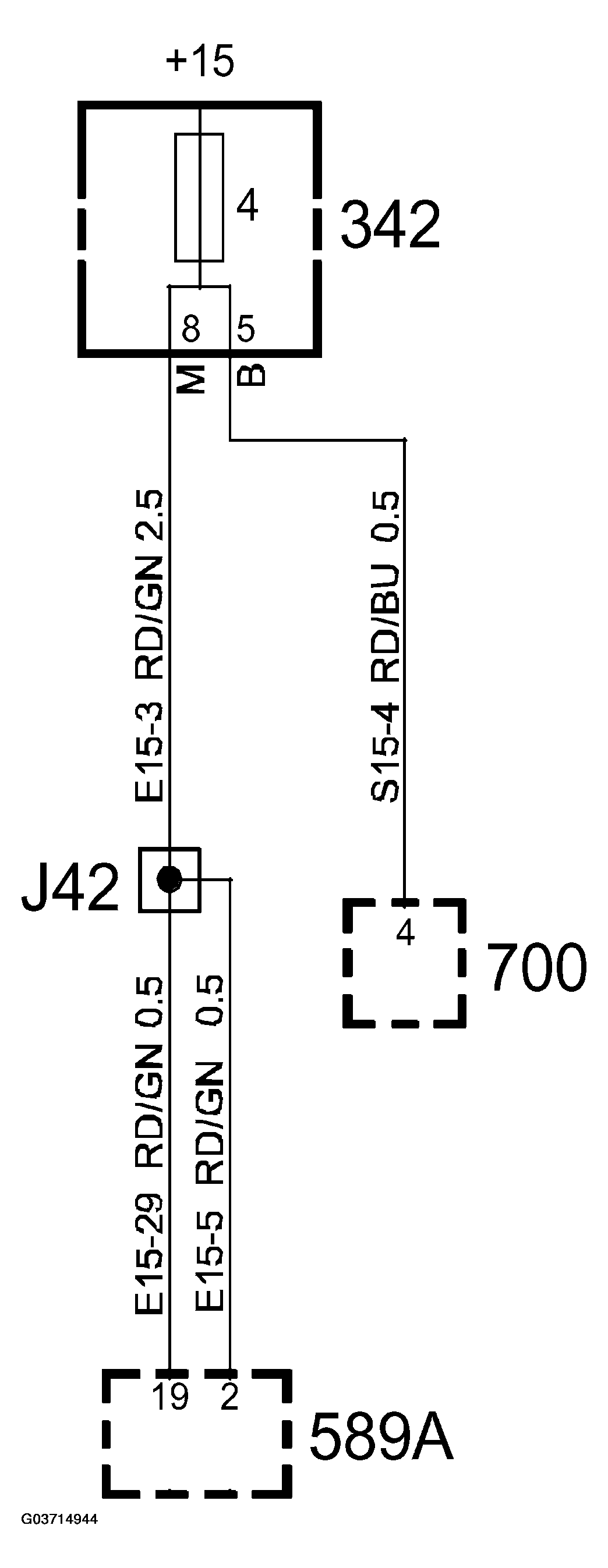

Fig 1: Electrical Centre Engine Bay Circuit Diagram (Trionic)

G03714944

Courtesy of SAAB-SCANIA OF AMERICA, INC.
