To remove

  1. Remove the battery cover.

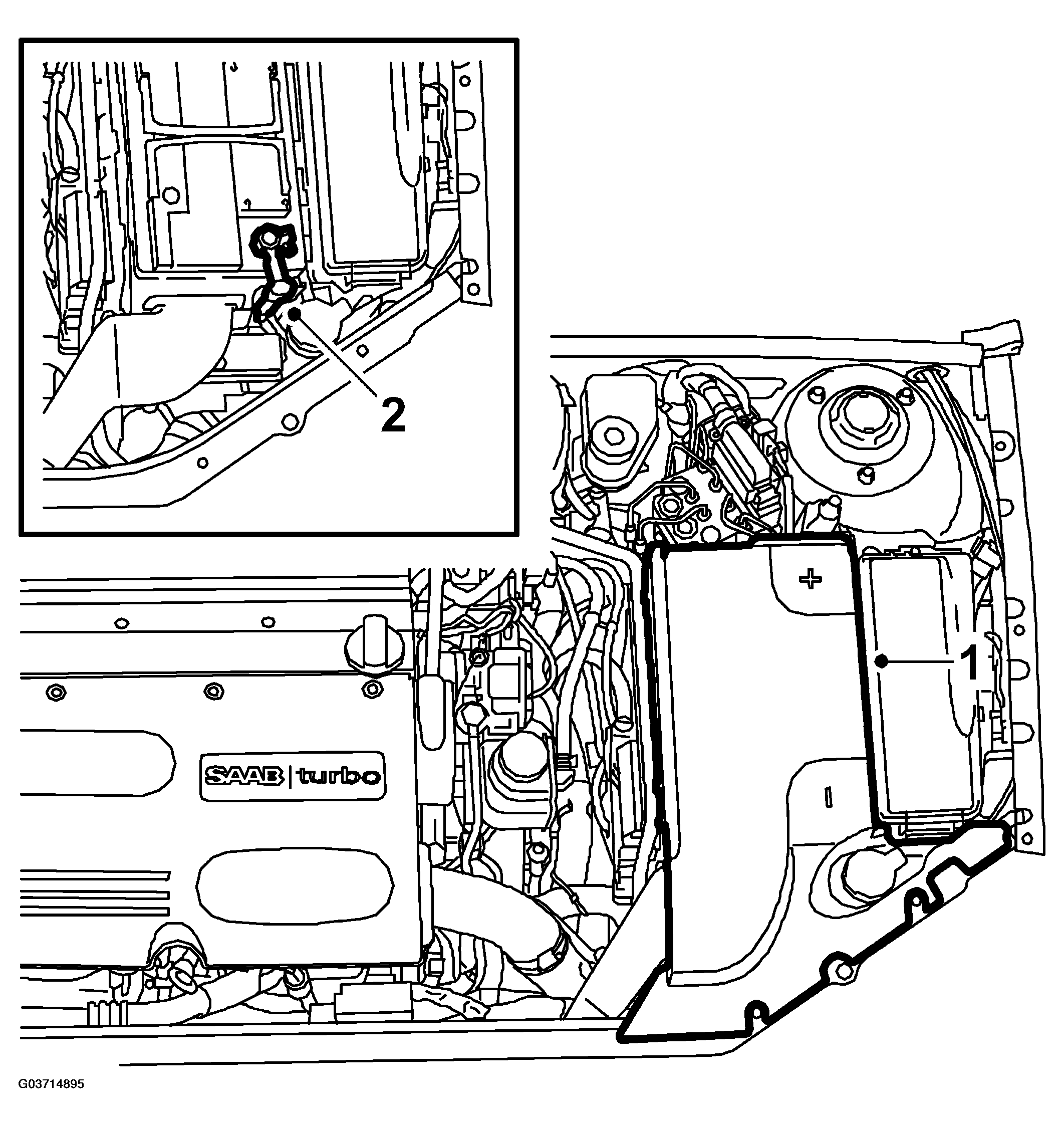

    Fig 1: Illustration For Step 1-2
    G03714895Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Disconnect the negative battery cable.
  3. Raise the car.
  4. Disconnect the starter motor connecting cables.

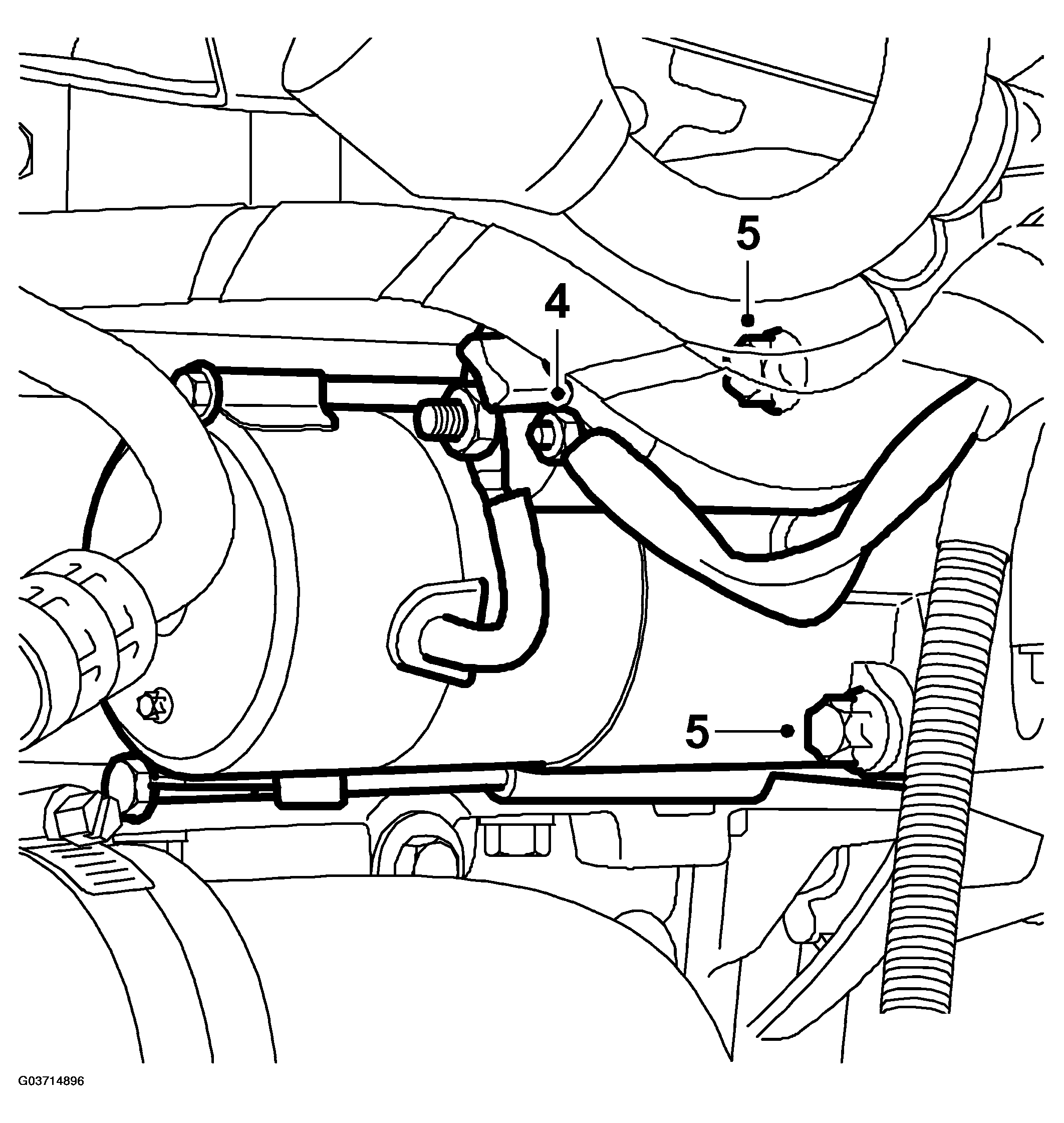

    Fig 2: Illustration For Step 4-5
    G03714896Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the starter motor retaining bolts.
  6. Lower the starter motor and lift it out.
