Removal & Installation
- Remove the battery. See BATTERY
.

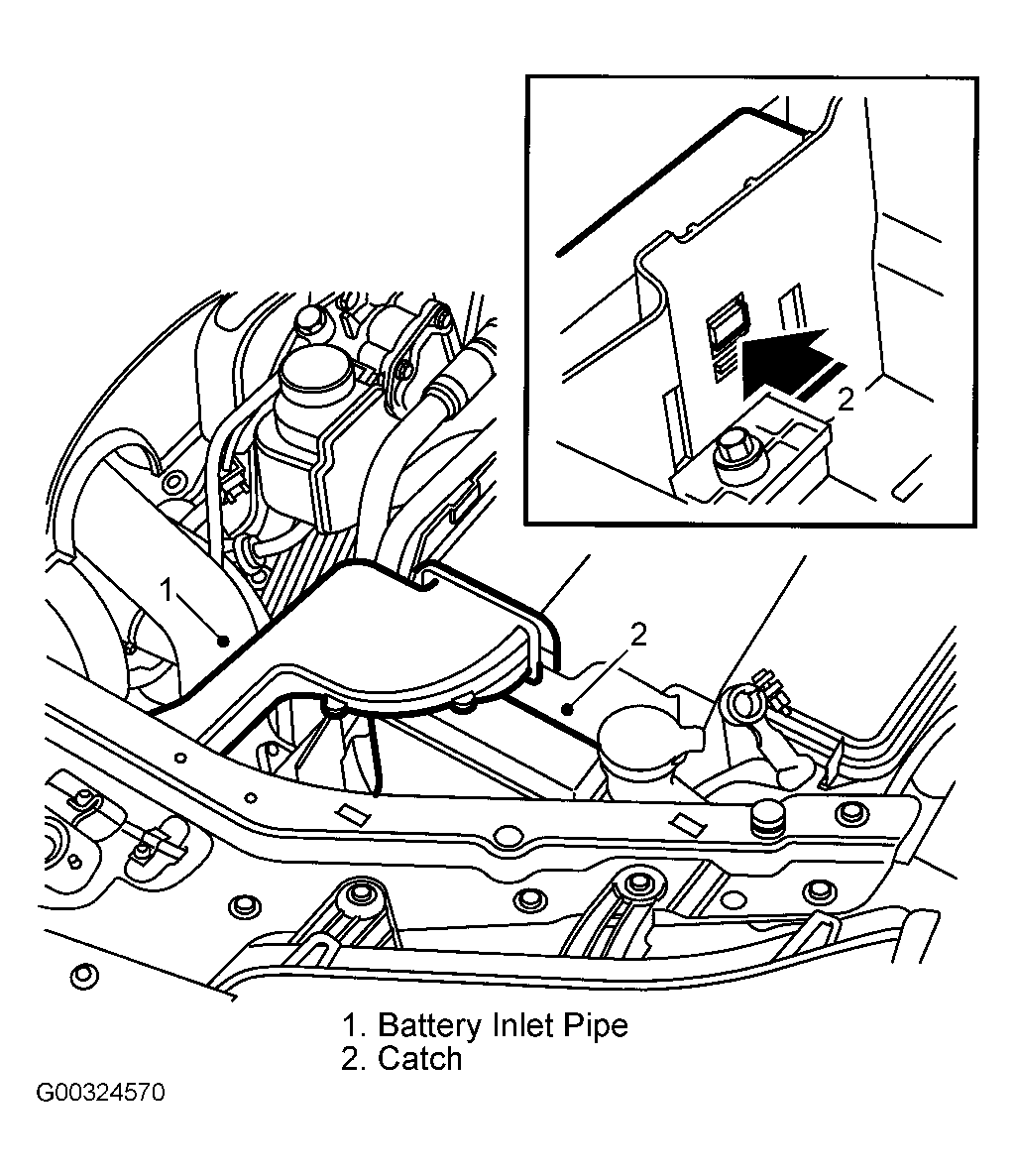

- Remove the battery's air inlet pipe. Press in the catch and move aside the fuse box in front of the battery. See Fig 1
.

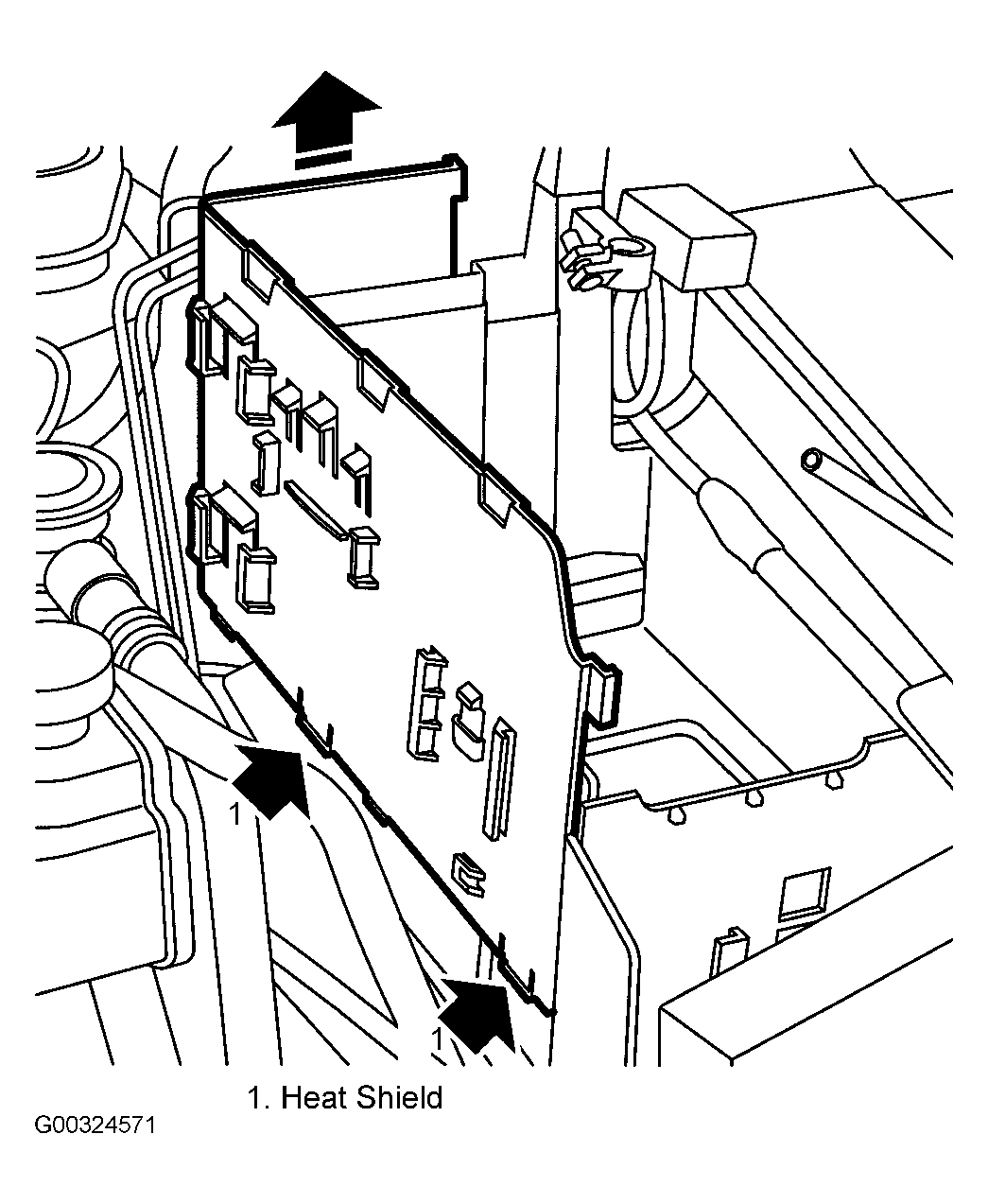

- Loosen the catches and move aside the heat shield, letting any components remain on the heat shield. See Fig 2
.
- Cars with theft protection:

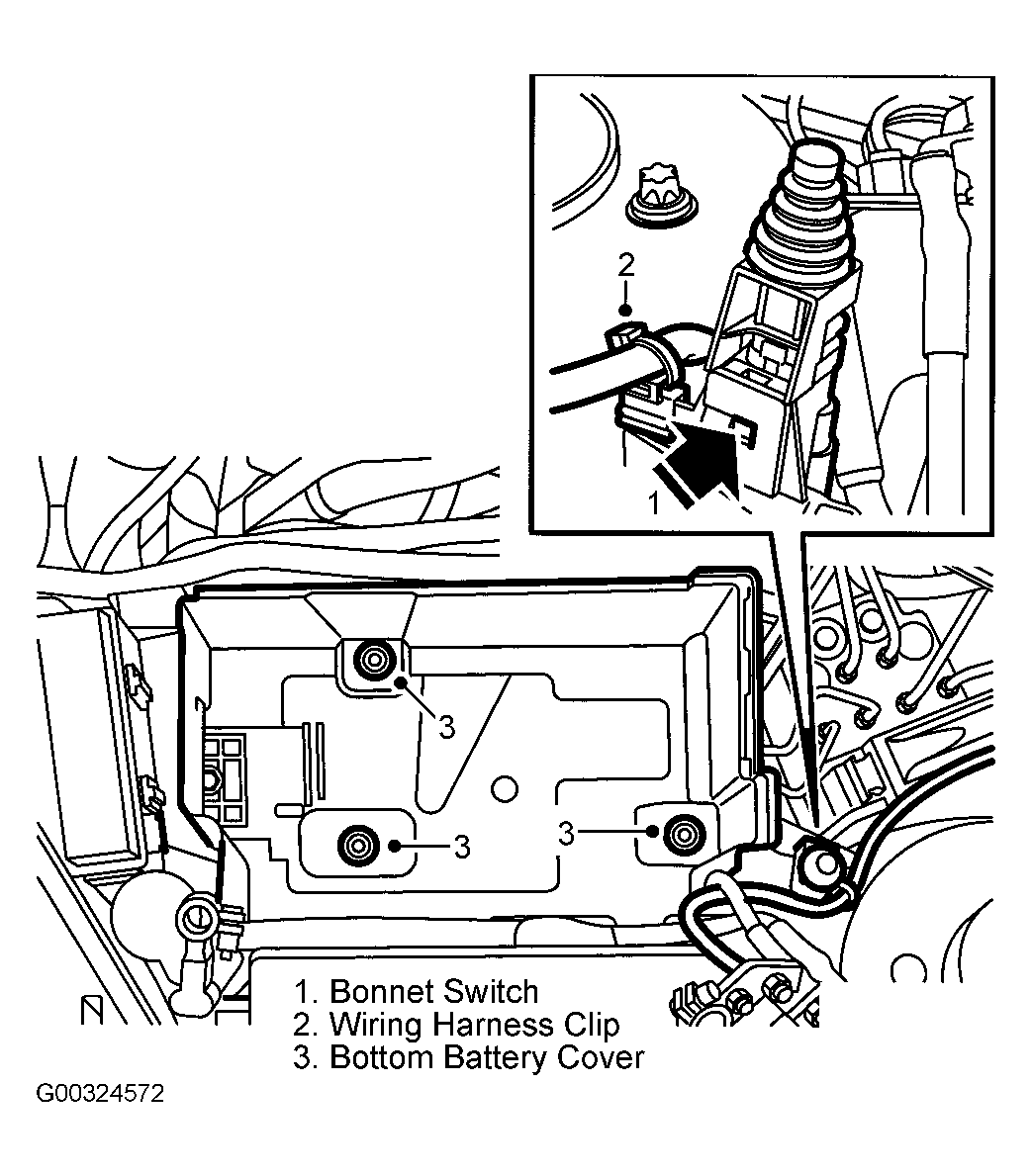

Detach the bonnet switch from the battery cover. See Fig 3
.
- Undo any wiring harness clips from the battery cover. Remove the bottom of the battery cover. See Fig 3
.
- To install, reverse removal procedure. Tighten cover to 18 Ft. Lbs. (24 N.m).
