Brake light switch (29), TCS/ESP: Connection

CONNECTOR DESCRIPTION

Pin no.	Type of signal	Description
1	+30	Power supply from fuse 6 instrument panel electrical center.
2	Signal	The pin receives B+ when the brake pedal is depressed. Connected to TCS/ESP control module pin 17.

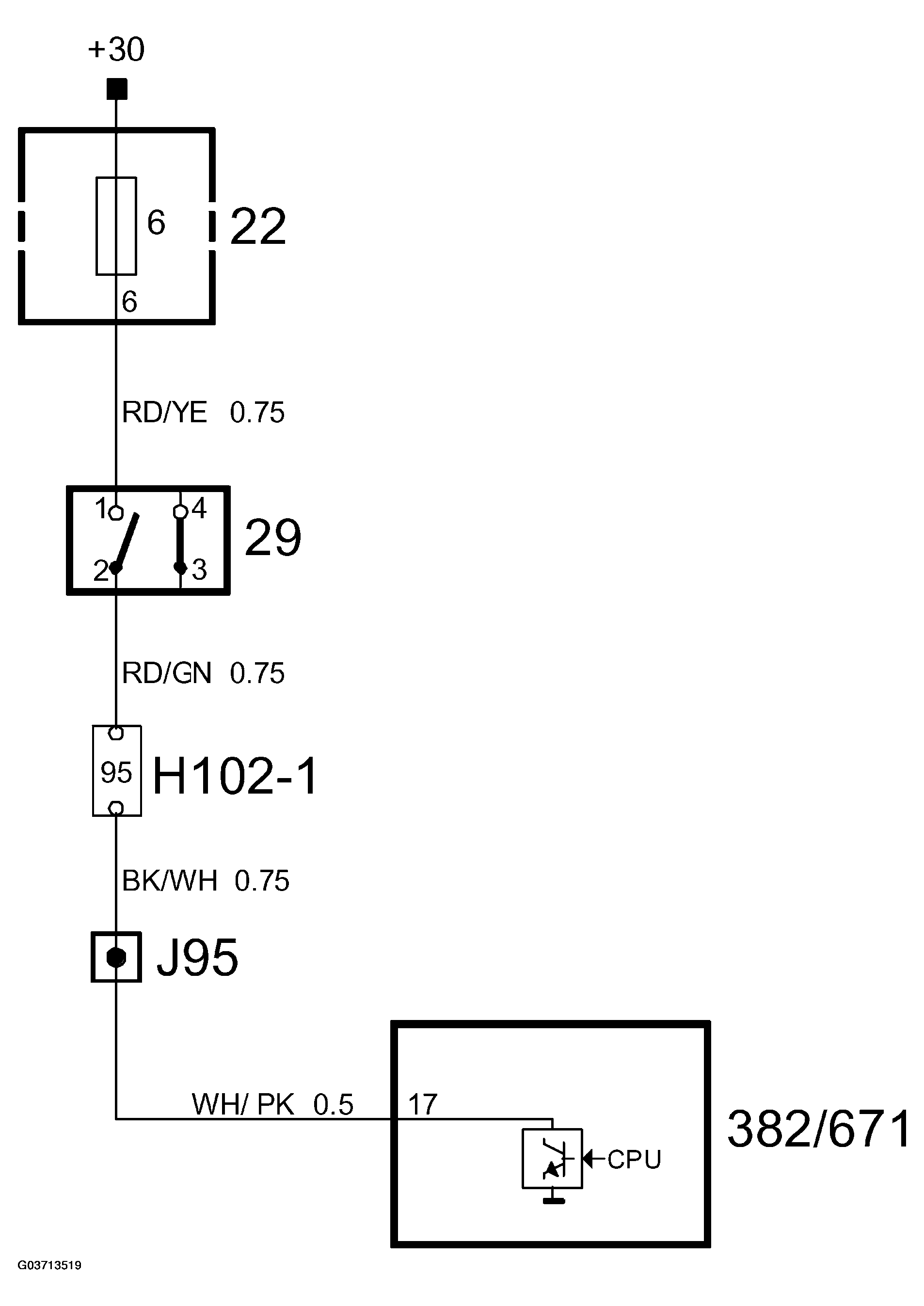

Fig 1: Brake Light Switch Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
