Switch unit (357D)
Switch unit (357D)

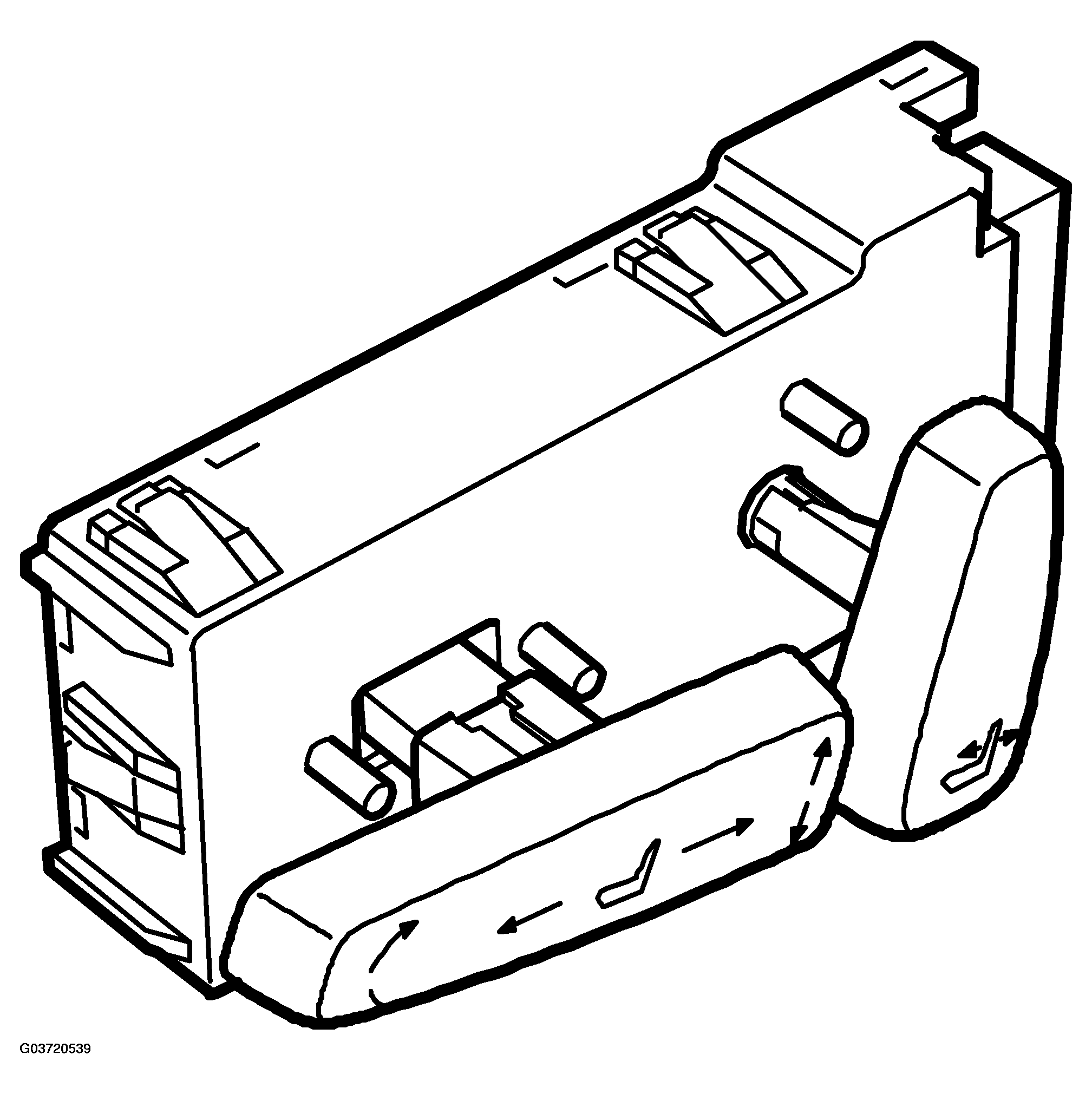

Fig 1: Identifying Switch Unit (357D)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
SWITCH UNIT (357D) SPECIFICATION
Number of connection pins
no.
12
Power supply
pin
10
Courtesy of SAAB-SCANIA OF AMERICA, INC.
