Motor, front height adjustment: Removing

  1. Remove the seat.
  2. Remove FRONT SEAT SIDE PANEL  .
  3. Remove the upholstery on the same side as the motor.

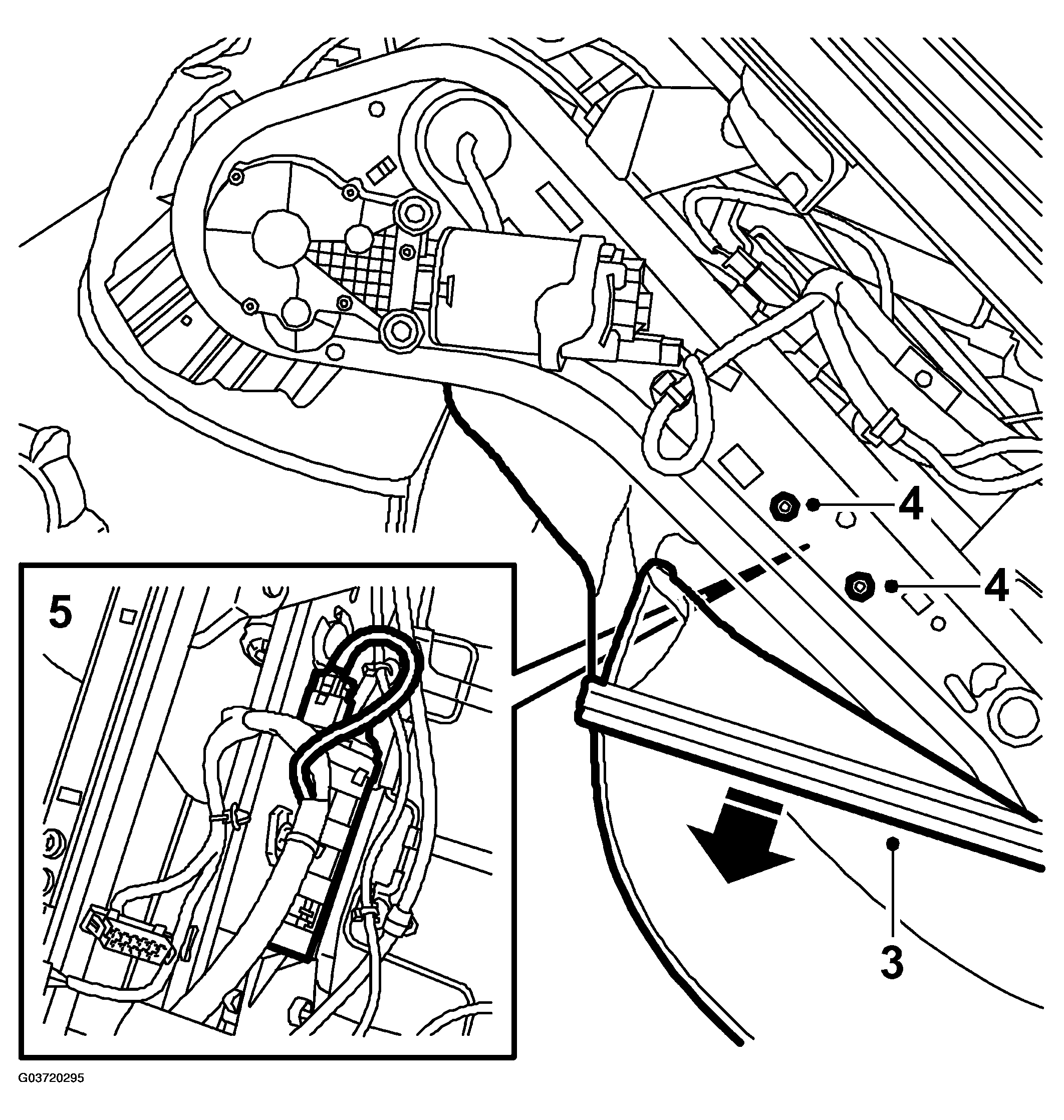

    Fig 1: Illustration For Steps 3-5
    G03720295Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the bolts from the front edge of the height adjustment motor.
  5. Unplug the motor and undo the clip holding the cable to the motor.
  6. Remove the motor by guiding it towards the center of the seat so that it detaches from the drive shaft.
