To remove

  1. REMOVE THE BACKREST UPHOLSTERY  .
  2. Remove the lumbar support.
    Fig 1: Illustration For Step 2
    G03720280Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector.

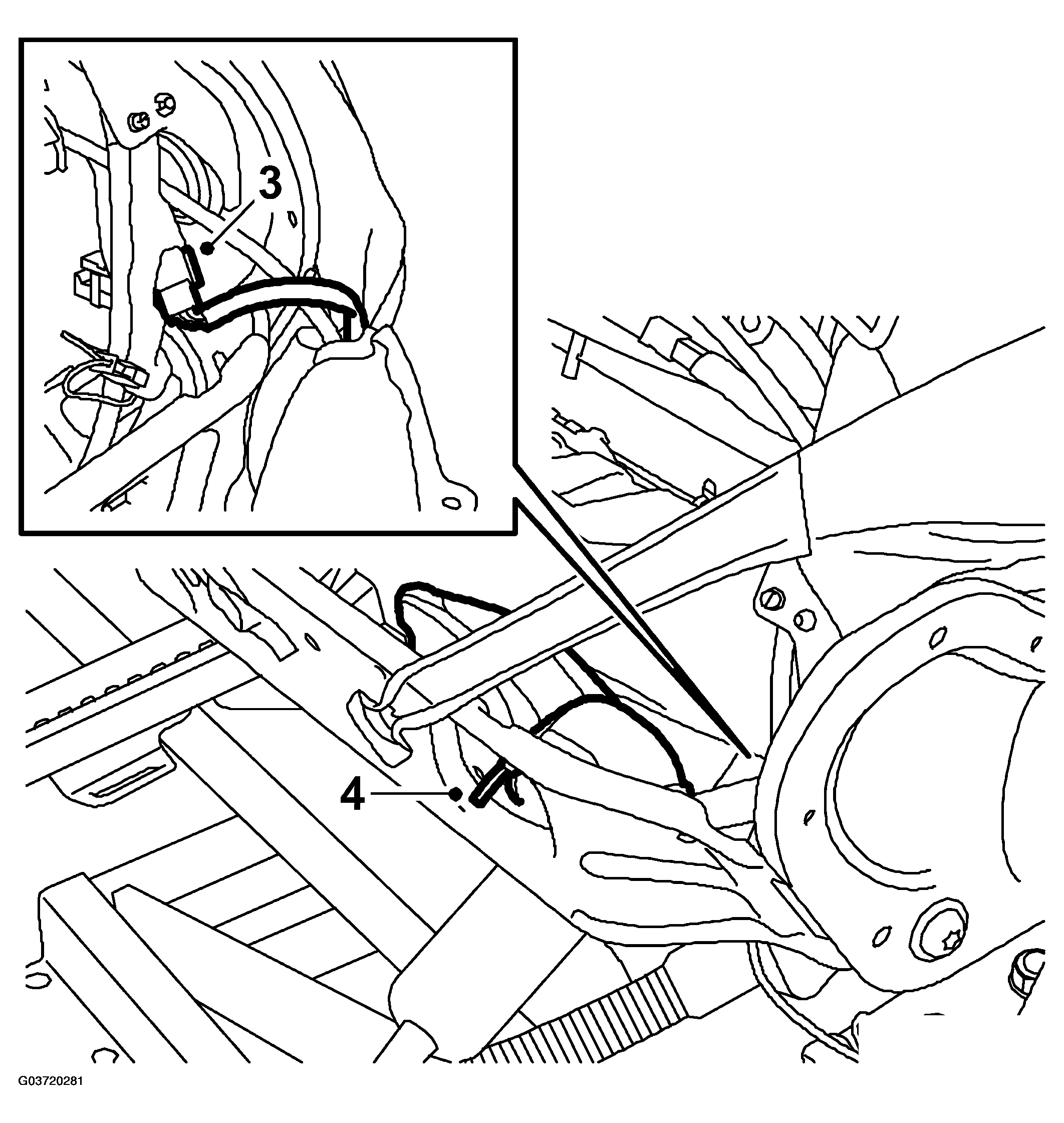

    Fig 2: Illustration For Steps 3-4
    G03720281Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the pump.
  5. Pull out the lumbar support.
