To remove

  1. Fold the backrest down and remove the backrest tab clips using 82 93 474 REMOVAL TOOL  .

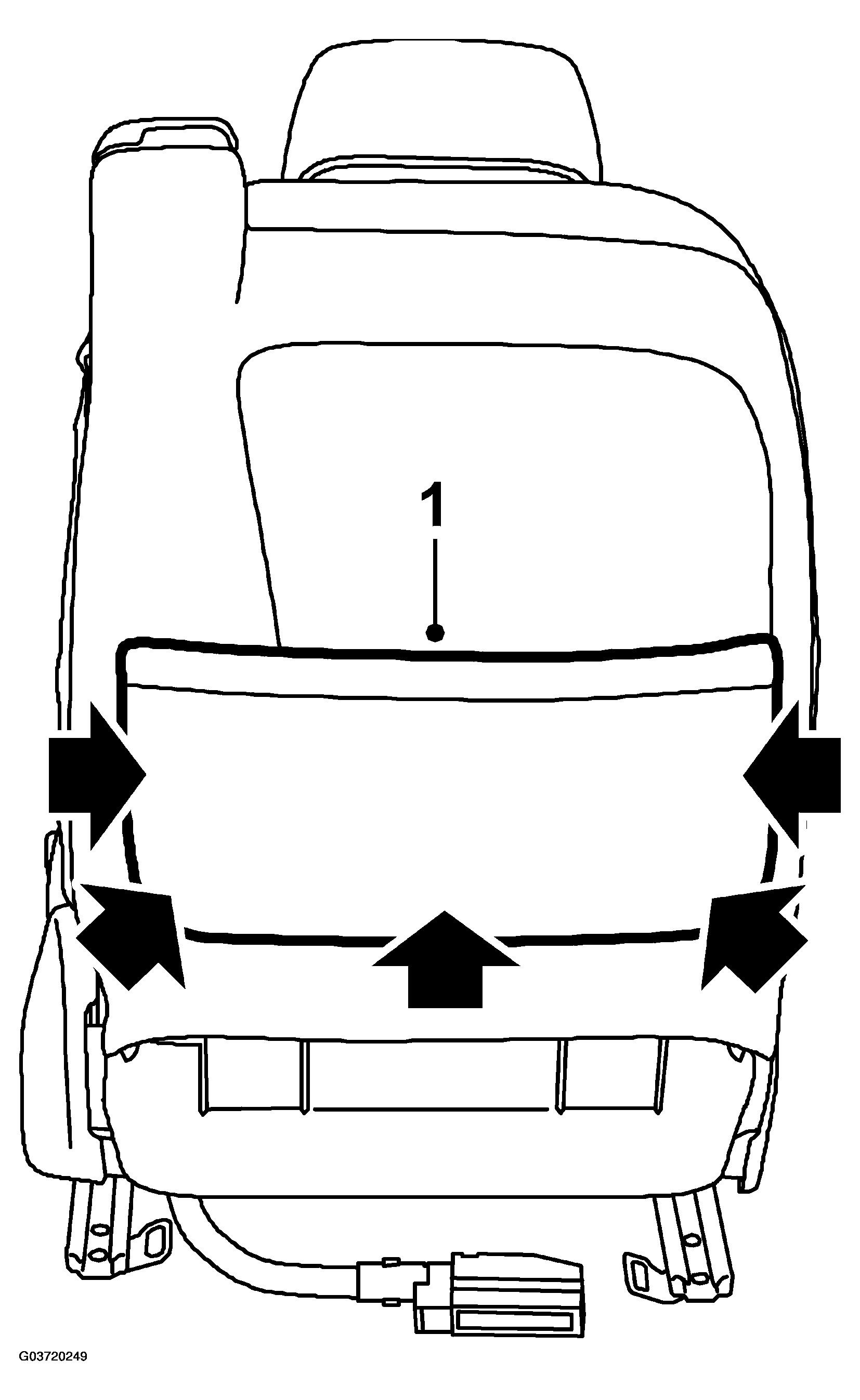

    Fig 1: Illustration For Step 1
    G03720249Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Lift up the tab so that the hooks in the upper edge detach from the cover.

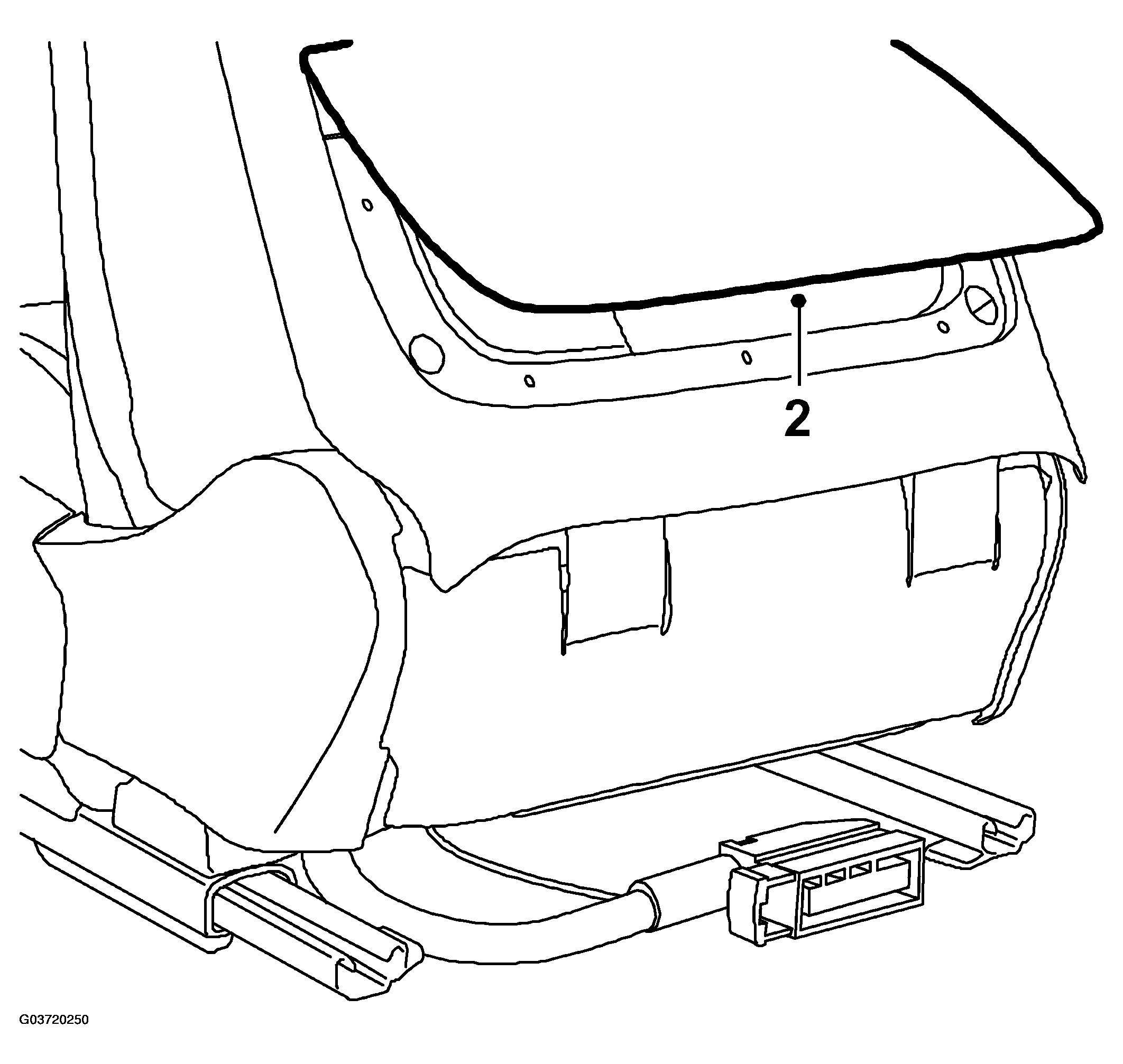

    Fig 2: Illustration For Step 2
    G03720250Courtesy of SAAB-SCANIA OF AMERICA, INC.
