Control module, TCM (502)

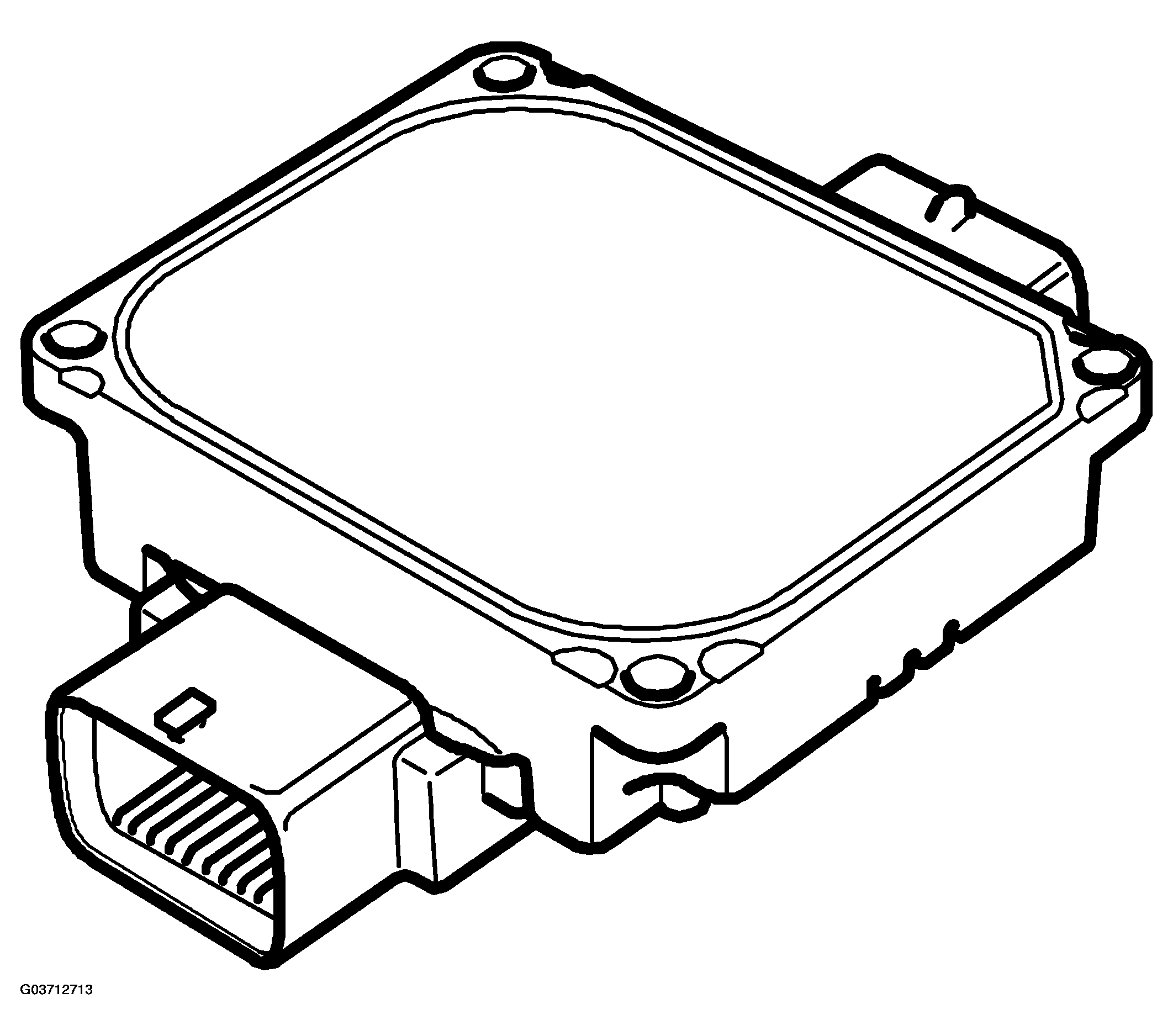

Fig 1: Identifying Control Module, TCM (502)
G03712713Courtesy of SAAB-SCANIA OF AMERICA, INC.
CONTROL MODULE POSITION

Type
Microprocessor controlled IO device, working memory and one programmable EEPROM read memory.
