Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Component Location >> Fuse 5, dashboard electrical center 22 >> Notes

Fuse 5, dashboard electrical center 22: Notes

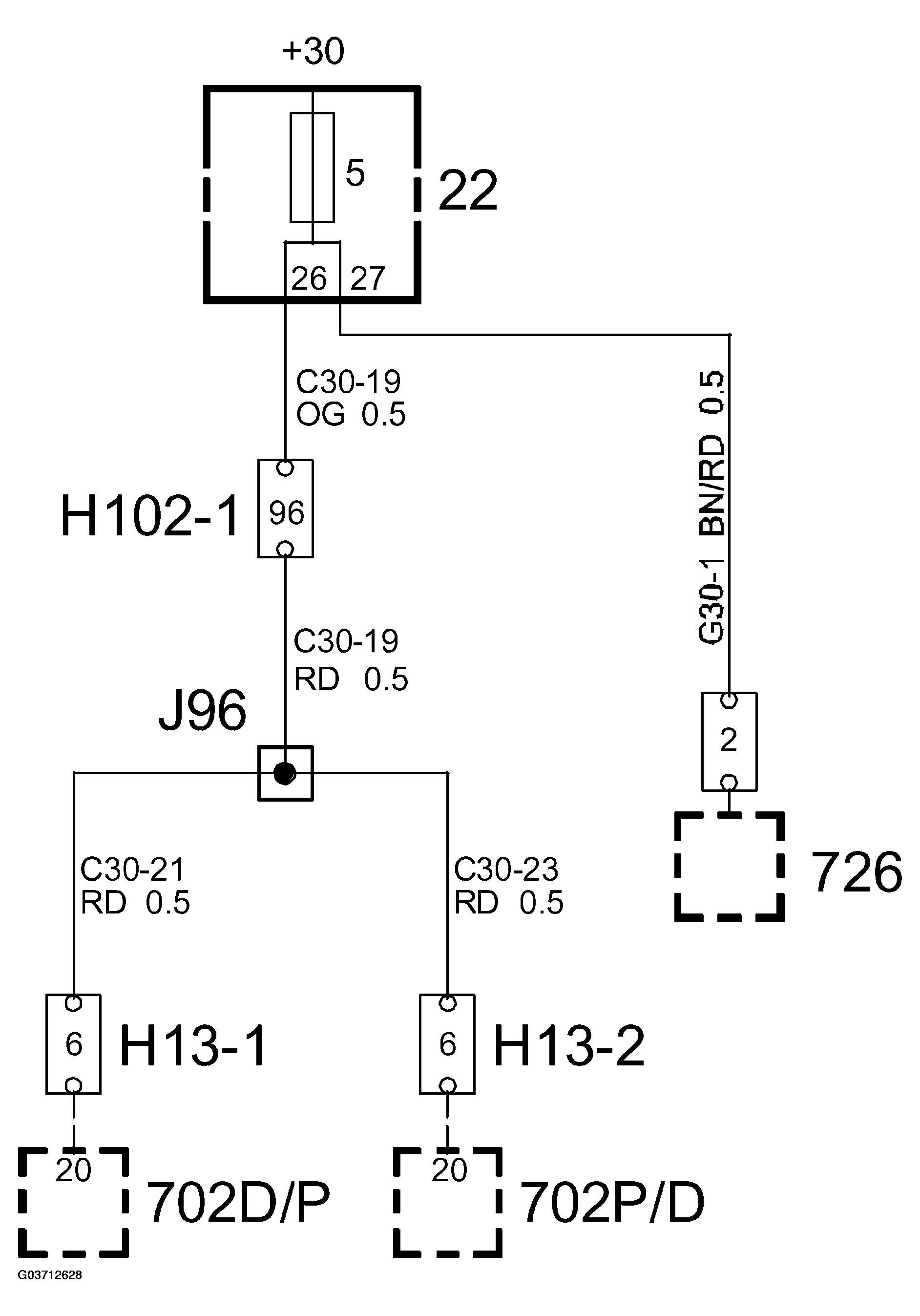

Fig 1: Dashboard Electrical Center Circuit Diagram

G03712628

Courtesy of SAAB-SCANIA OF AMERICA, INC.
