To fit

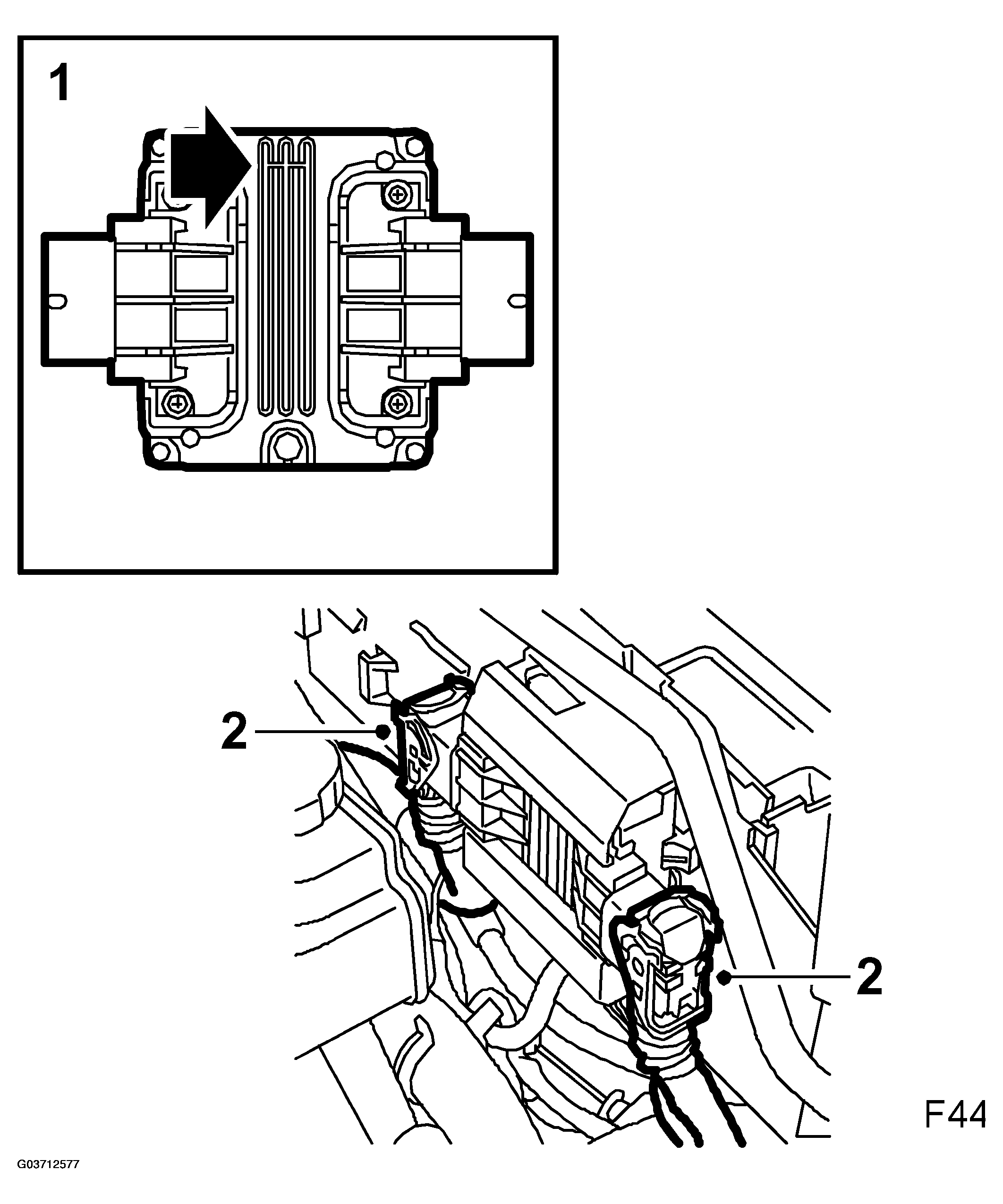

- Fit the control module.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
IMPORTANT:
Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION
.
- Plug in the connectors.

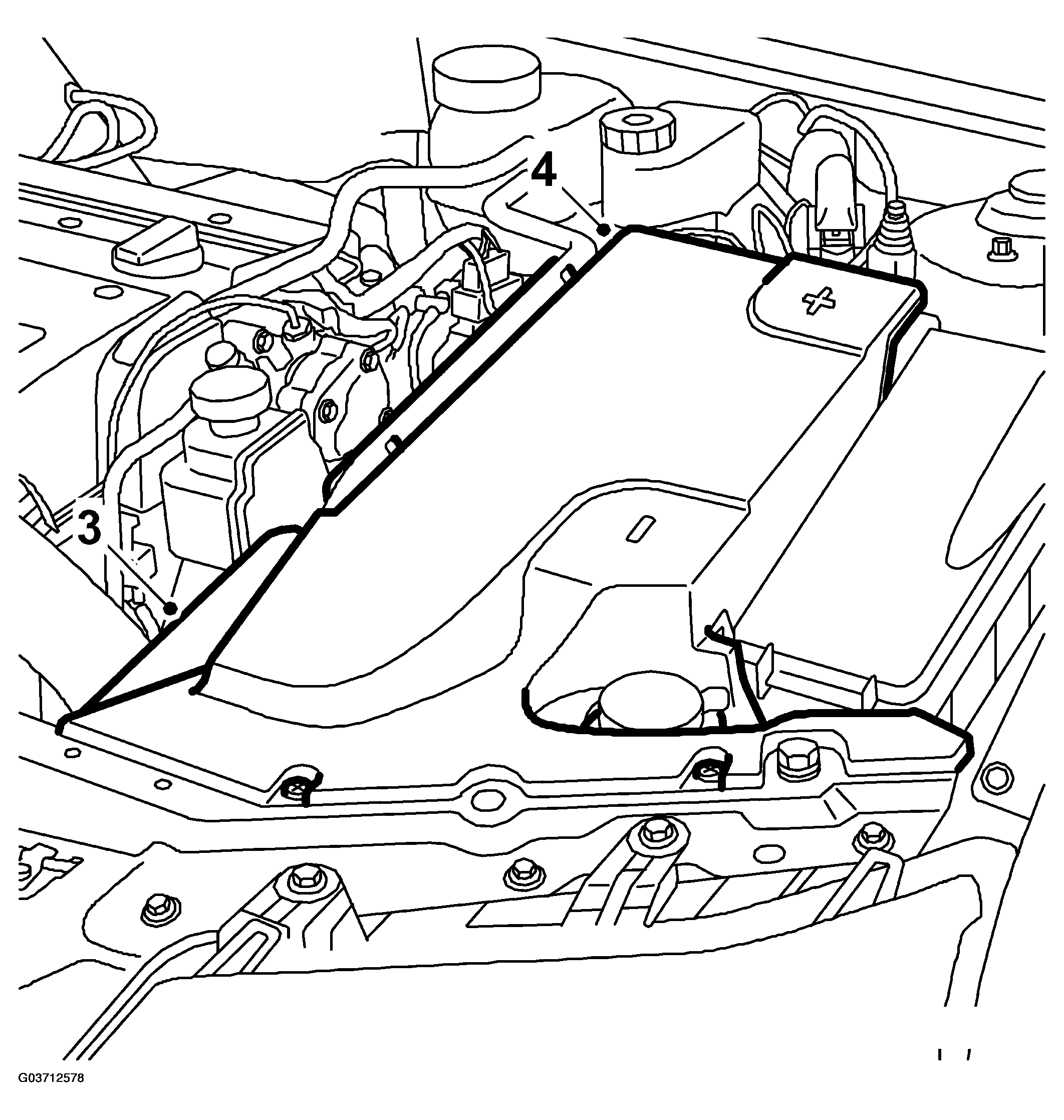

- Fit the battery cooling pipe.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Fit the battery cover.
- Perform PROCEDURES AFTER FITTING THE CONTROL MODULE
and service programming, if necessary.
- If a new control module has been fitted, it must be adapted, see ADAPTATION, RESETTING
.
