To remove

  1. Remove the subframe.
  2. Cut away the rubber from the bush.

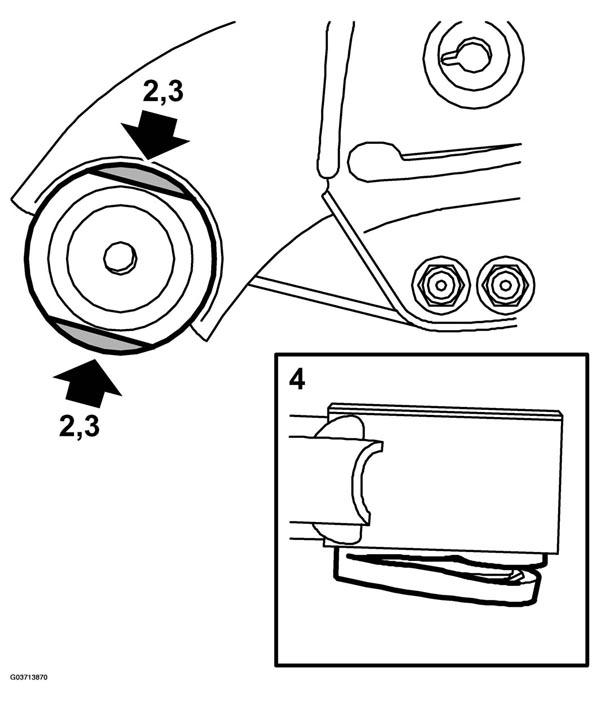

    Fig 1: Illustration For Steps 2-4
    G03713870Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Saw or cut a groove on either side. Break off the flange from the bush to make room for the support.
  4. Cut away the rubber edge protruding from the underside of the bush.
  5. Remove the bush using a pull rod 907 and press sleeve KM 907-14 from 89 96 779 SET OF PRESS SLEEVES, FRONT ASSEMBLY  and a support from 89 96 902 SUBFRAME BUSH SET

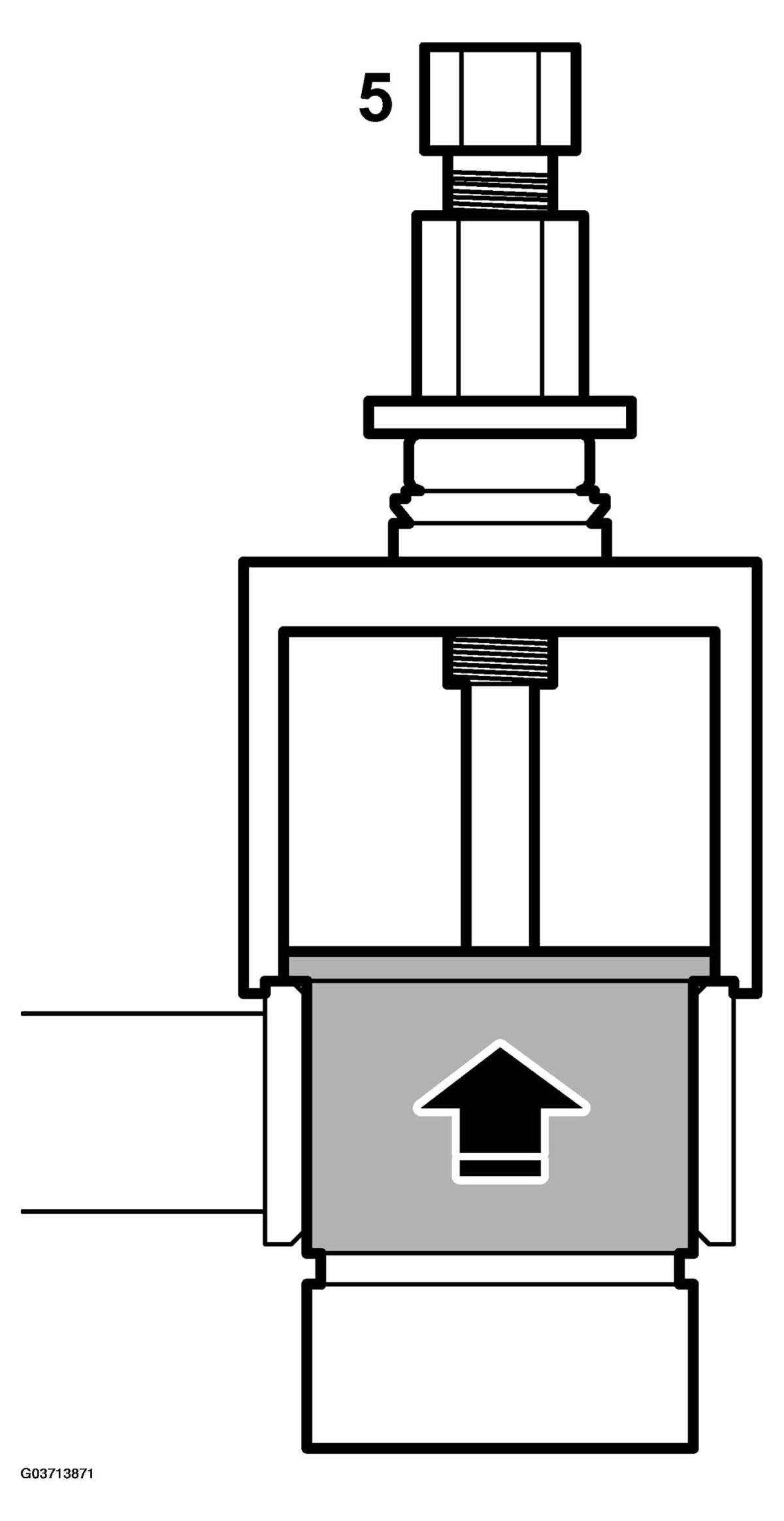

    Fig 2: Illustration For Step 5
    G03713871Courtesy of SAAB-SCANIA OF AMERICA, INC.
