Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Adjustment/Replacement >> Power steering pump, B207 petrol engine >> To remove

To remove

  1. Detach the return hose, wipe up any fluid spill with a cloth and plug the reservoir pipe using 82 92 955 Plugs, spare part kit. Suspend the hose so that fluid does not run out.

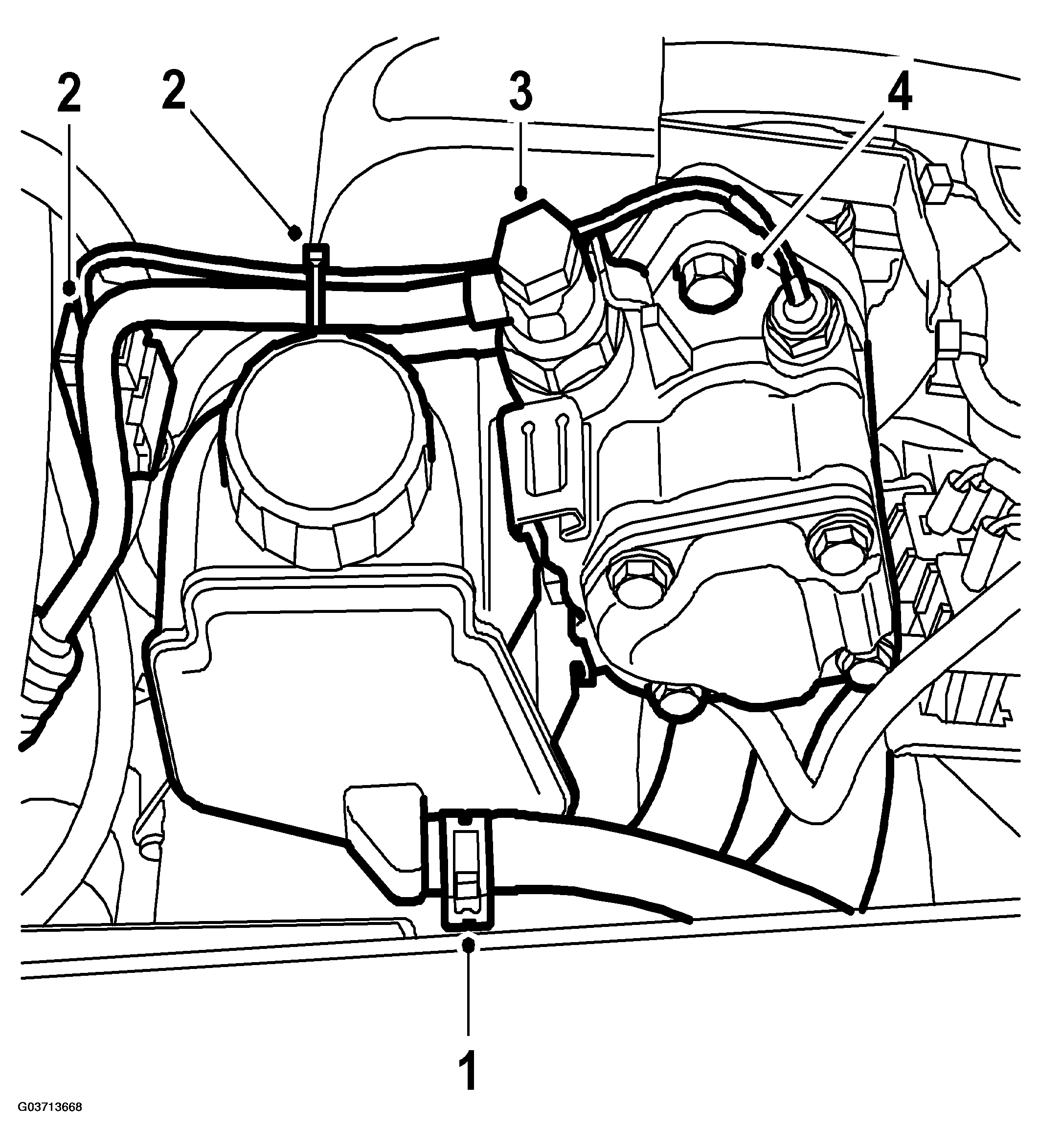

    Fig 1: Illustration For Step 1-4
    G03713668Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Cut off the cable tie holding the pressure sensor cable to the delivery pipe. Unplug the pressure sensor's electrical connection.
  3. Remove the delivery pipe from the pump. Wipe up any oil spill with a cloth.
  4. Remove the pump. Some engine oil may run out.
  5. Empty the fluid from the pump.
