Wheel speed sensor, front (298FL, FR): Connection

CONNECTOR PINOUTS REFERENCE

Pin no.	Type of signal	Description
1	Power supply	From TCS/ESP control module
2	Signal	Approximately +0.85 and + 1.85 V with the sensor connected

Overview

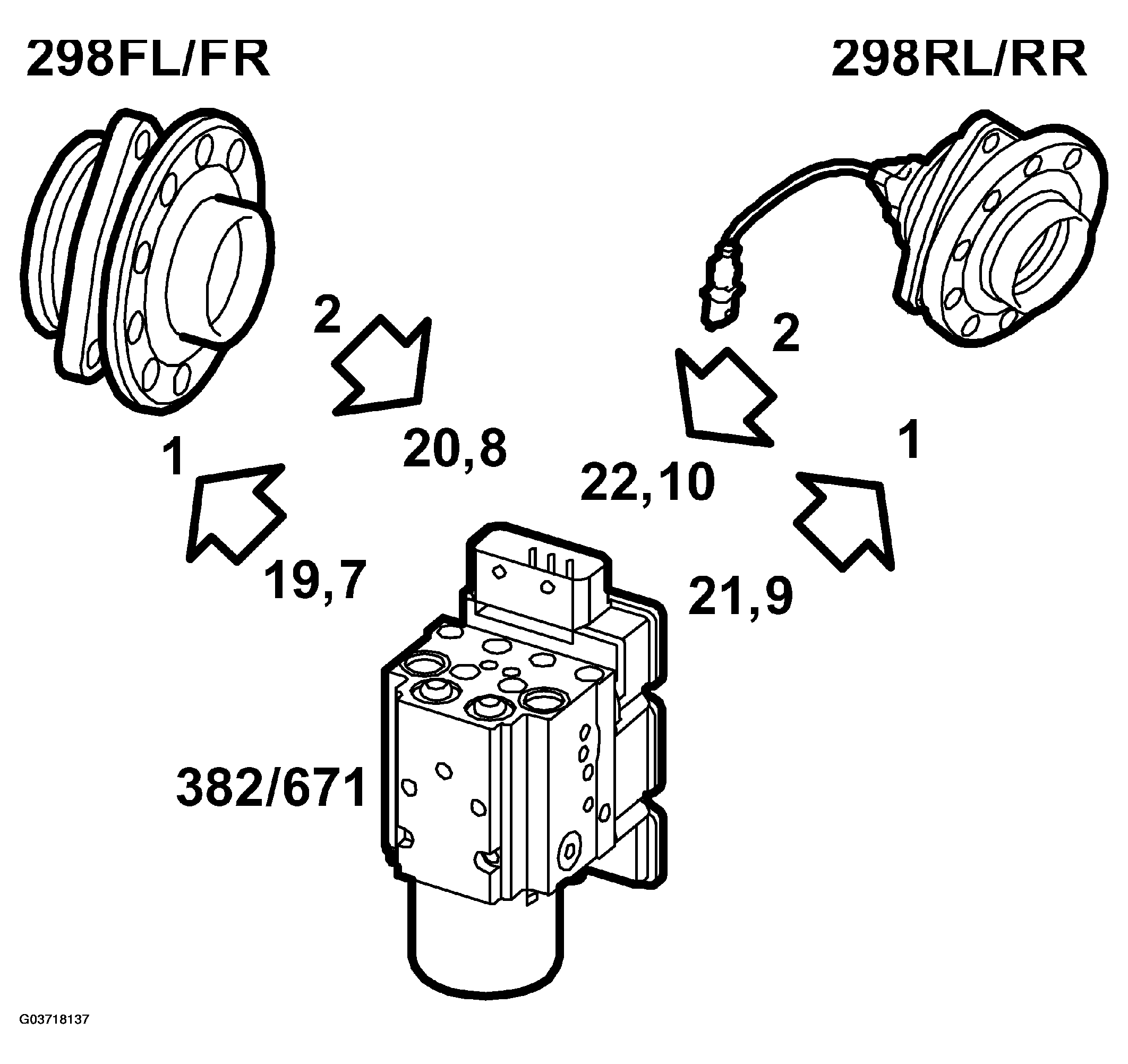

Fig 1: Identifying Communication Flow Wheel Speed Sensor FL/FR And RL/RR
Courtesy of SAAB-SCANIA OF AMERICA, INC.
298 FL

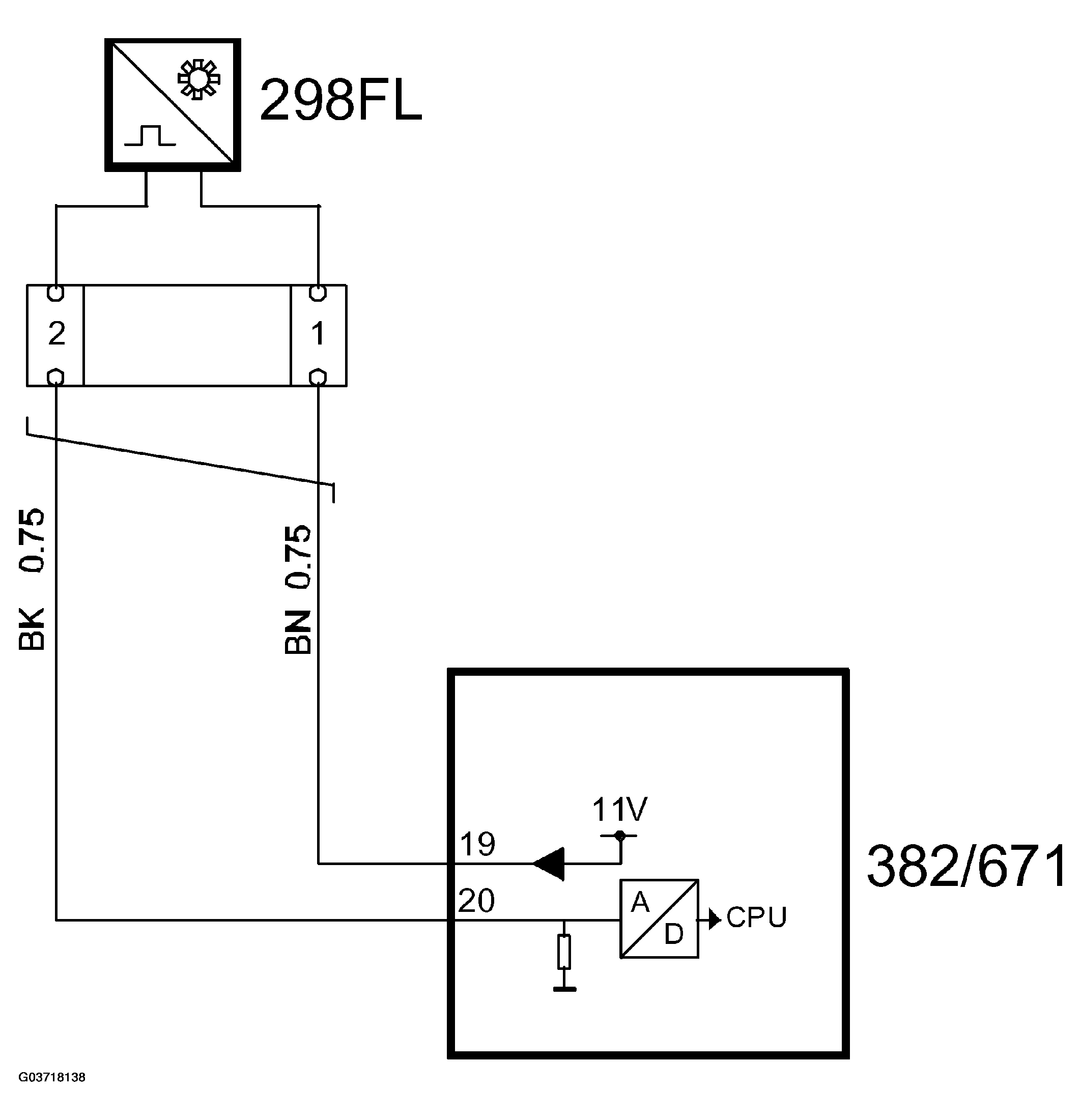

Fig 2: Circuit Diagram Wheel Speed Sensor FL
Courtesy of SAAB-SCANIA OF AMERICA, INC.
298 FR

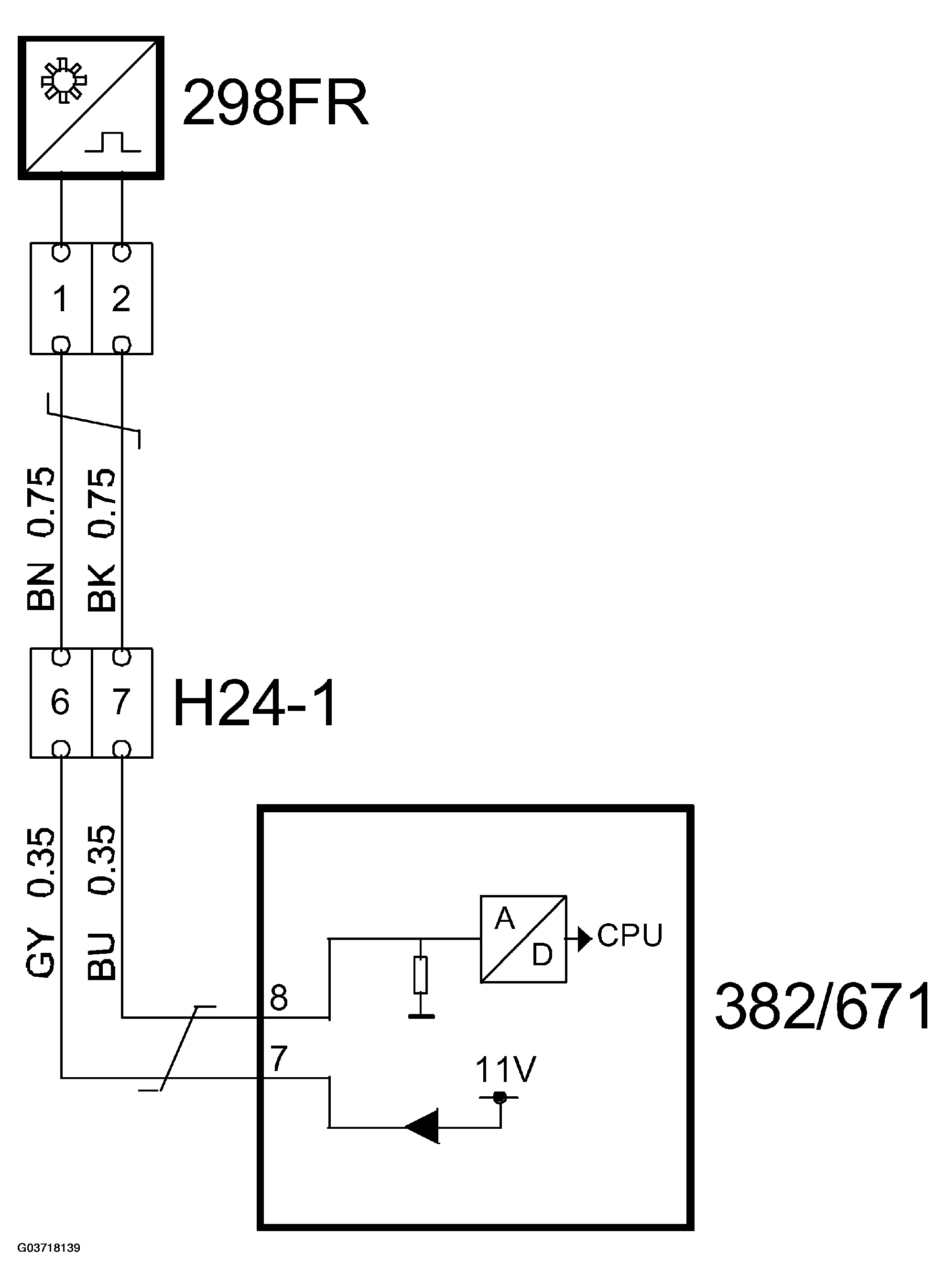

Fig 3: Circuit Diagram Wheel Speed Sensor FR
Courtesy of SAAB-SCANIA OF AMERICA, INC.
