Washer fluid level switch (195): Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Ground	Level switch's ground in the body.
2	Signal	To UEC pin 14 (F), the pin is grounded at low level when the switch is closed

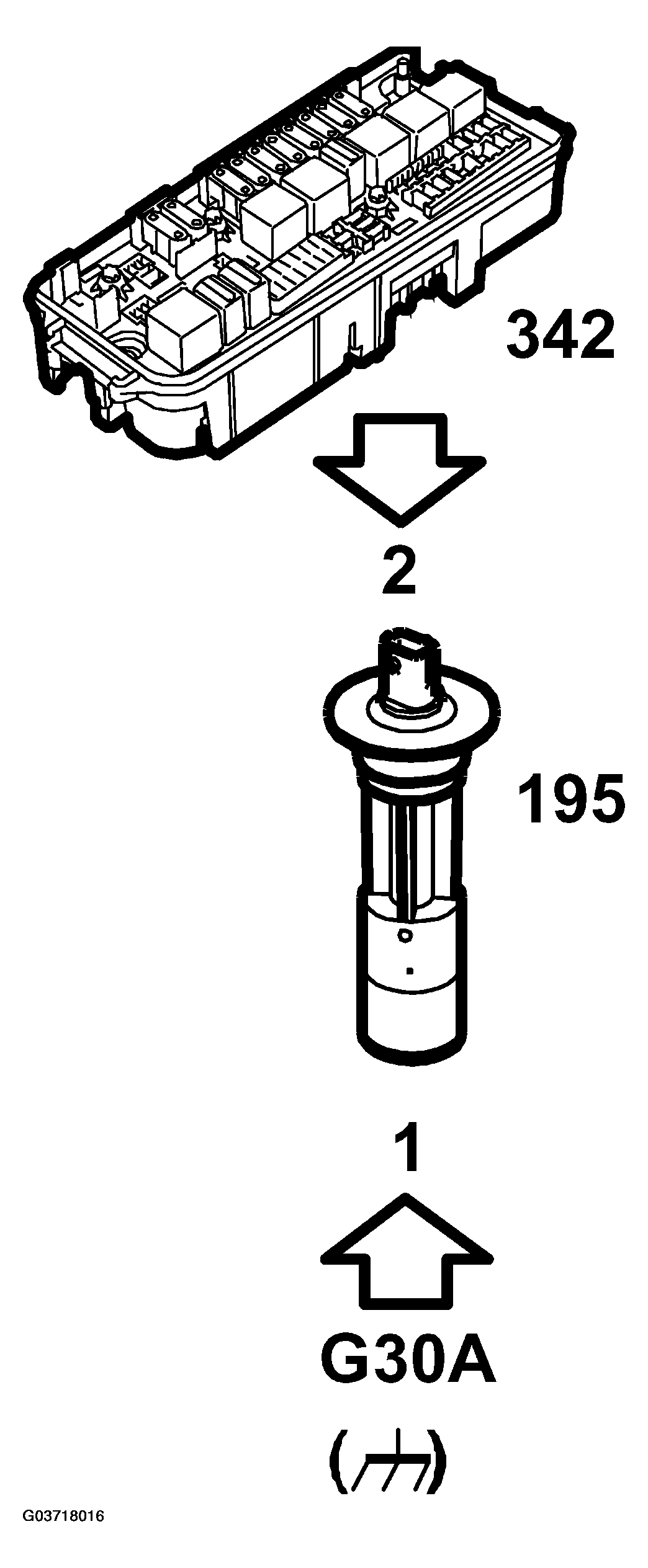

Fig 1: Identifying Communication Flow - Washer Fluid Level Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

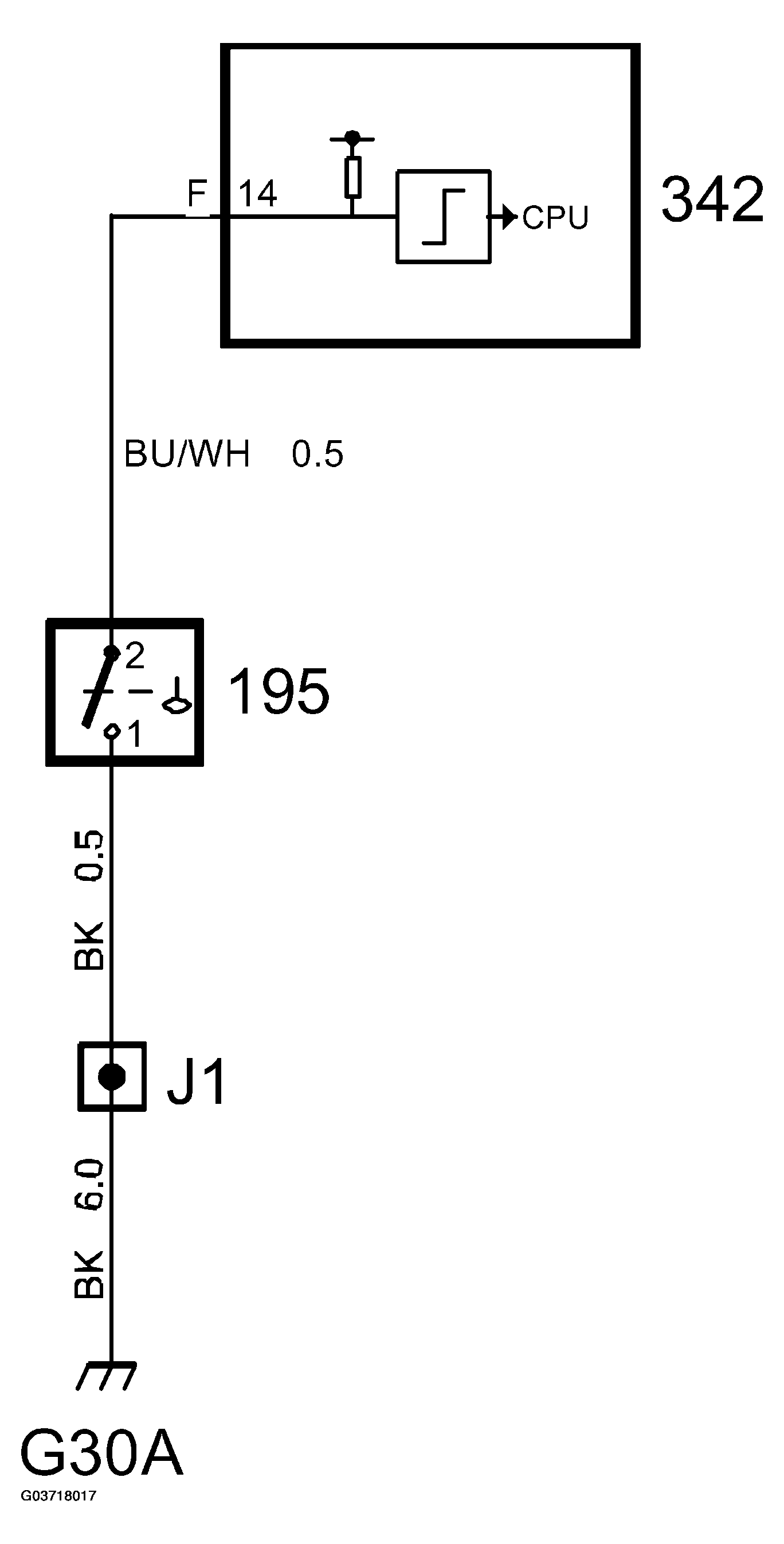

Fig 2: Circuit Diagram - Washer Fluid Level Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.
