Signal detector (755)
>>
Engaging
Signal detector (755): Engaging

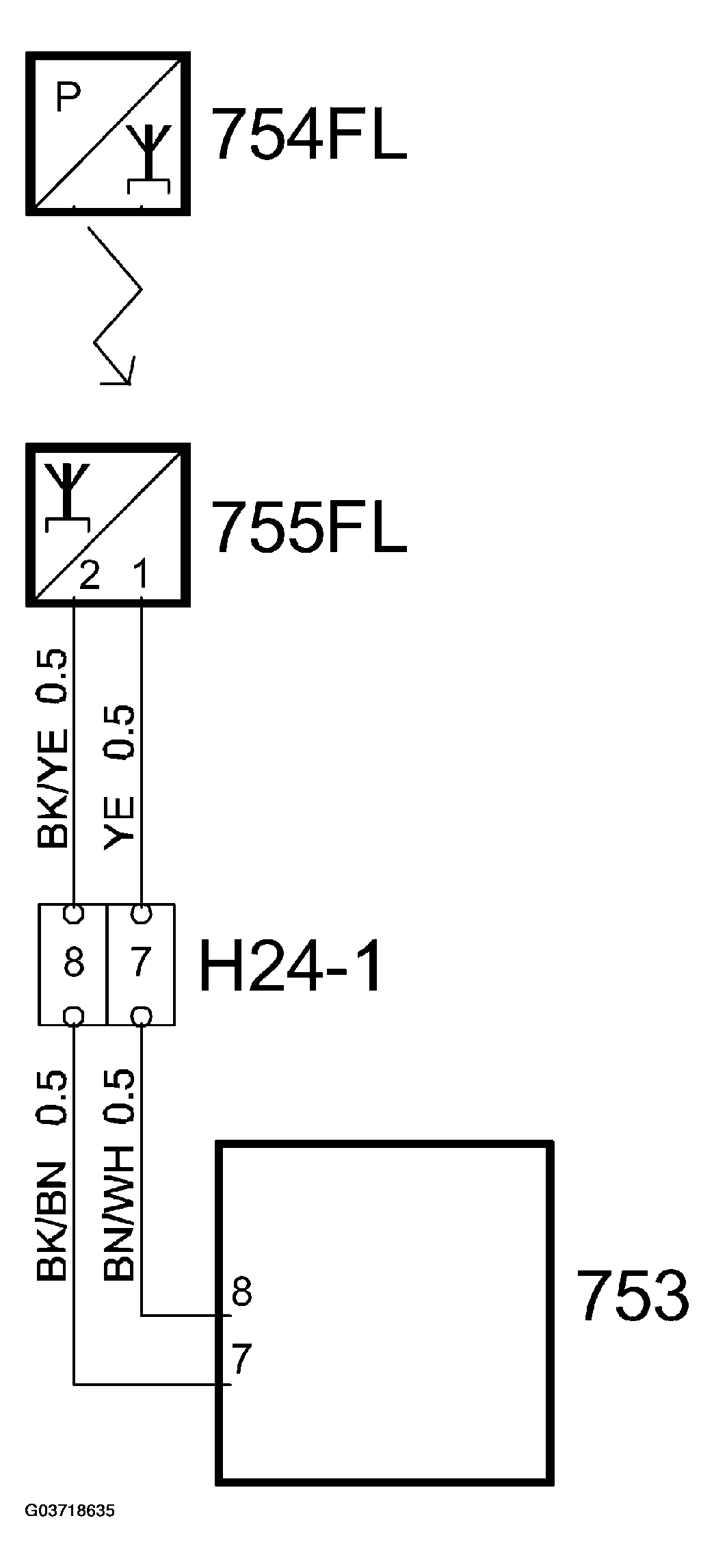

755FL
Fig 1: Circuit Diagram - Signal Detector (755FL)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

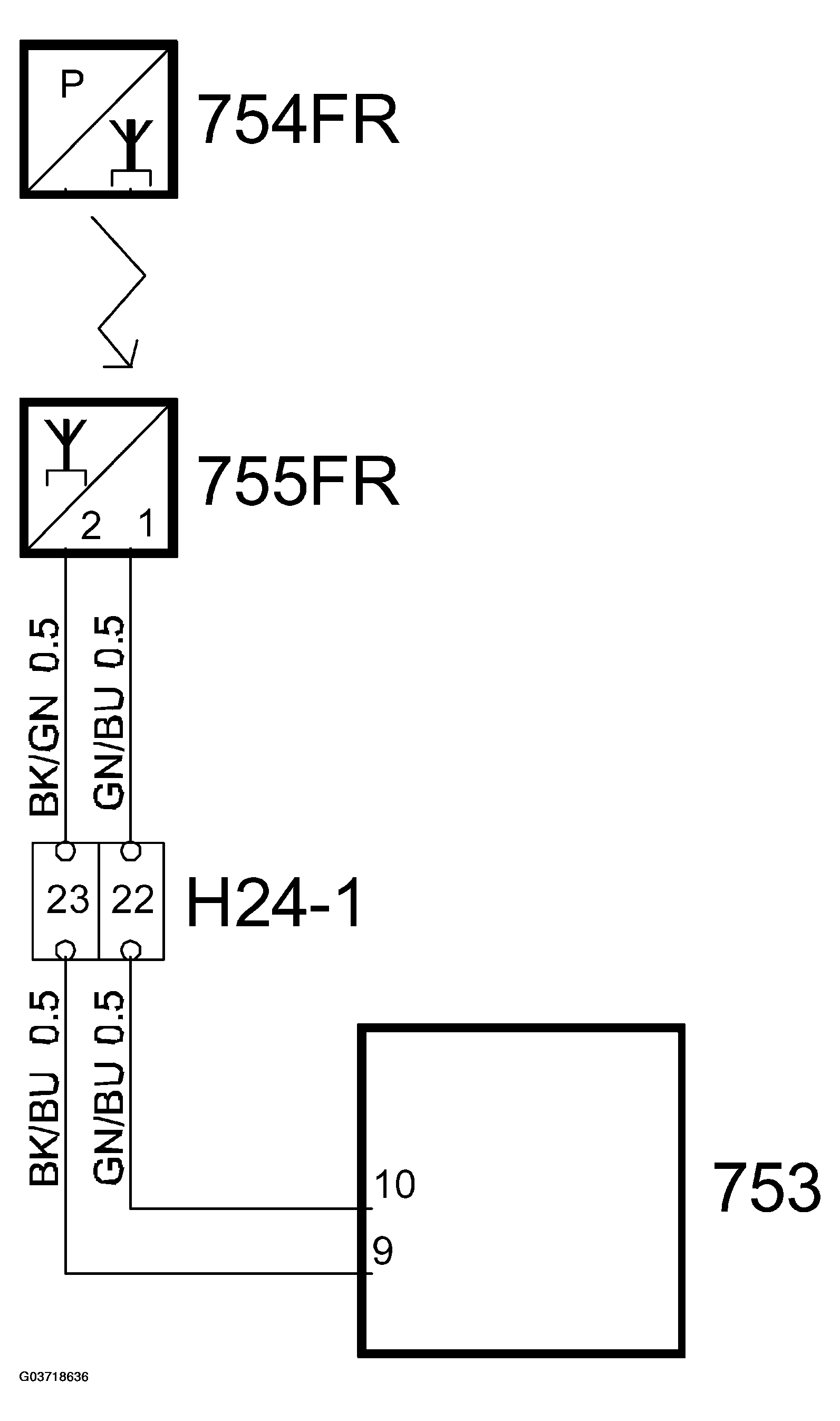

755FR
Fig 2: Circuit Diagram - Signal Detector (755FR)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

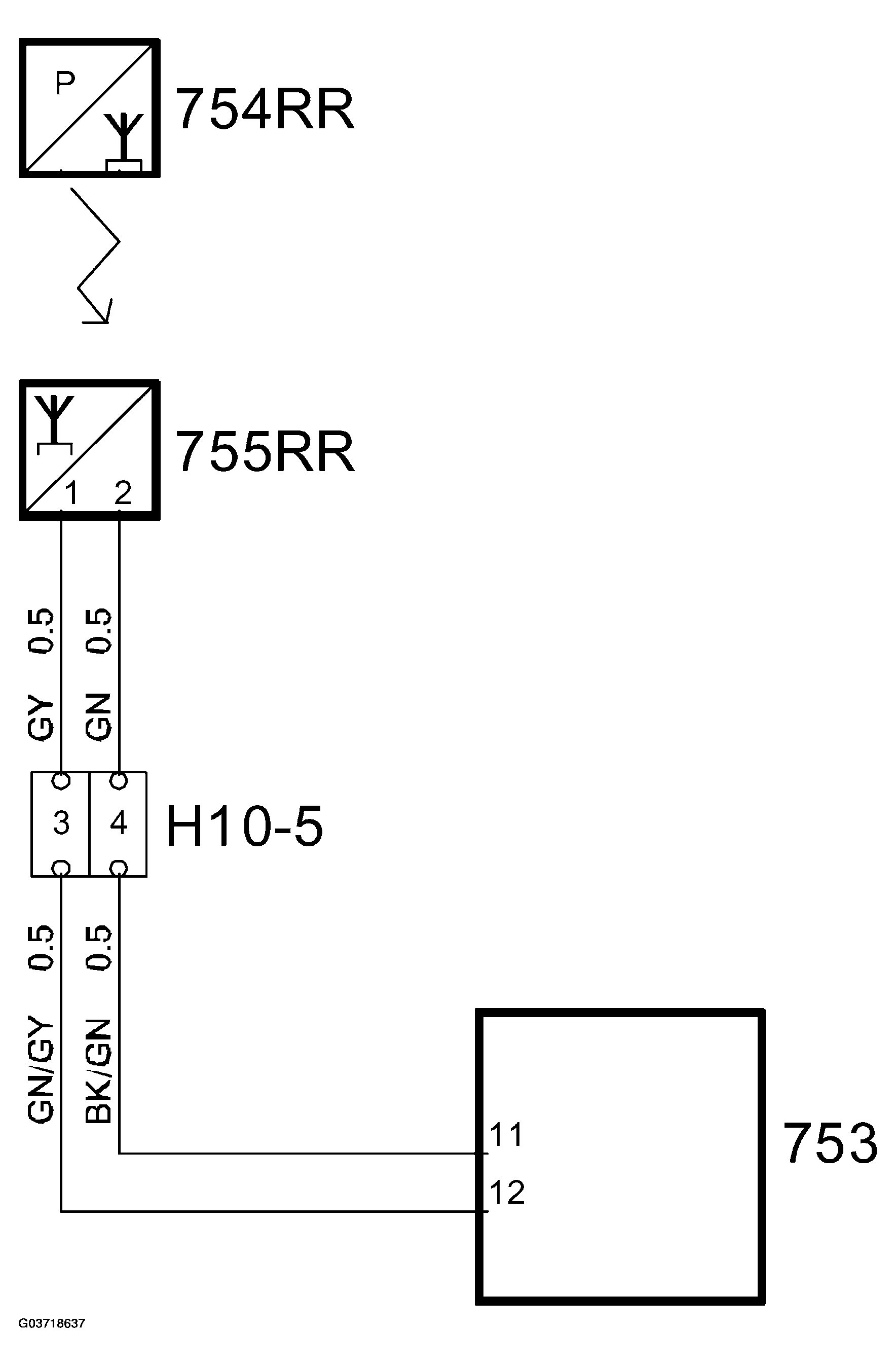

755RR
Fig 3: Circuit Diagram - Signal Detector (755RR)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
CONNECTOR PINOUTS REFERENCE
Pin
Connection
1
Power supply, 5V, from tire Pressure Monitoring Module (753)
2
System ground
