Radiator fan motor (37), Simtec: Connection

CONNECTOR PINOUTS REFERENCE

Pin No. Signal type Description
1 Power supply Supplied via the relay unit, radiator fans
2 Ground Grounded at G30A

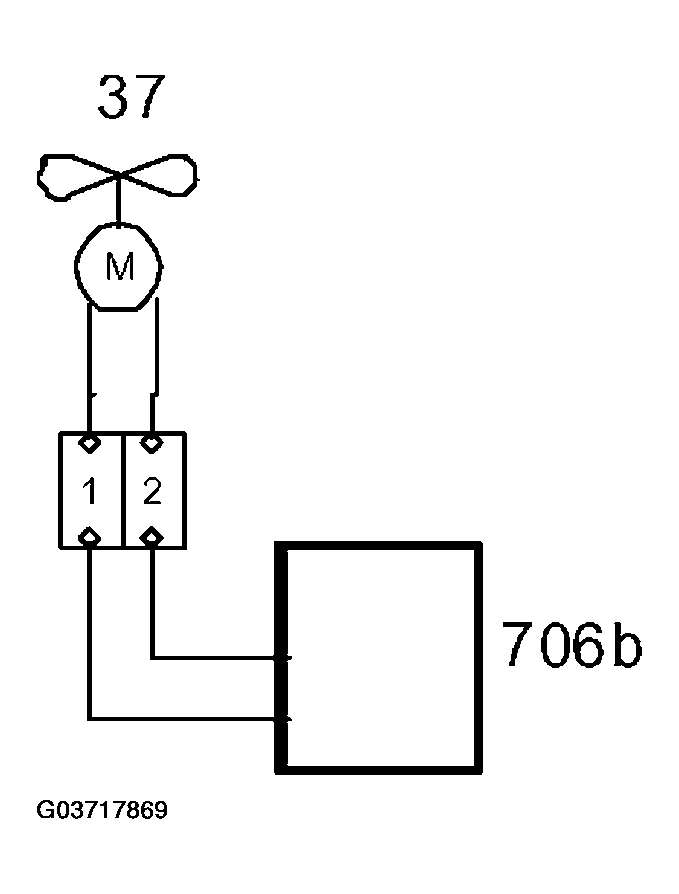

Fig 1: Circuit Diagram - Radiator Fan Motor (37) (Simtec)
G03717869Courtesy of SAAB-SCANIA OF AMERICA, INC.
