Pressure switch, power steering fluid (739): Connection

CONNECTOR PINOUTS REFERENCE

Pin no.	Signal type	Description
1	Signal	The pin is grounded if fluid pressure is low. Connected to ECM pin 22(A).

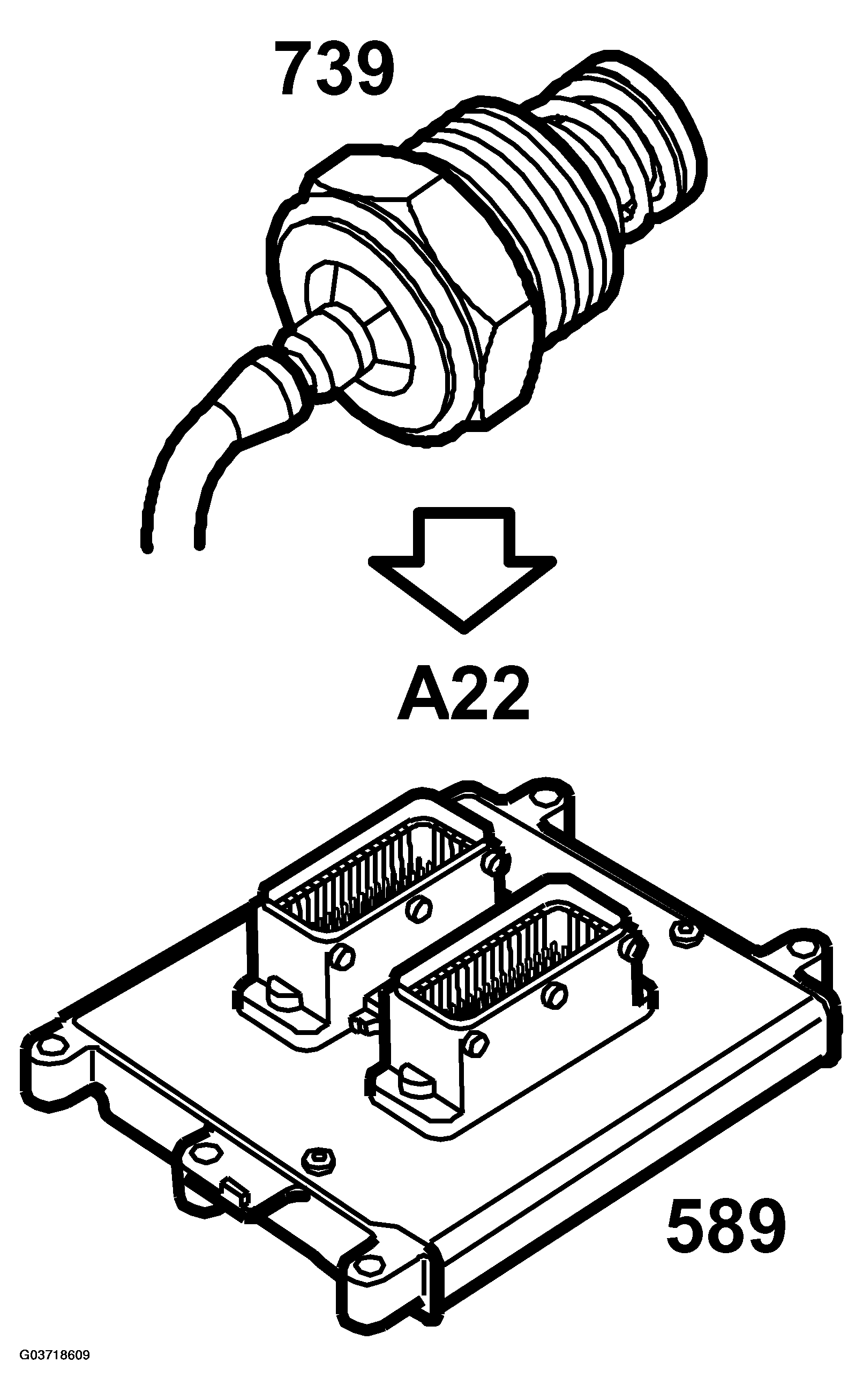

Fig 1: Identifying Communication Flow - Power Steering Fluid Pressure Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

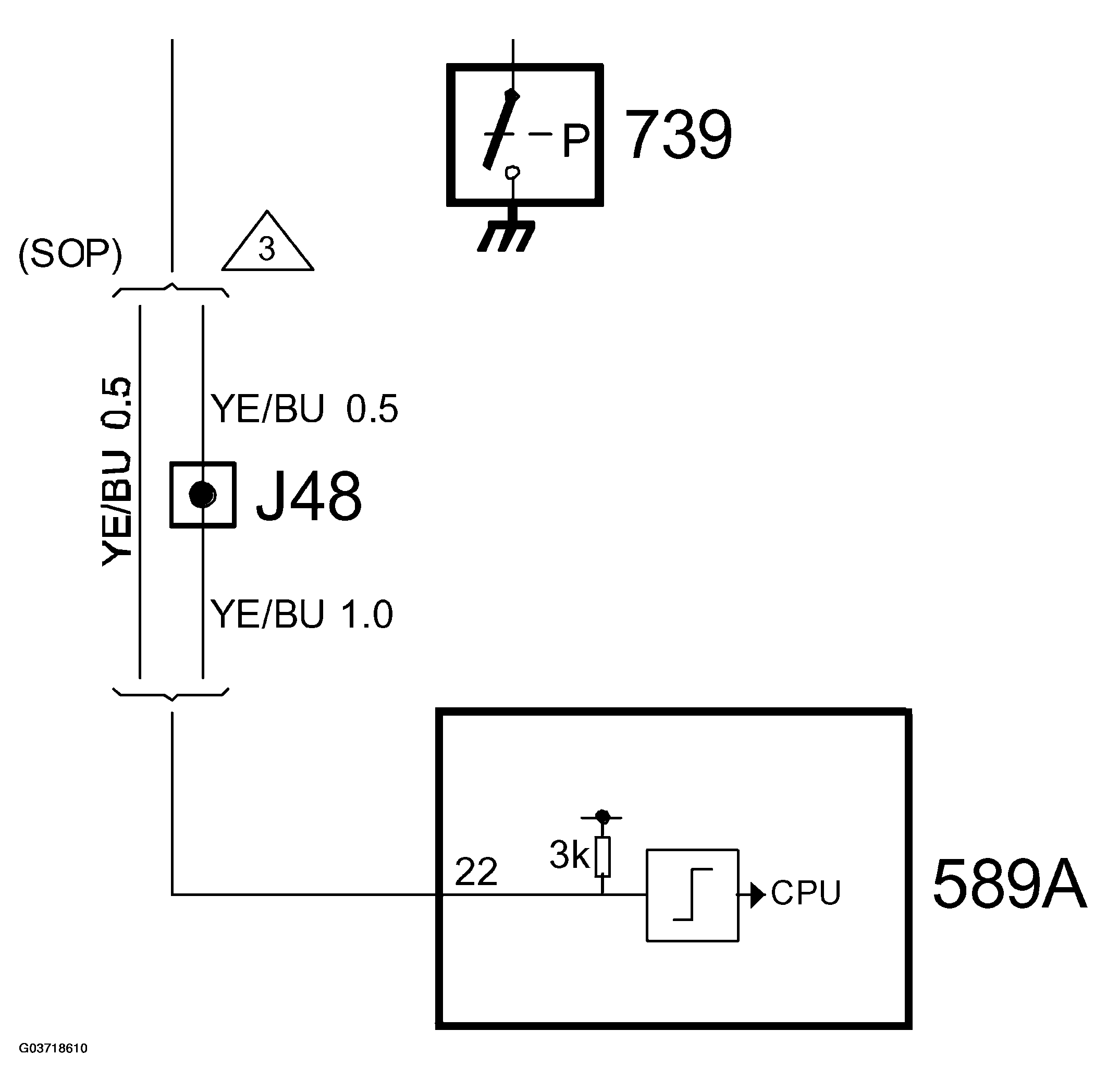

Fig 2: Circuit Diagram - Power Steering Fluid Pressure Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.
