Pressure sensor, A/C (620) PSG16: Connection: PSG16

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
A	Ground	Connected to ECM pin 8(K).
B	Power supply, 5 V	Connected to ECM pin 31(K).
C	Signal	Connected to ECM pin 52(K).

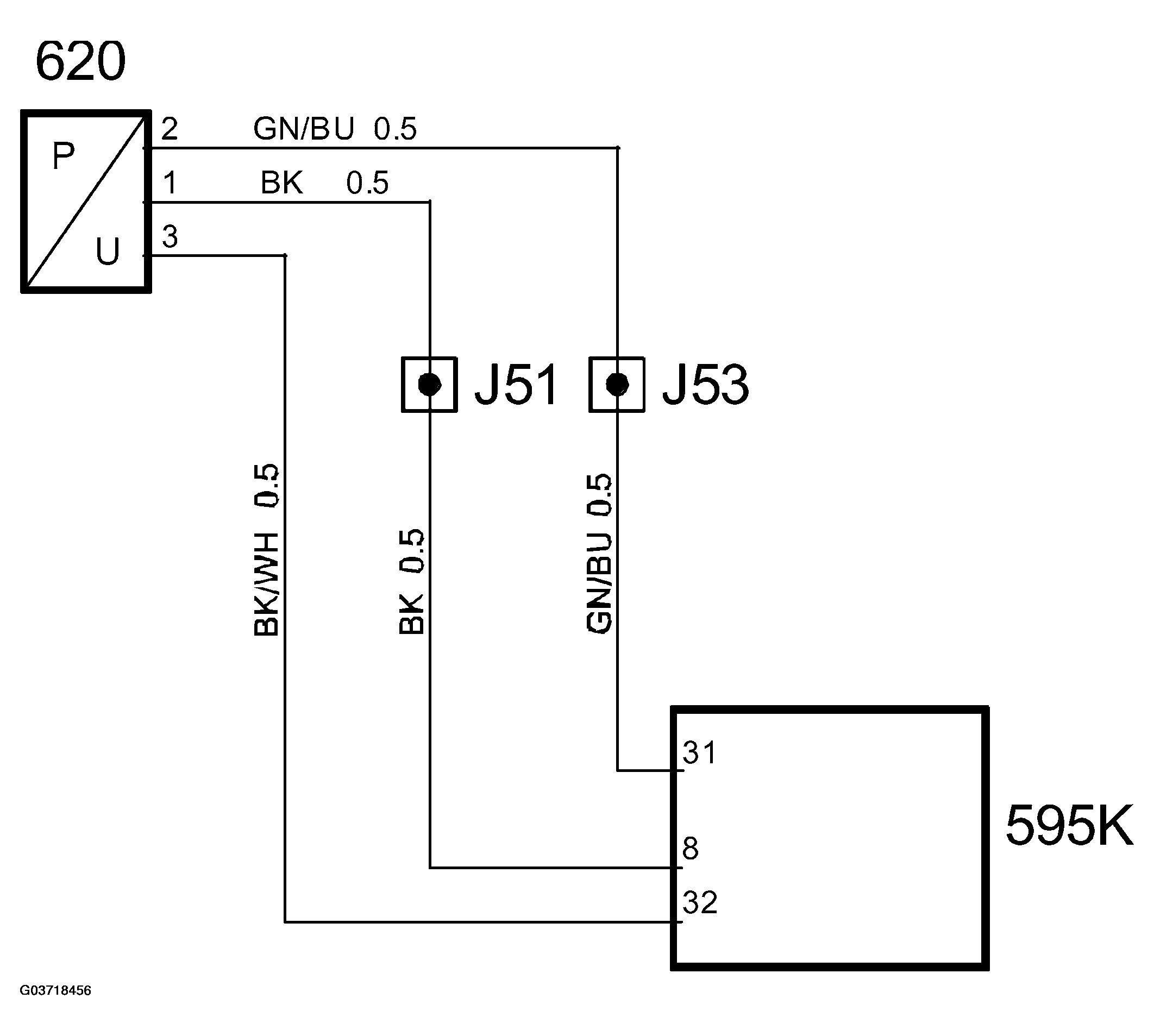

Fig 1: Identifying Communication Flow - A/C Pressure Sensor (PSG16)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
