Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Quick Lookups >> Electrical Component Locations >> Component Locations >> Technical Description >> Position sensor, soft top lowered (577o) >> Main task >> Raised

Main task: Raised

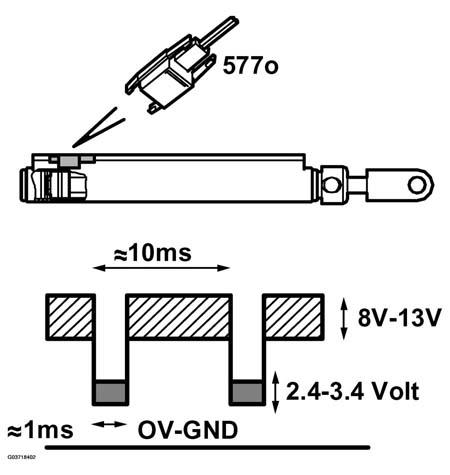

Fig 1: Identifying Position Sensor (Soft Top Lowered (Raised))

G03718402

Courtesy of SAAB-SCANIA OF AMERICA, INC.
