Main task: Open

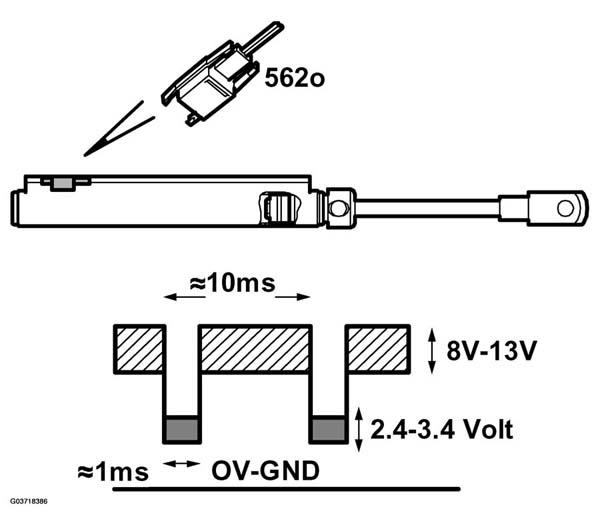

Fig 1: Identifying Position Sensor (Soft Top Lowered (Open))

G03718386

Courtesy of SAAB-SCANIA OF AMERICA, INC.
