Position sensor, soft top lowered (562o): Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
2	Power supply B+	From the control module, STC
3	Signal output	Soft top cover open (sensor affected) = 0.4-1.2 V Soft top cover not open (sensor unaffected) = 2.4-3.4 V

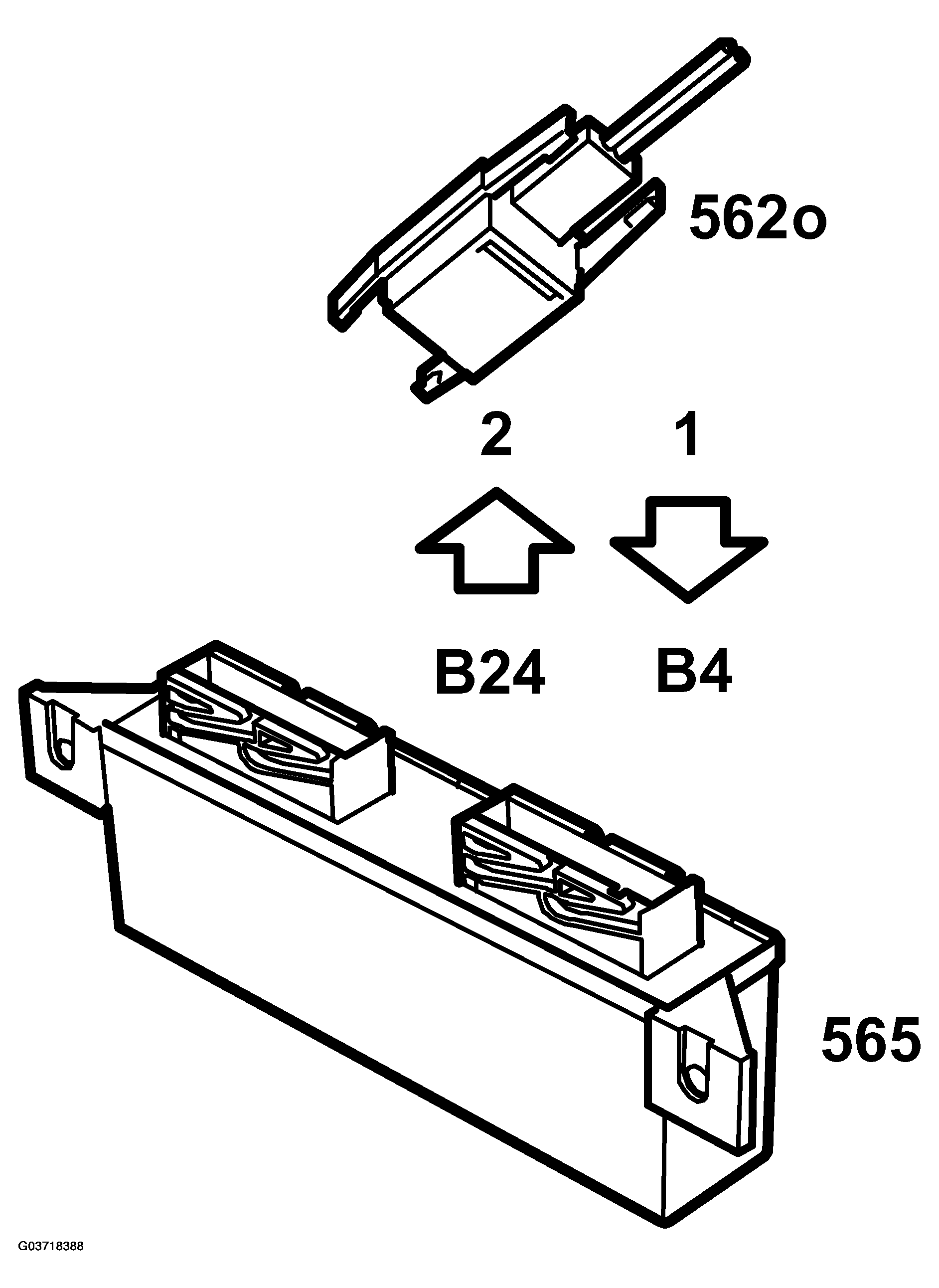

Fig 1: Identifying Communication Flow - Position sensor (soft top lowered (562o))

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information to the STC control module on pin 3 indicating if the soft top cover is open.

The sensor is affected by the cylinder piston. The sensor is affected when the soft top cover is open and the hydraulic piston is in its upper position.

Diagram

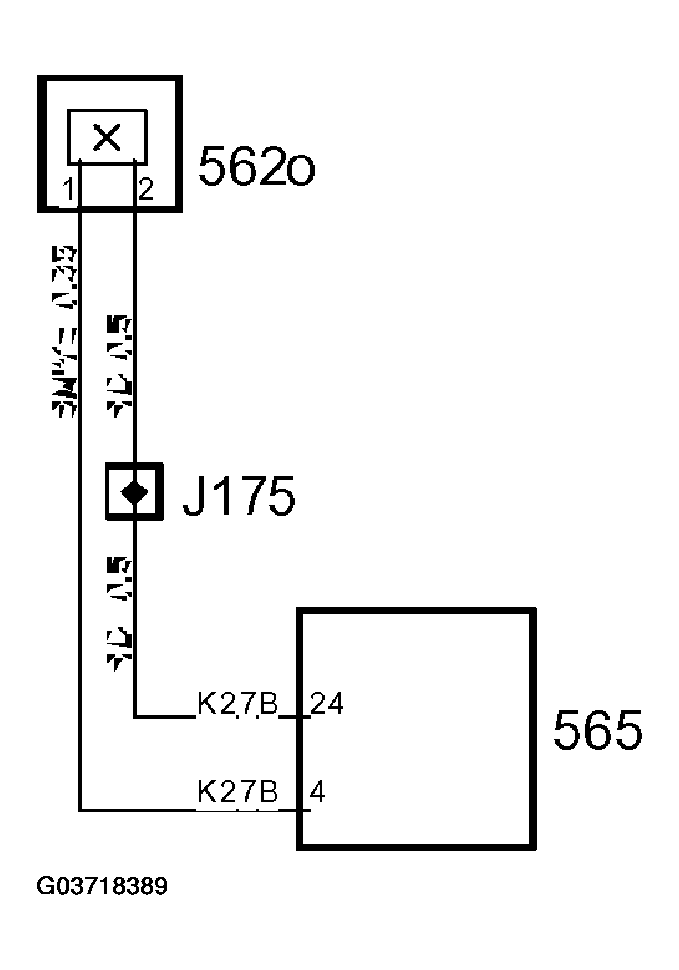

Fig 2: Circuit Diagram - Position sensor (soft top lowered (562o))
