Position sensor, sixth bow raised, (578u): Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
2	Power supply B+	From the control module, STC
3	Signal output	Sixth bow not raised (unaffected sensor) = 2.4-3.4 V Sixth bow raised (affected sensor) = 0.4-1.2 V

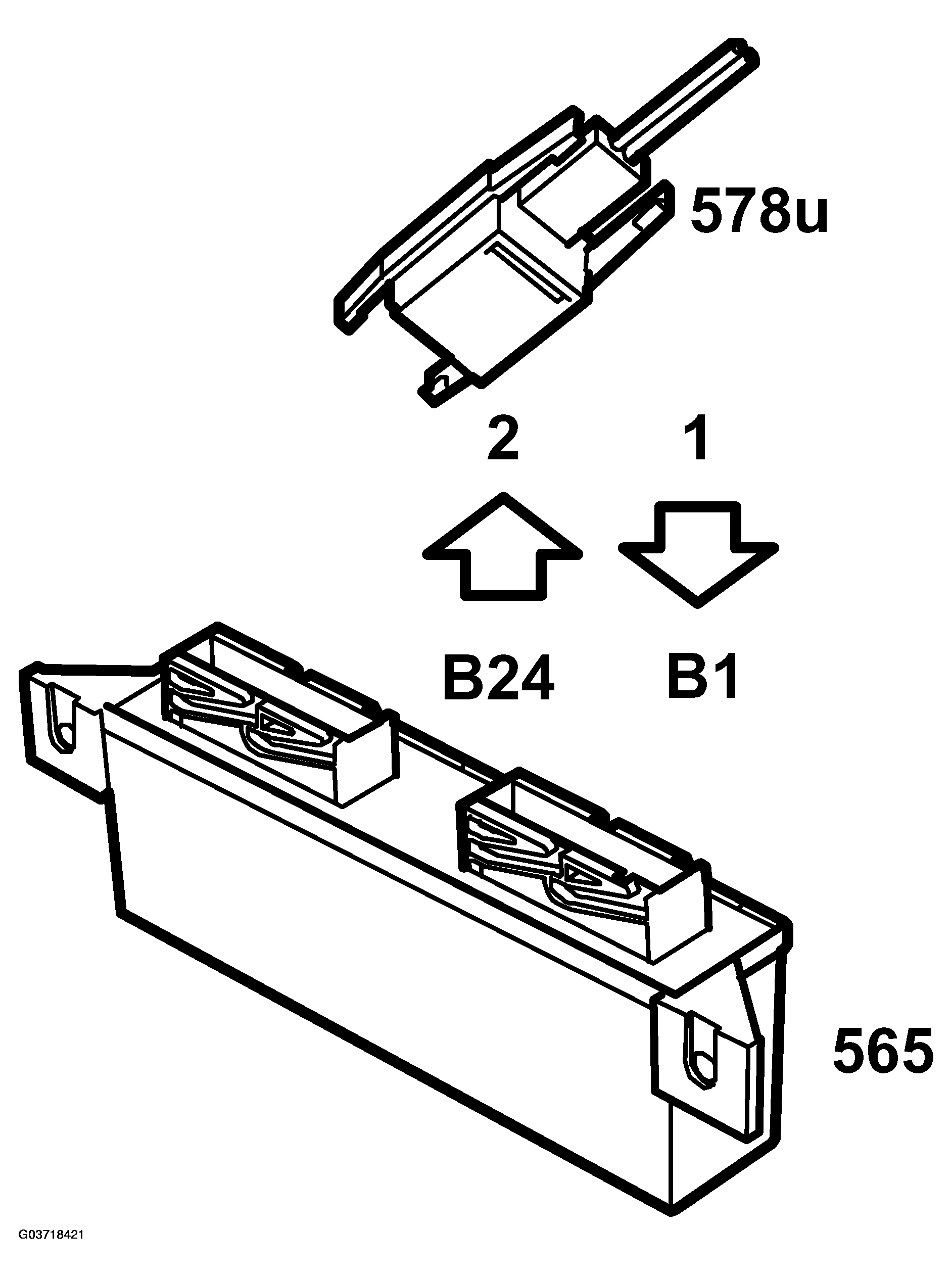

Fig 1: Identifying Communication Flow - Position Sensor (Sixth Bow Raised - 578U)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information to the STC control module on pin 3.

The sensor is affected by the cylinder piston. The sensor is affected when the piston is in its upper position and the sixth bow is raised.

Diagram

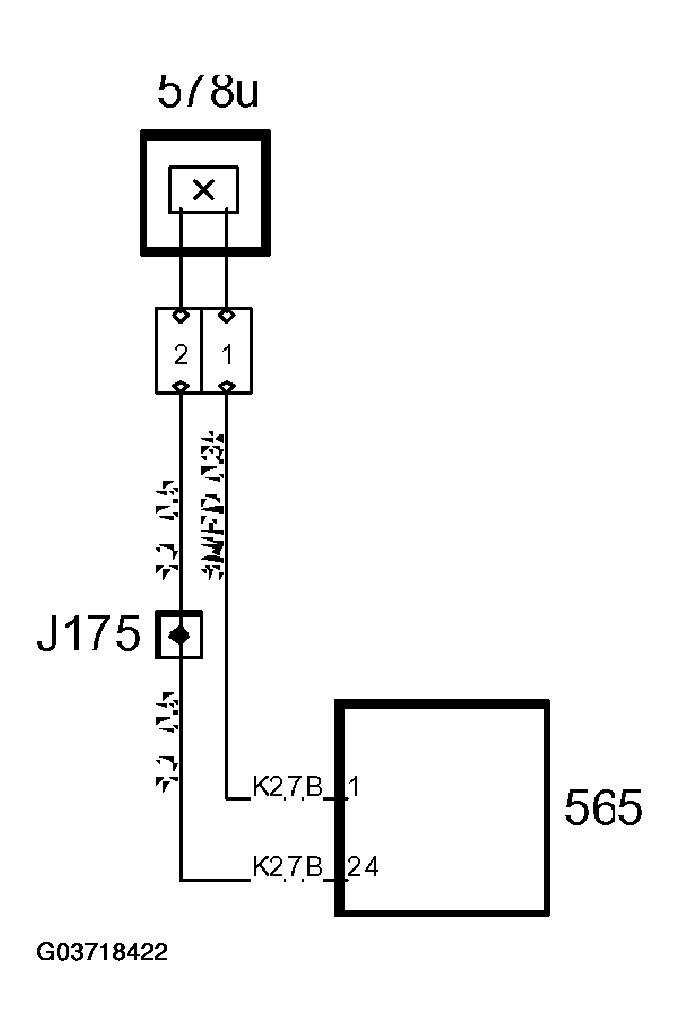

Fig 2: Circuit Diagram - Position Sensor (Sixth Bow Raised - 578U)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
