Position sensor, sixth bow locked, LH (578LH): Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
2	Power supply B+	From the control module, STC
3	Signal output	The sixth bow LH lock is not locked (unaffected sensor) = 2.4-3.4 V The sixth bow LH lock is locked (affected sensor) = 0.4-1.2 V

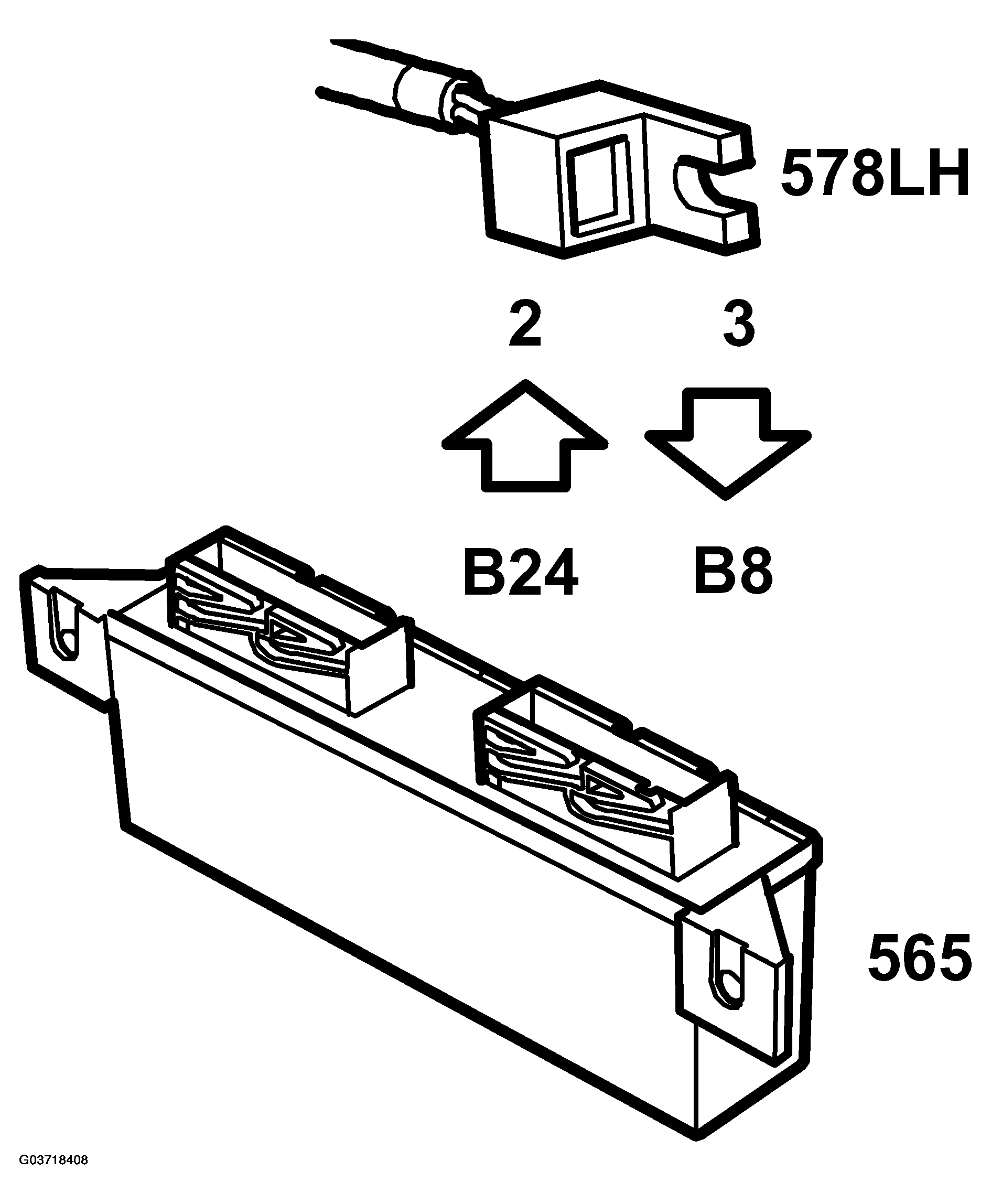

Fig 1: Identifying Communication Flow - Position Sensor (Sixth Bow Locked, LH (578LH))

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information to the STC control module on pin 3.

The sensor is affected by a metal tongue on the sixth bow mechanism. The sensor is affected when the sixth bow is locked on the LH side.

Diagram

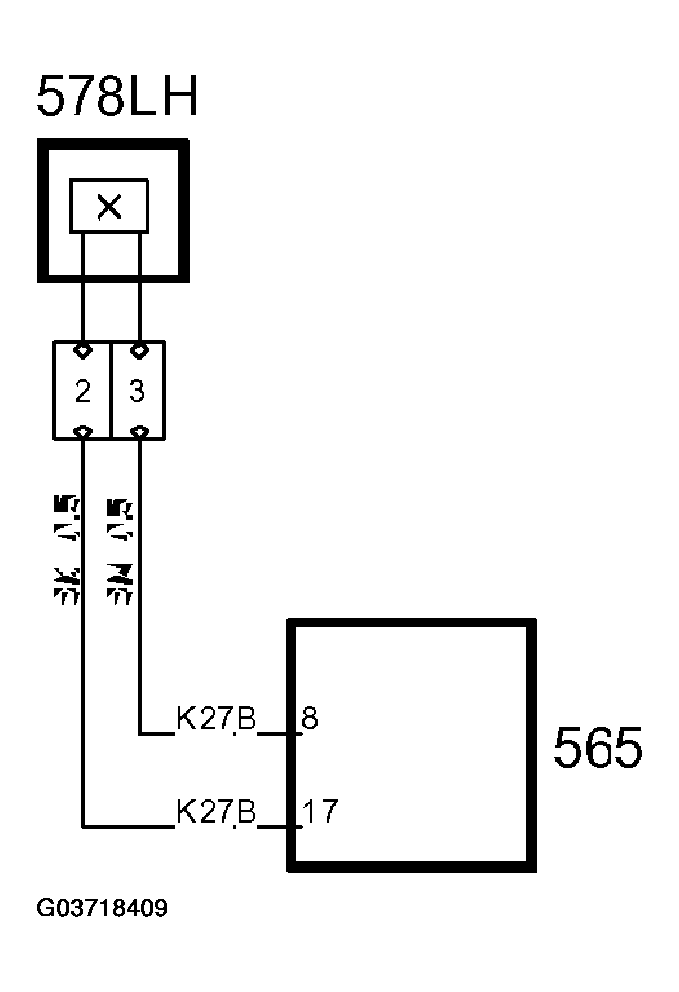

Fig 2: Circuit Diagram - Position Sensor (Sixth Bow Locked, LH - 578LH)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
