Position sensor, seat (669D, 669P): Connection

Driver's seat position sensor B+ feed from control module pin 37. The signal from the sensor is connected to pin 36 on the control module for (669D).

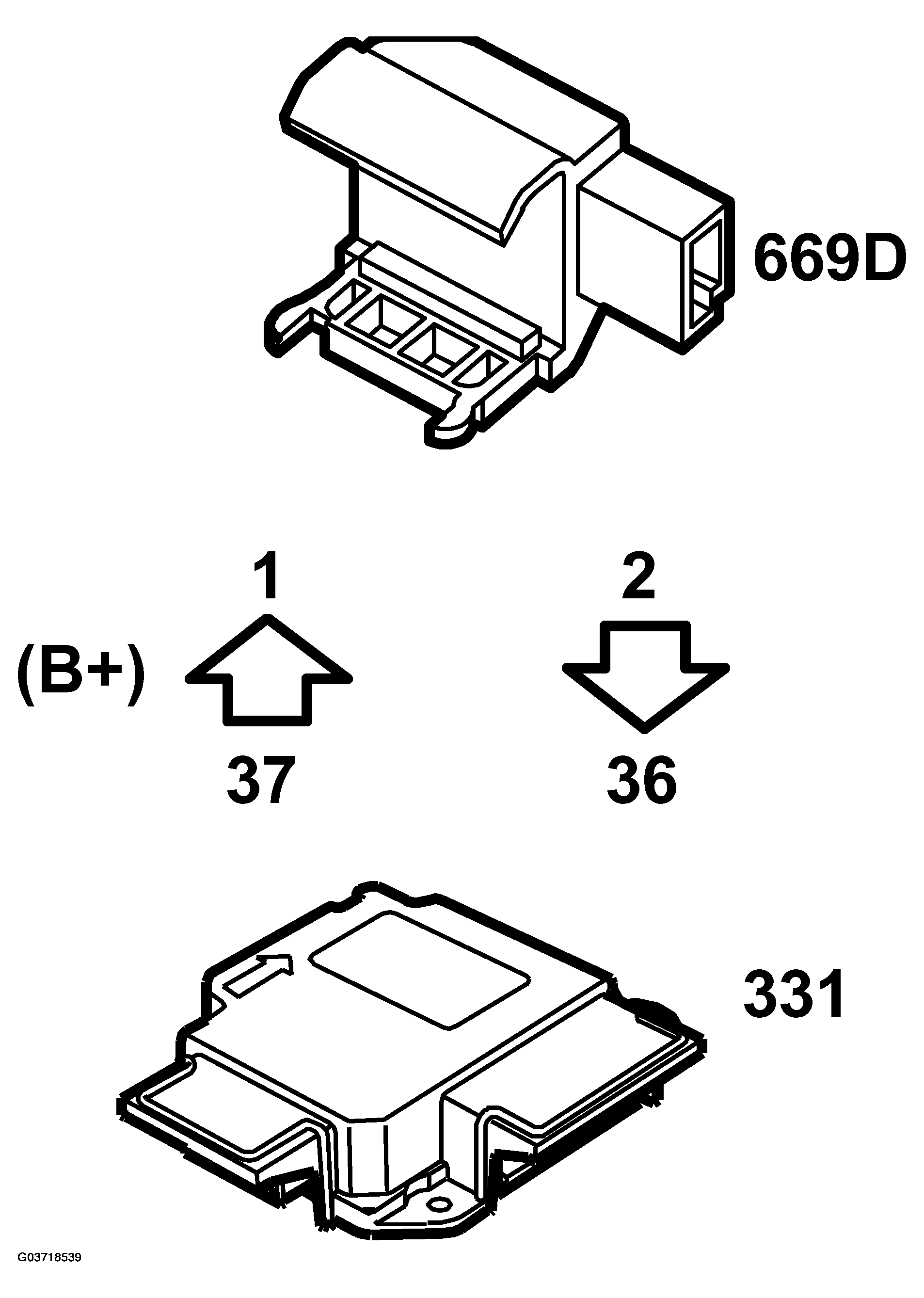

Fig 1: Identifying Communication Flow - Seat Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

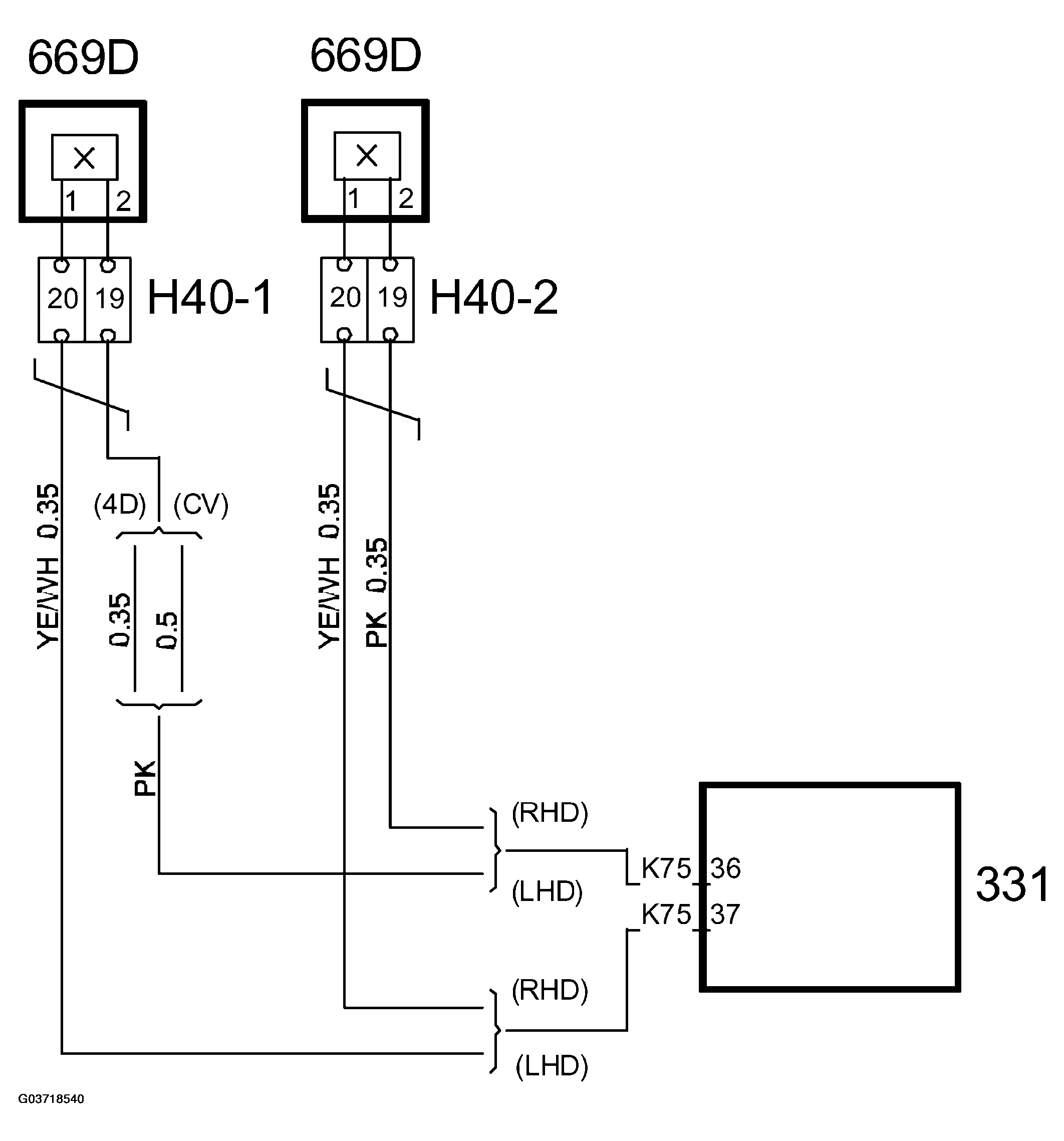

Fig 2: Circuit Diagram - Seat Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Passenger seat position sensor B+ feed from control module pin 38. The signal from the sensor is connected to pin 39 on the control module for (669P).

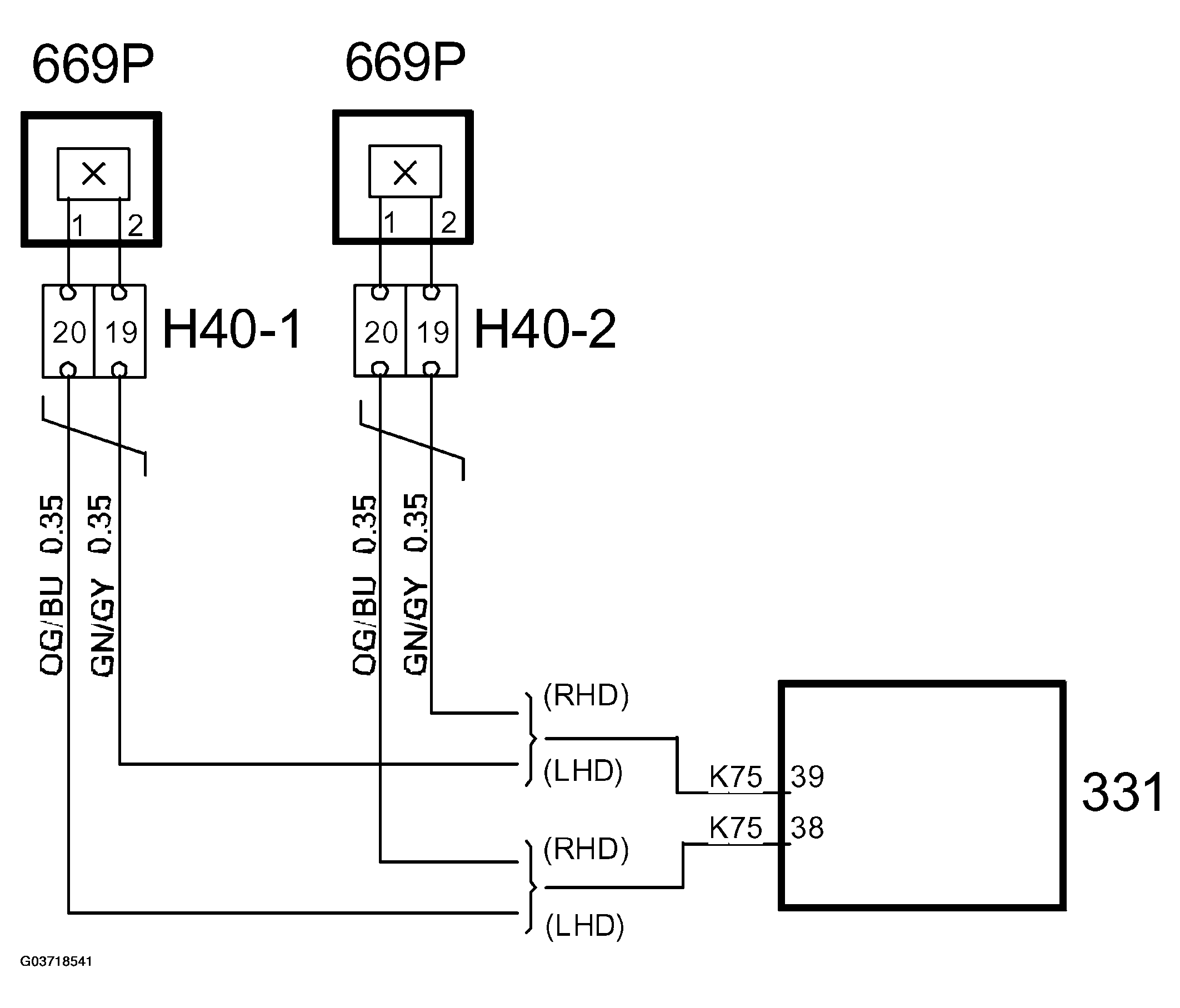

Fig 3: Circuit Diagram - Seat Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.
