Position sensor, first bow ready to lock (561): Connection
CONNECTOR PINOUTS REFERENCE
| Pin | Signal type | Description |
|---|---|---|
| 2 | Power supply B+ | From the control module, STC |
| 3 | Signal output | First bow not ready to lock (sensor not affected) = 2.4-3.4 V First bow ready to lock (sensor affected) = 0.4-1.2 V |

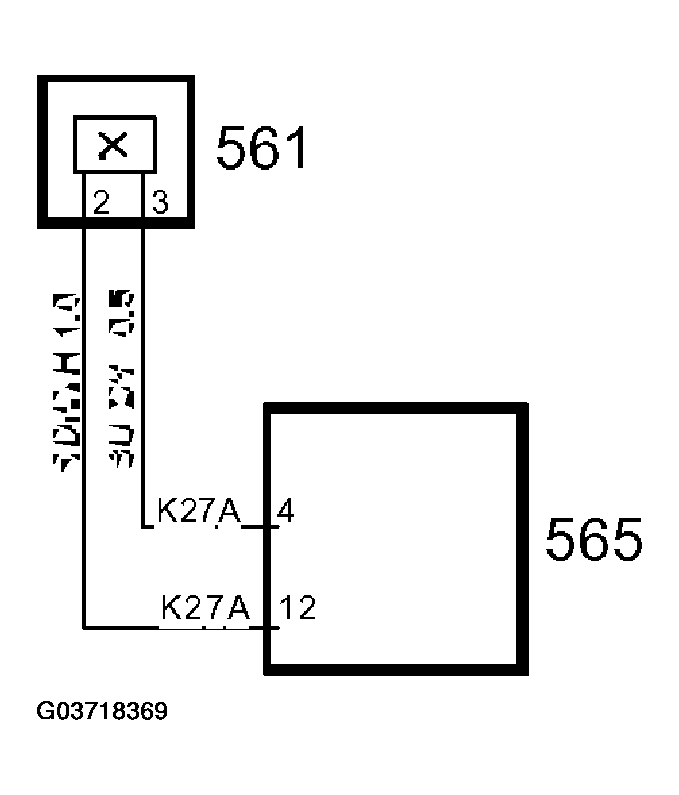

The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information to the STC control module on pin 3.
The sensor is affected by a metal tongue on the LH locking catch on the first bow. The sensor is affected when the first bow is ready for locking.
