Motor, ventilation fan (36), MCC: Connection

The ventilation fan motor is connected to the corresponding MCC fan control unit.

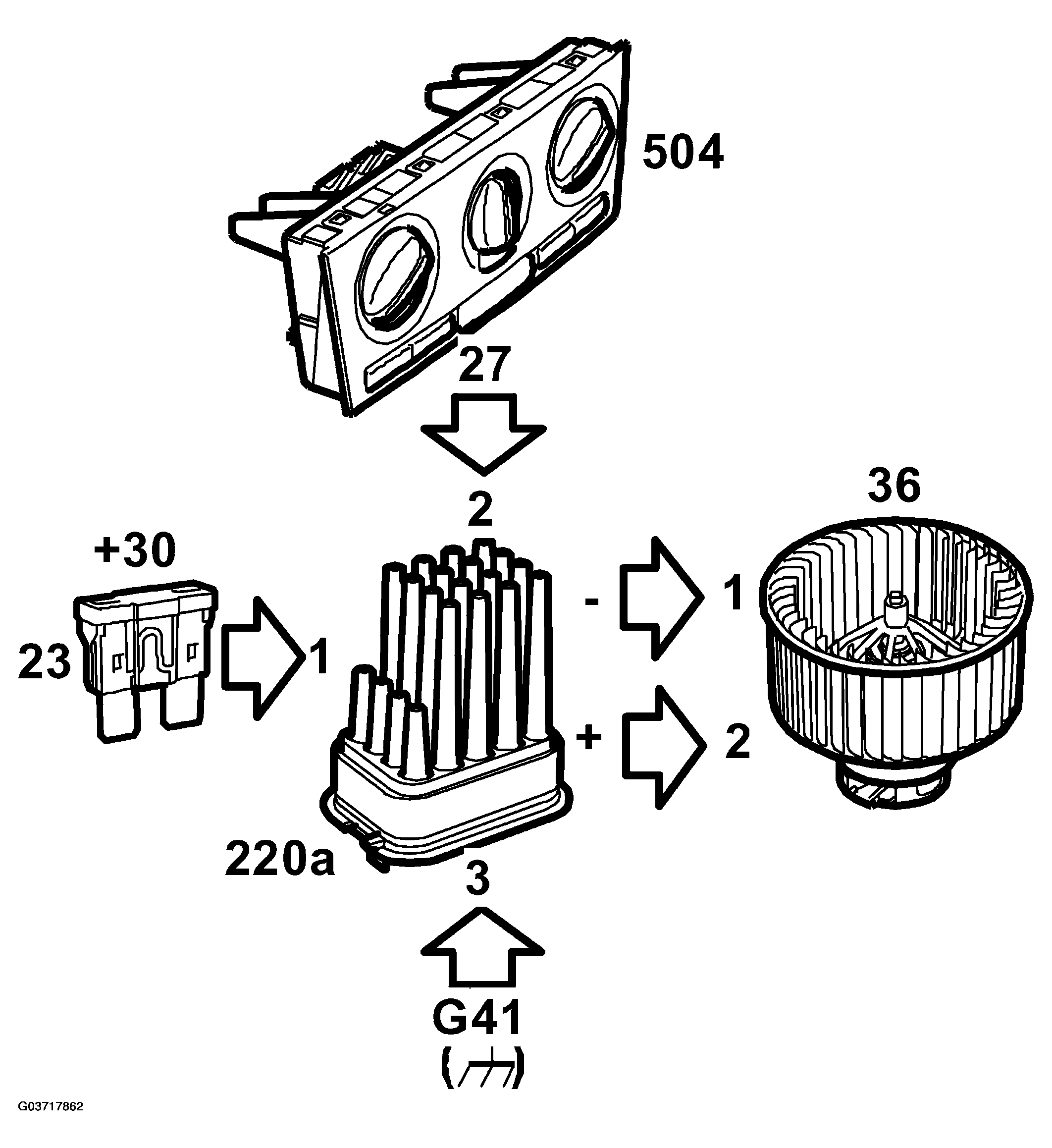

Fig 1: Identifying Communication Flow - Motor, Ventilation Fan (36), MCC

Courtesy of SAAB-SCANIA OF AMERICA, INC.

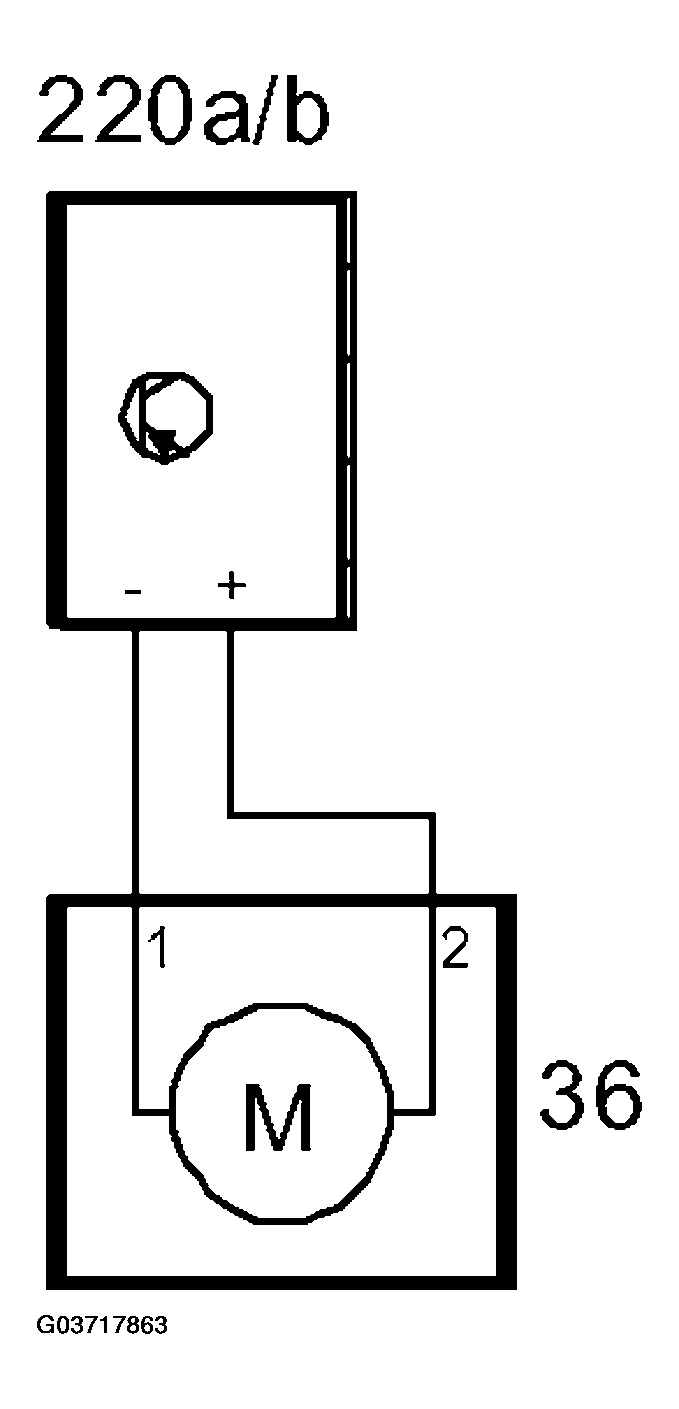

Fig 2: Circuit Flow - Motor, Ventilation Fan (36), MCC

Courtesy of SAAB-SCANIA OF AMERICA, INC.

For MCC connection, see CONTROL UNIT, MCC VENTILATION FAN (220A) .
