Main function

The stepping motor is connected by a linkage to the damper for air mixing the left climate zone.

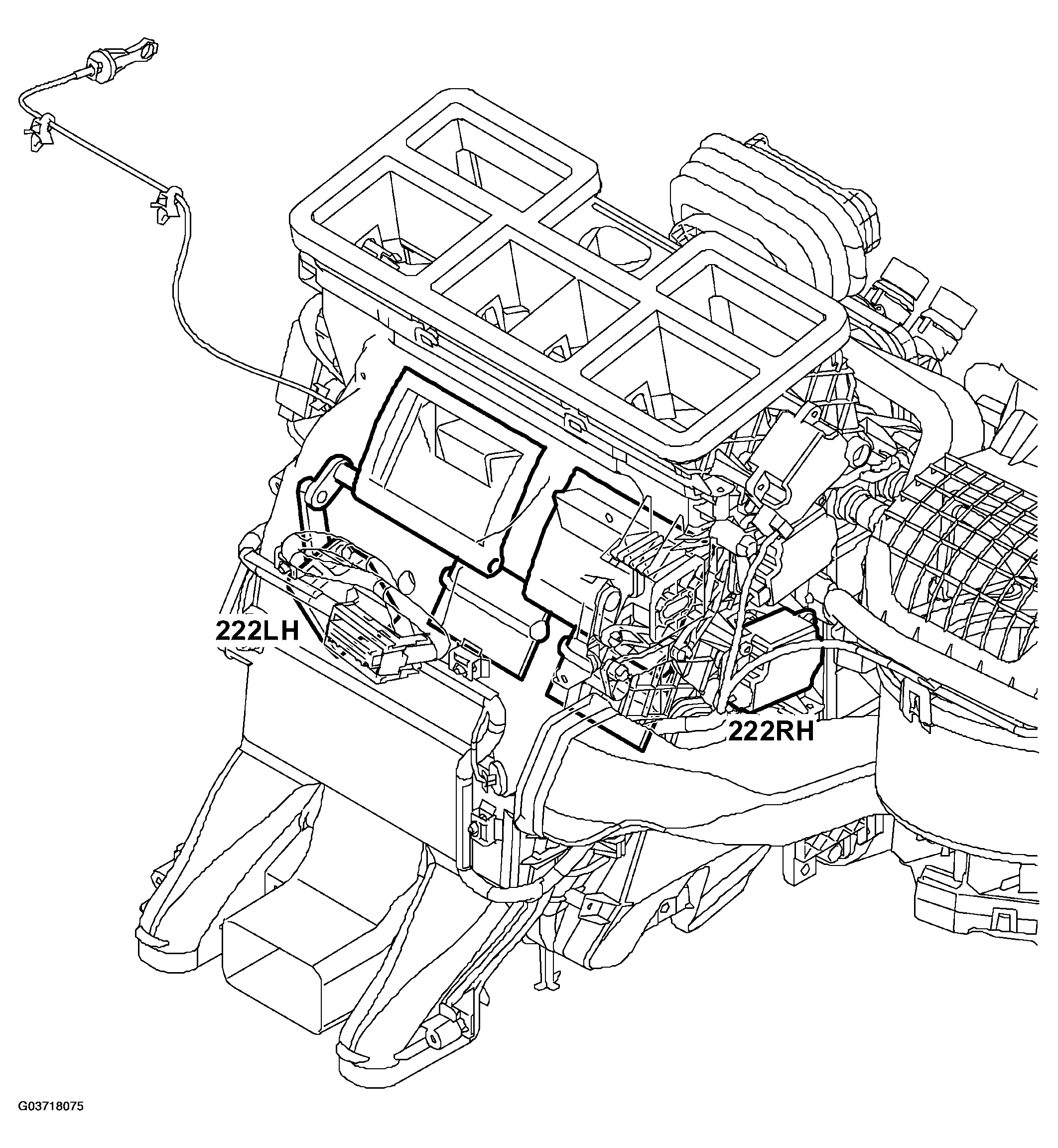

Fig 1: Locating Air-Mixing Damper Motor (Left)

G03718075

Courtesy of SAAB-SCANIA OF AMERICA, INC.
