Light cluster unit, boot lid (418HL/HR): Connection

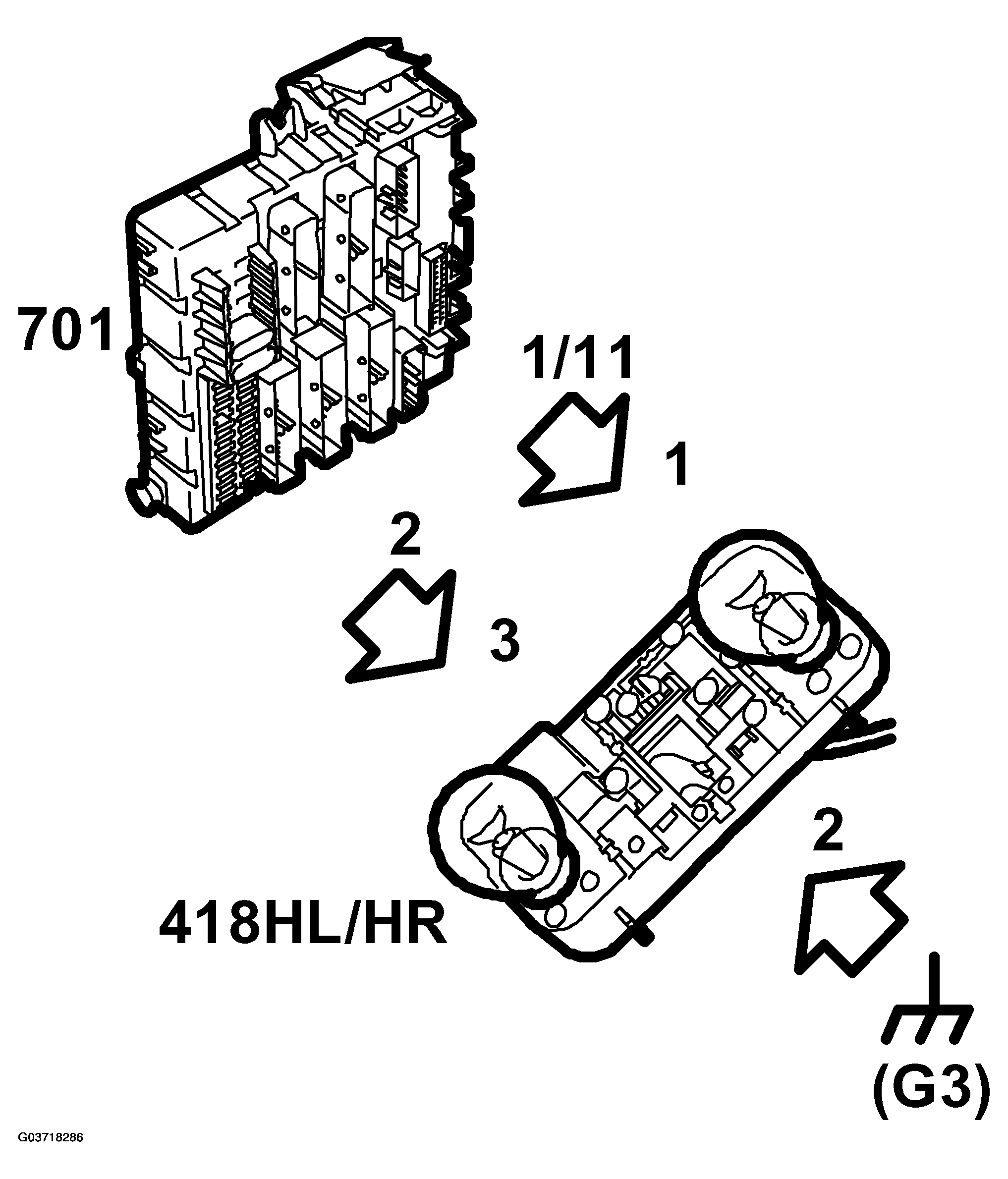

Fig 1: Identifying Communication Flow Light Cluster Unit, Boot Lid

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Power supply, B+	Headlamp power supply for reversing lights, from REC pin 1 (T-C) to 418HL and from pin 11 (T-B) to 418HR
2	Ground	Headlamp's ground in the body via REC
3	Power supply, B+	Headlamp power supply for fog light, from REC pin 2 (T-C)

Rear fog light bulb (33HL/HR)

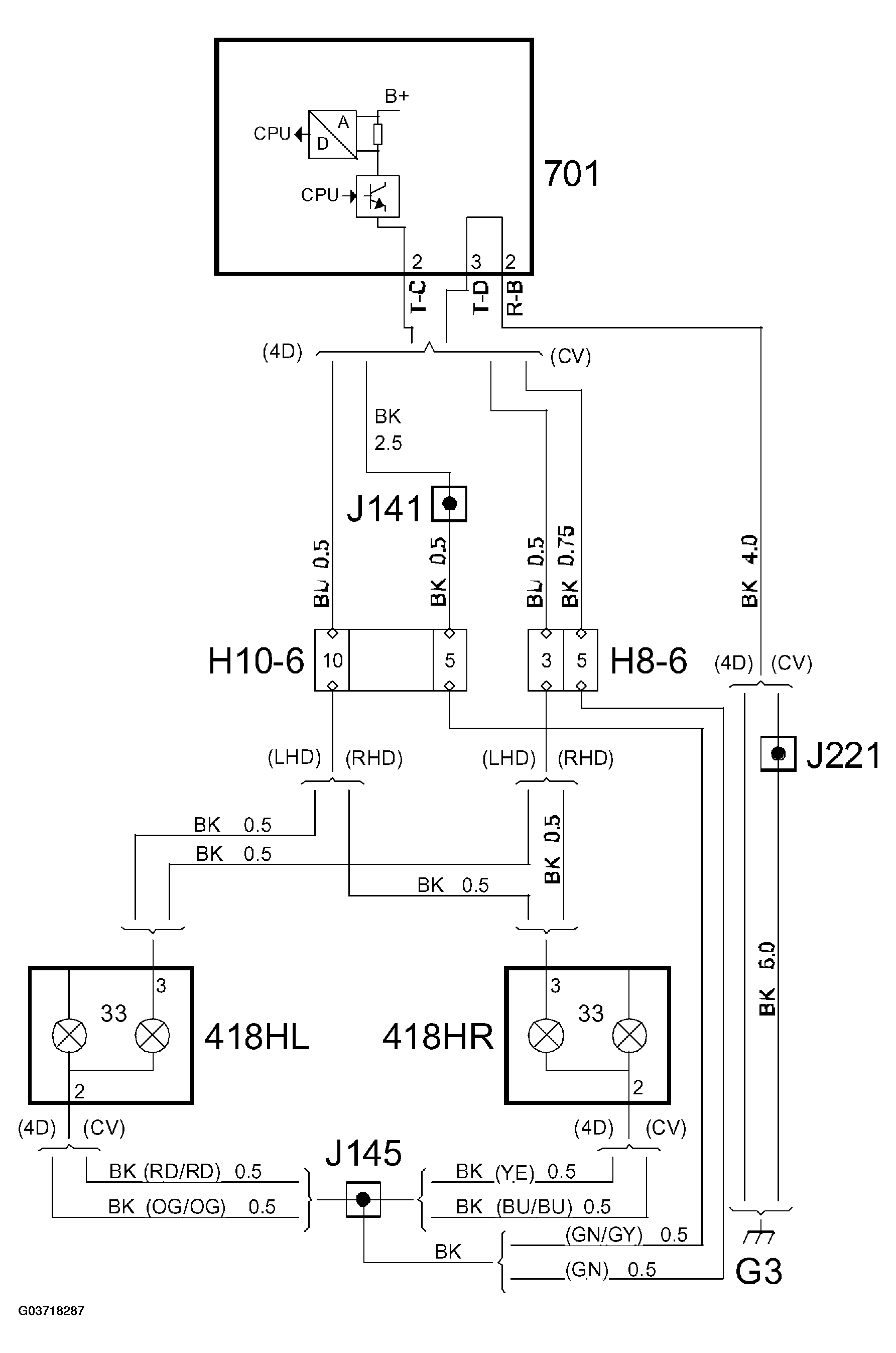

Fig 2: Circuit Diagram Light Cluster Unit, Boot Lid (1 Of 3)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

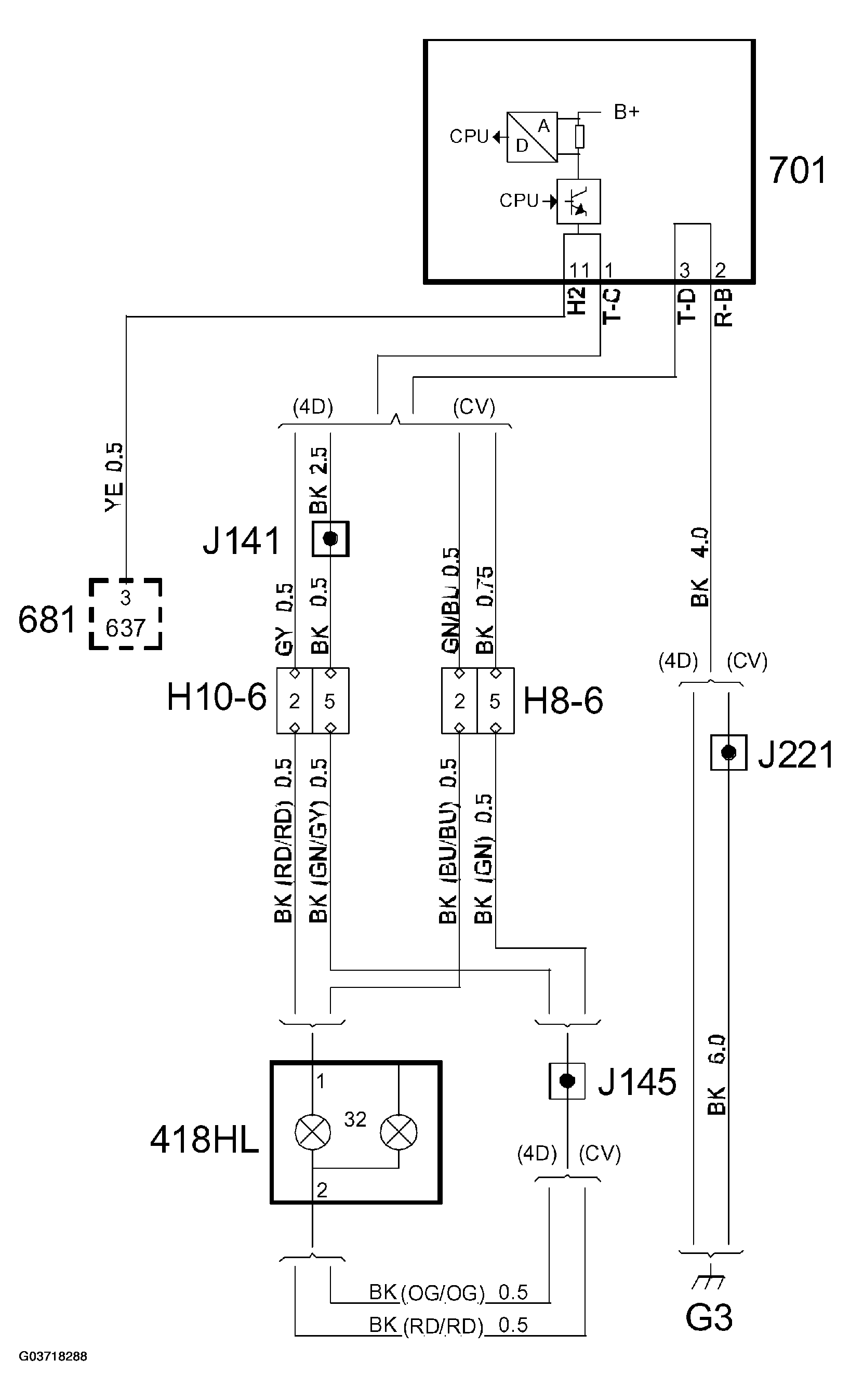

Left reversing light bulb (32HL)

Fig 3: Circuit Diagram Light Cluster Unit, Boot Lid (2 Of 3)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

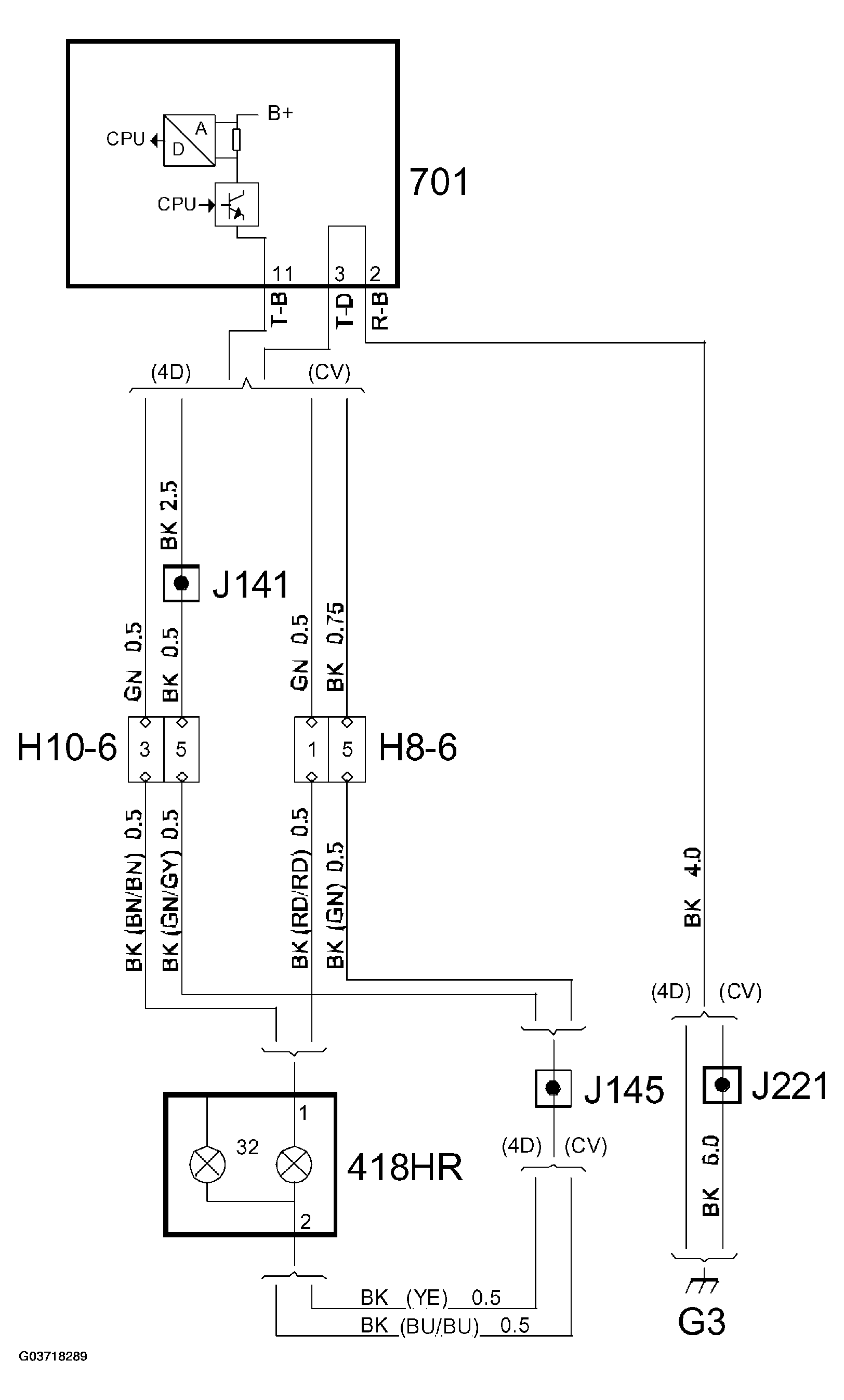

Right reversing light bulb (32HR)

Fig 4: Circuit Diagram Light Cluster Unit, Boot Lid (3 Of 3)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
