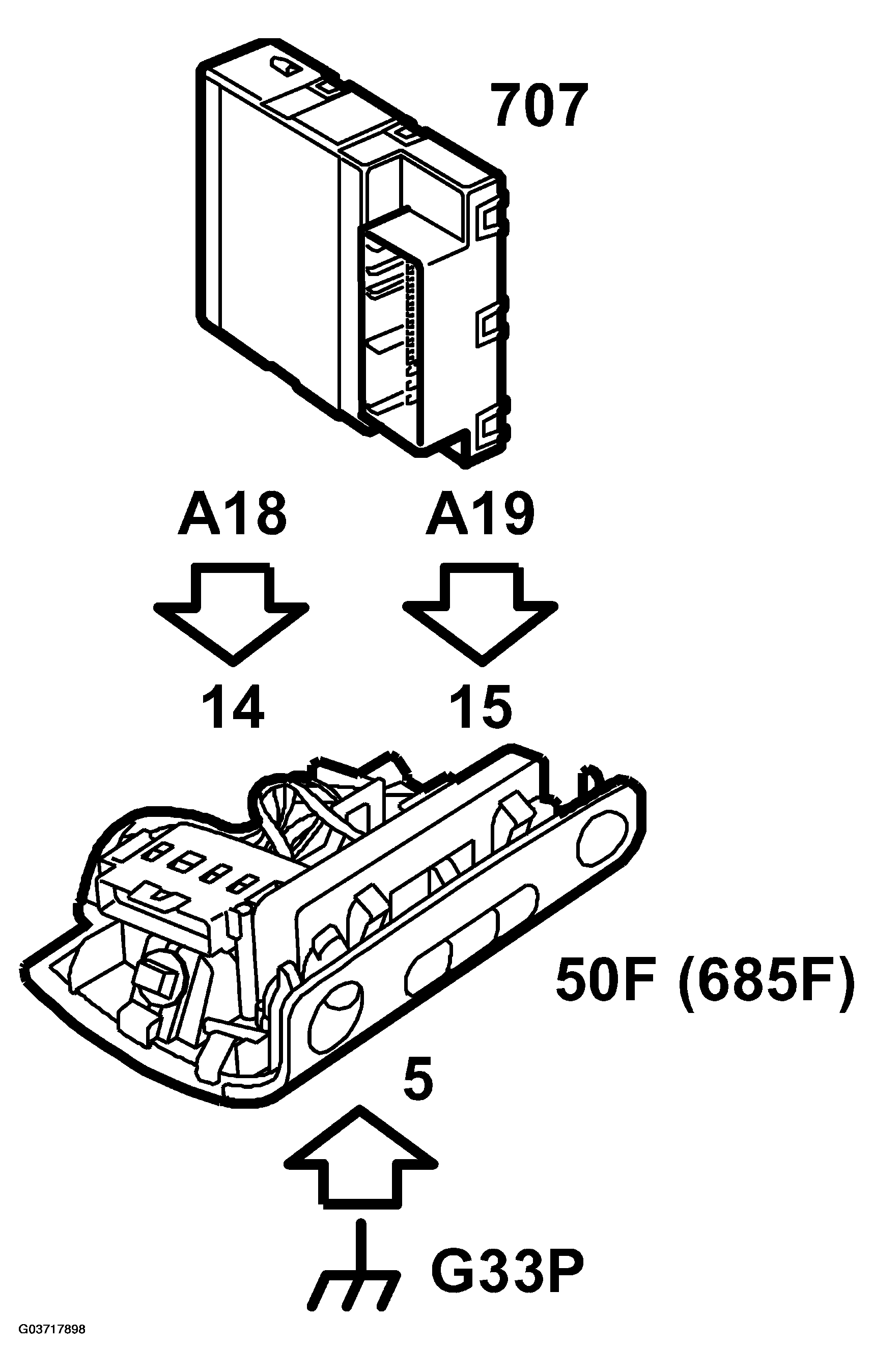

Lamp, roof lighting, front (50F), CV: Connection

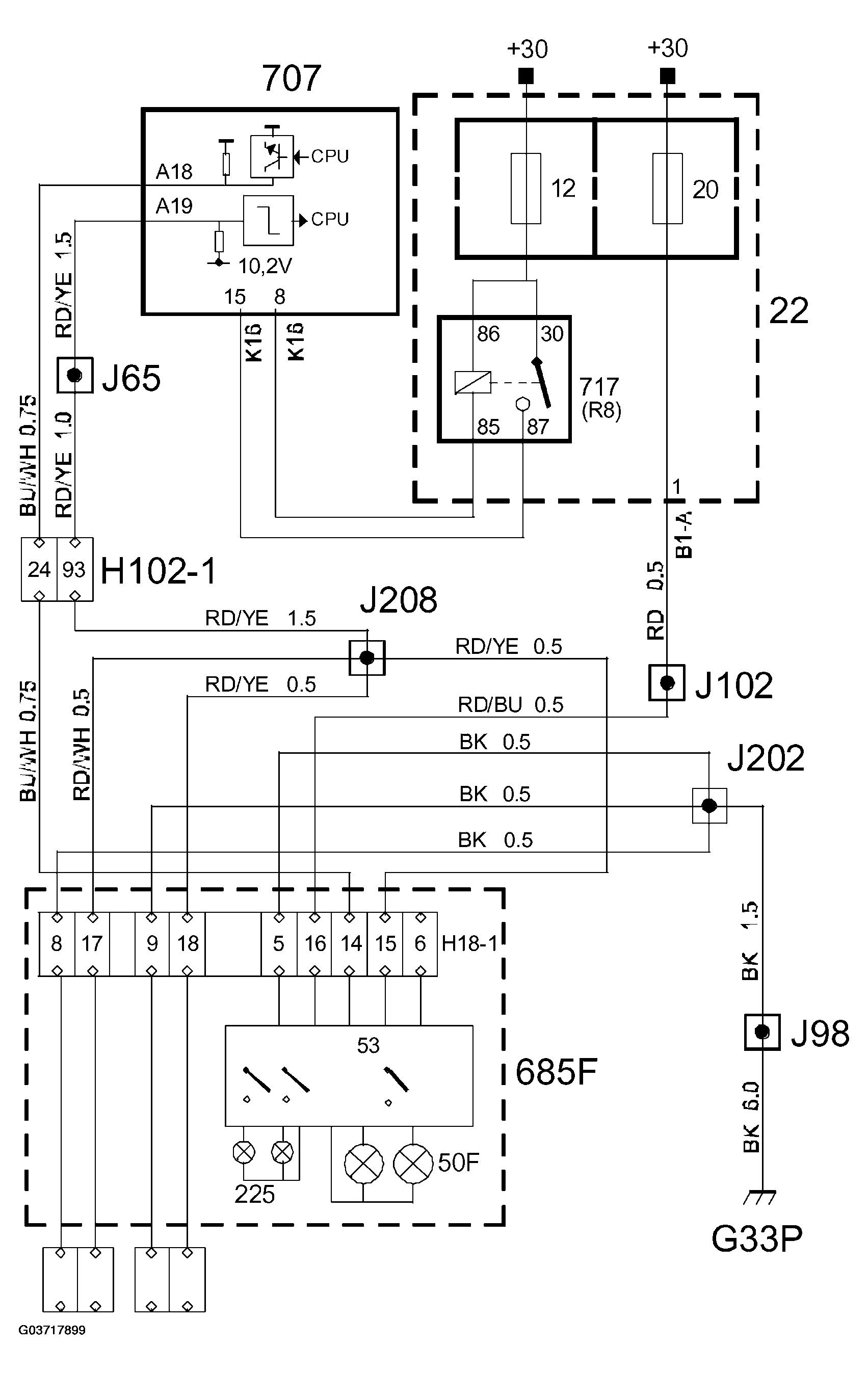

The lamps are grounded with PWM from BCM. Power is supplied to the lamps from a relay controlled by the BCM. The BCM senses the supply to determine whether the relay is activated.
CONNECTOR PINOUTS REFERENCE
| Pin No. | Signal type | Description |
|---|---|---|
| 685F pin 5 | Ground | The lamp (50F) is grounded to the vehicle body. |
| 685F pin 14 | Ground | The lamps are grounded with the PCM from the BCM pin A18 (K78). |
| 685F pin 15 | Power supply | From BCM pin A19 (K78) |
