Lamp, courtesy light (209D/P): Connection

The lamp is grounded in the body and supplied with +PWM from the door control module.

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Ground	Ground in the body
2	Power supply	Supply from the door control module (702D/P) pin 27 (J1)

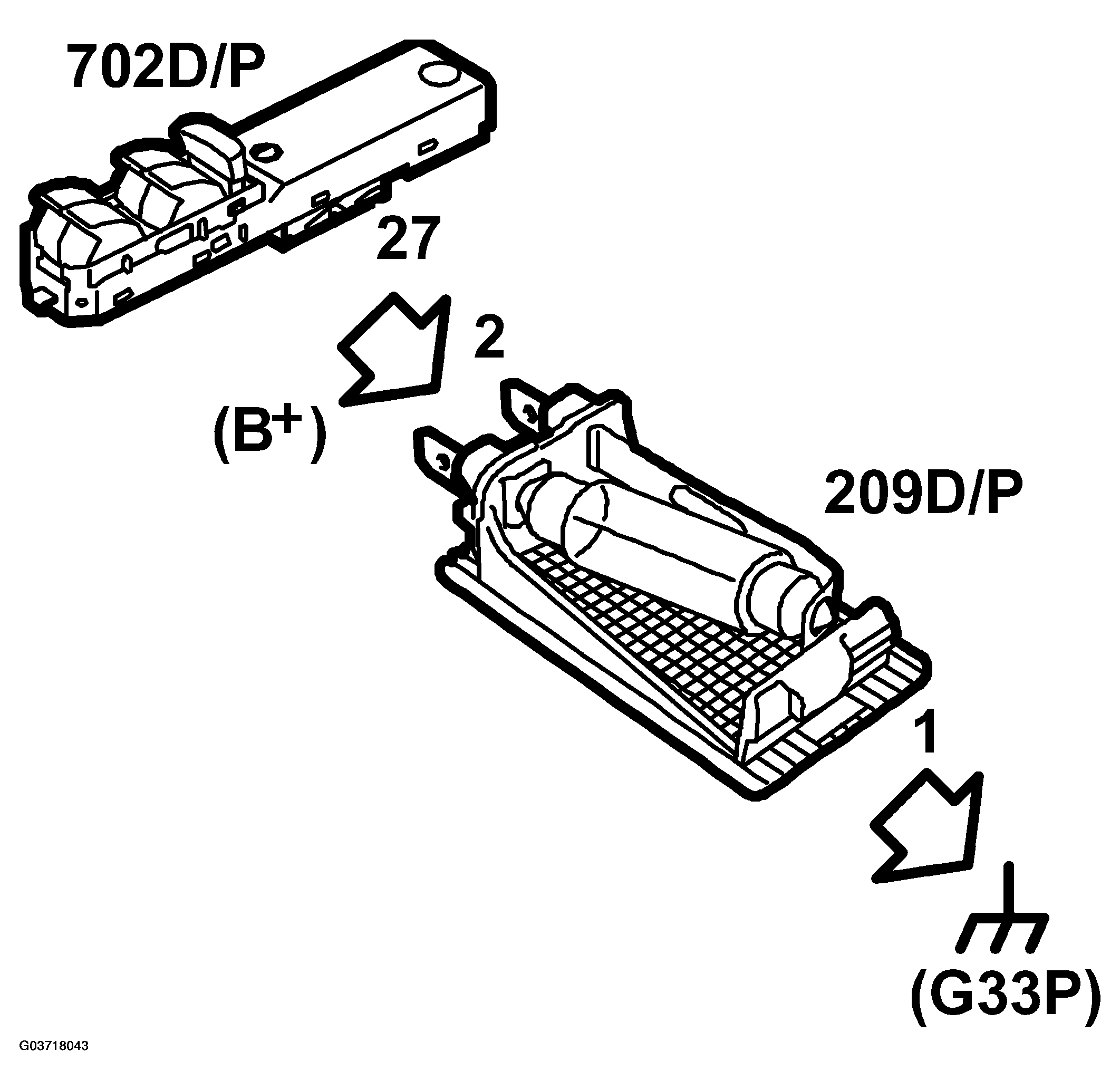

Fig 1: Identifying Communication Flow - Courtesy Light Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Lamp, driver's door courtesy light (209D)

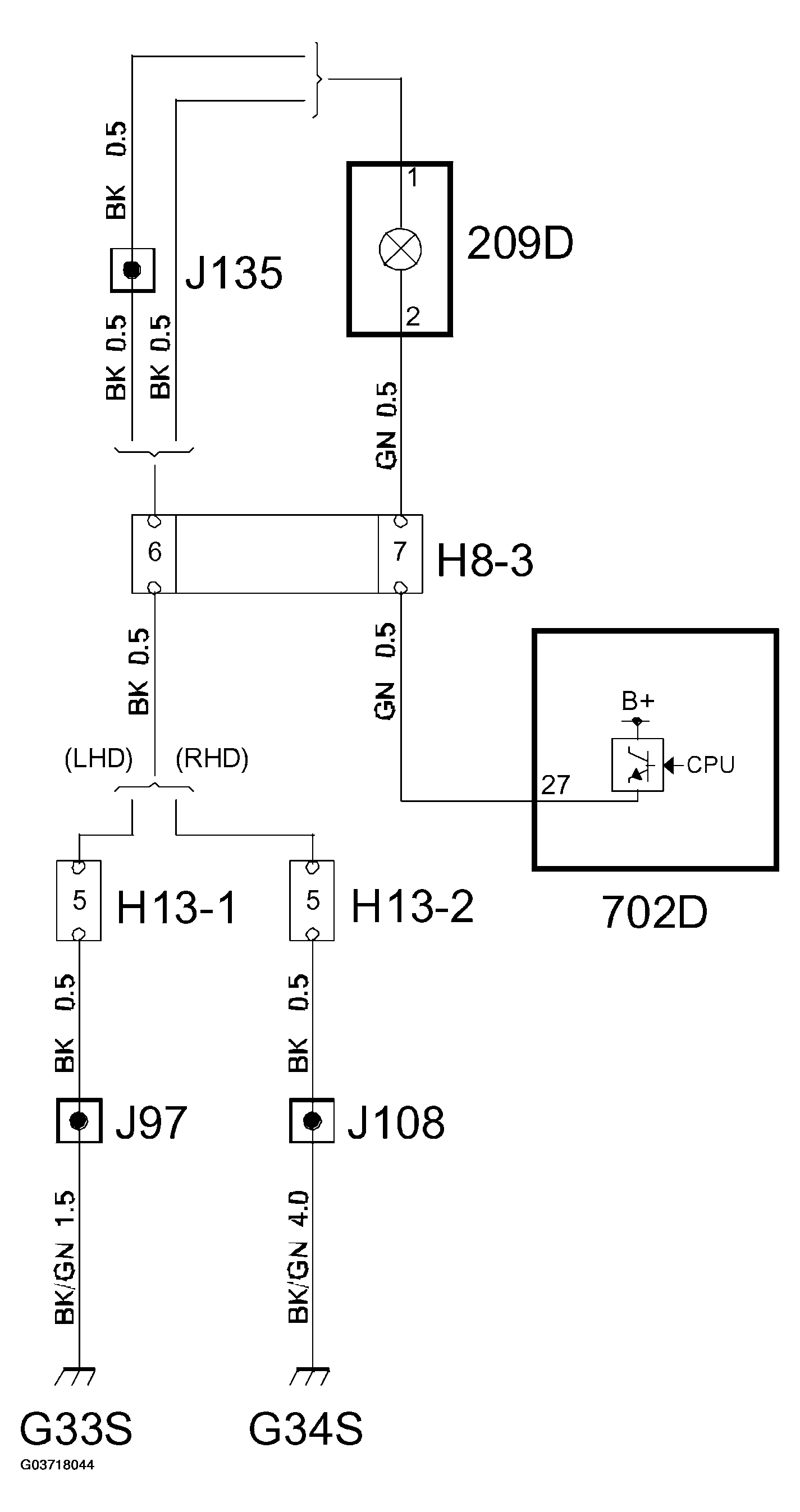

Fig 2: Circuit Diagram - Courtesy Light Lamp (Driver's Door)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Lamp, passenger door courtesy light (209P)

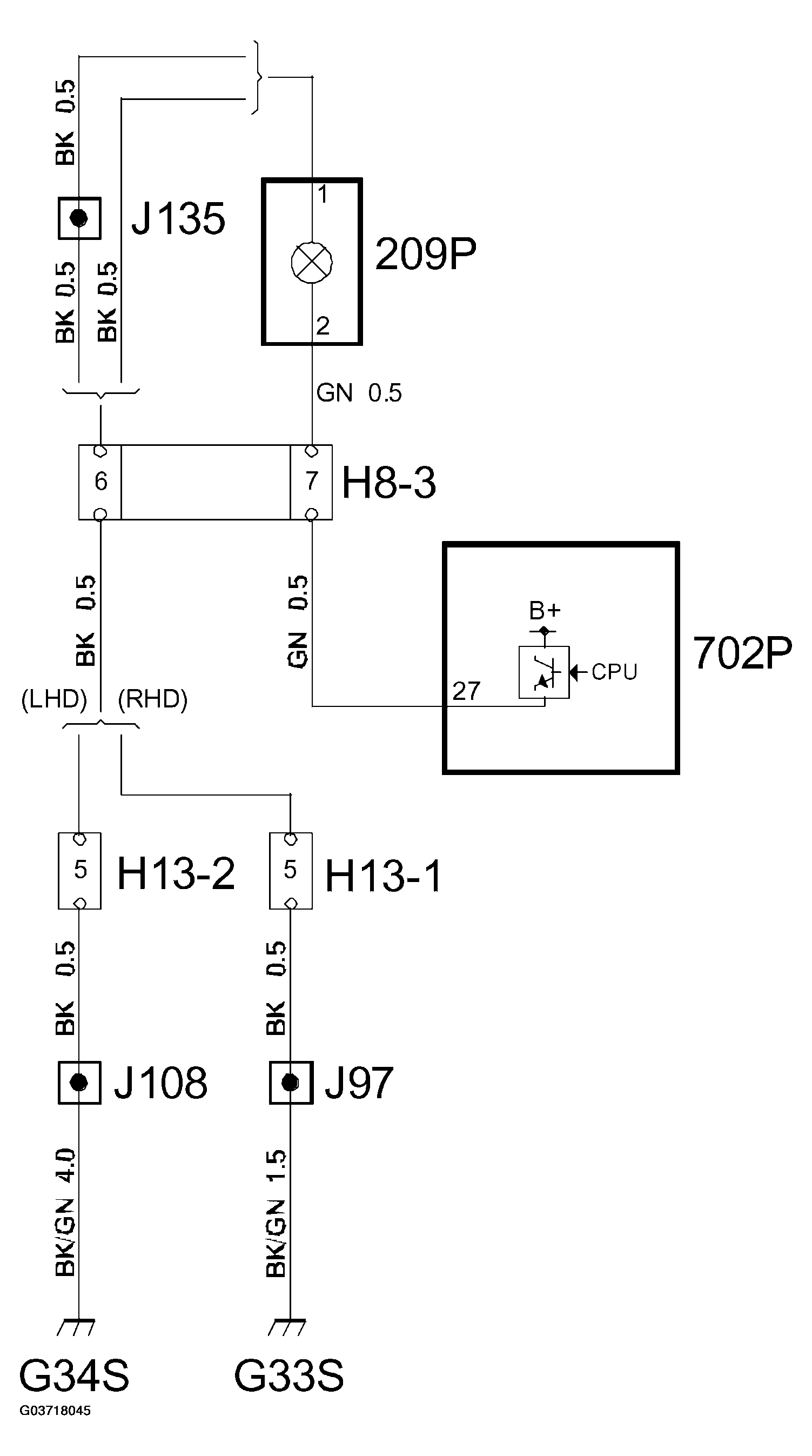

Fig 3: Circuit Diagram - Courtesy Light Lamp (Passenger Door)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
