Inflatable curtain (732D, 732P): Connection

Pin 26 receives B+ current from the control module during activation. Grounding occurs via pin 27 on the control module for (732D).

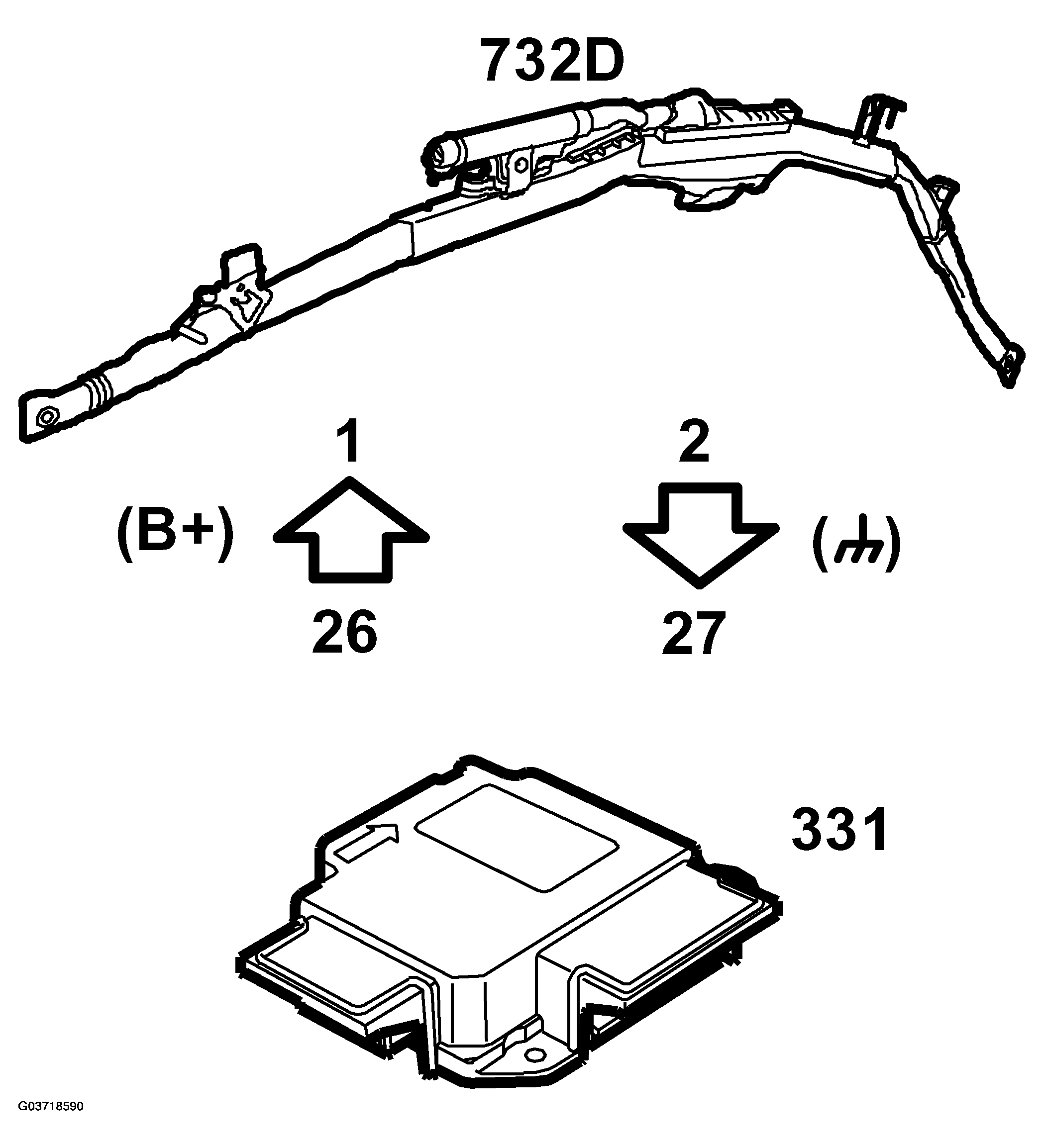

Fig 1: Identifying Communication Flow - Inflatable Curtain

Courtesy of SAAB-SCANIA OF AMERICA, INC.

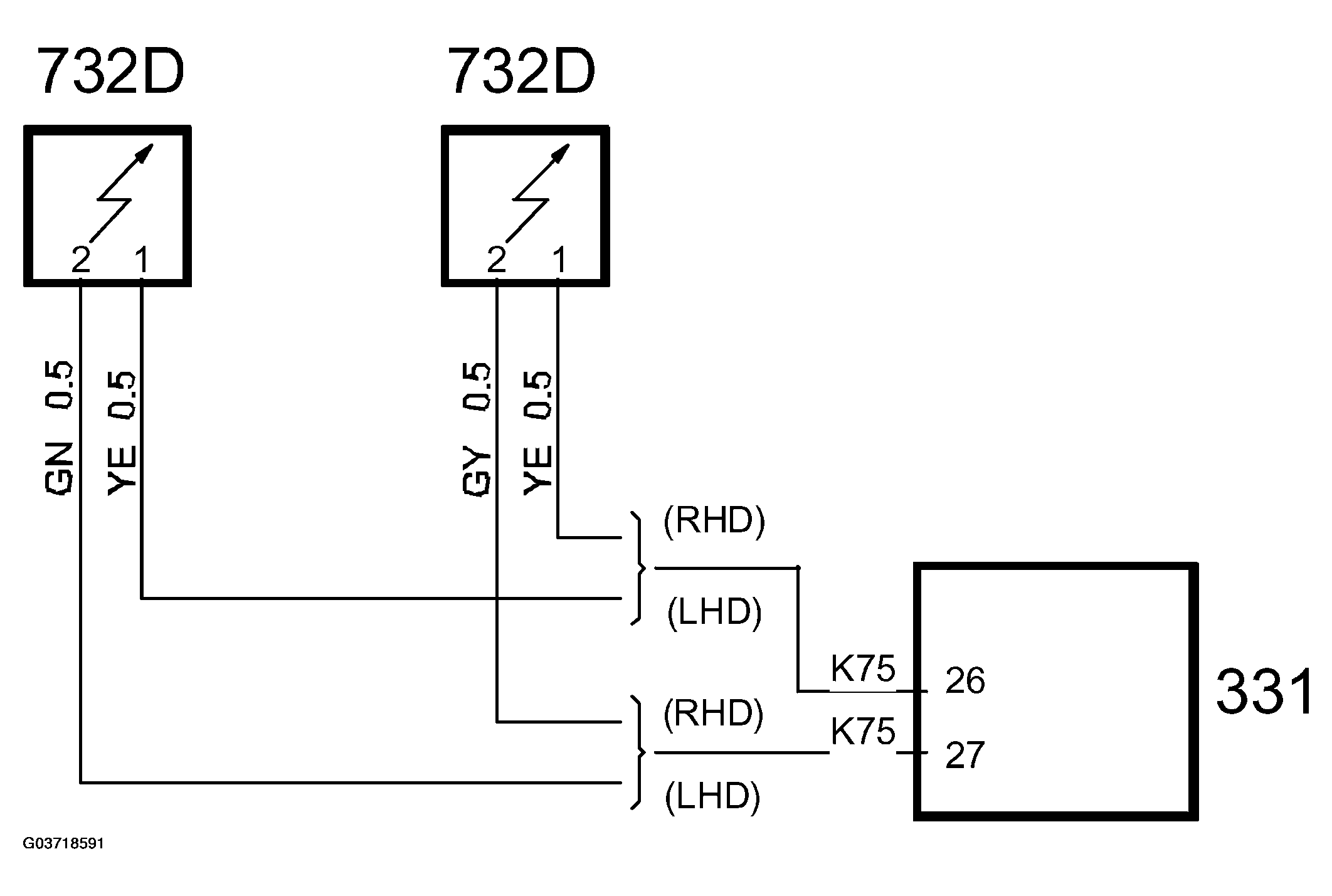

Fig 2: Circuit Diagram - Inflatable Curtain (732D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Pin 29 receives B+ current from the control module during activation. Grounding occurs via pin 28 on the control module for (732P).

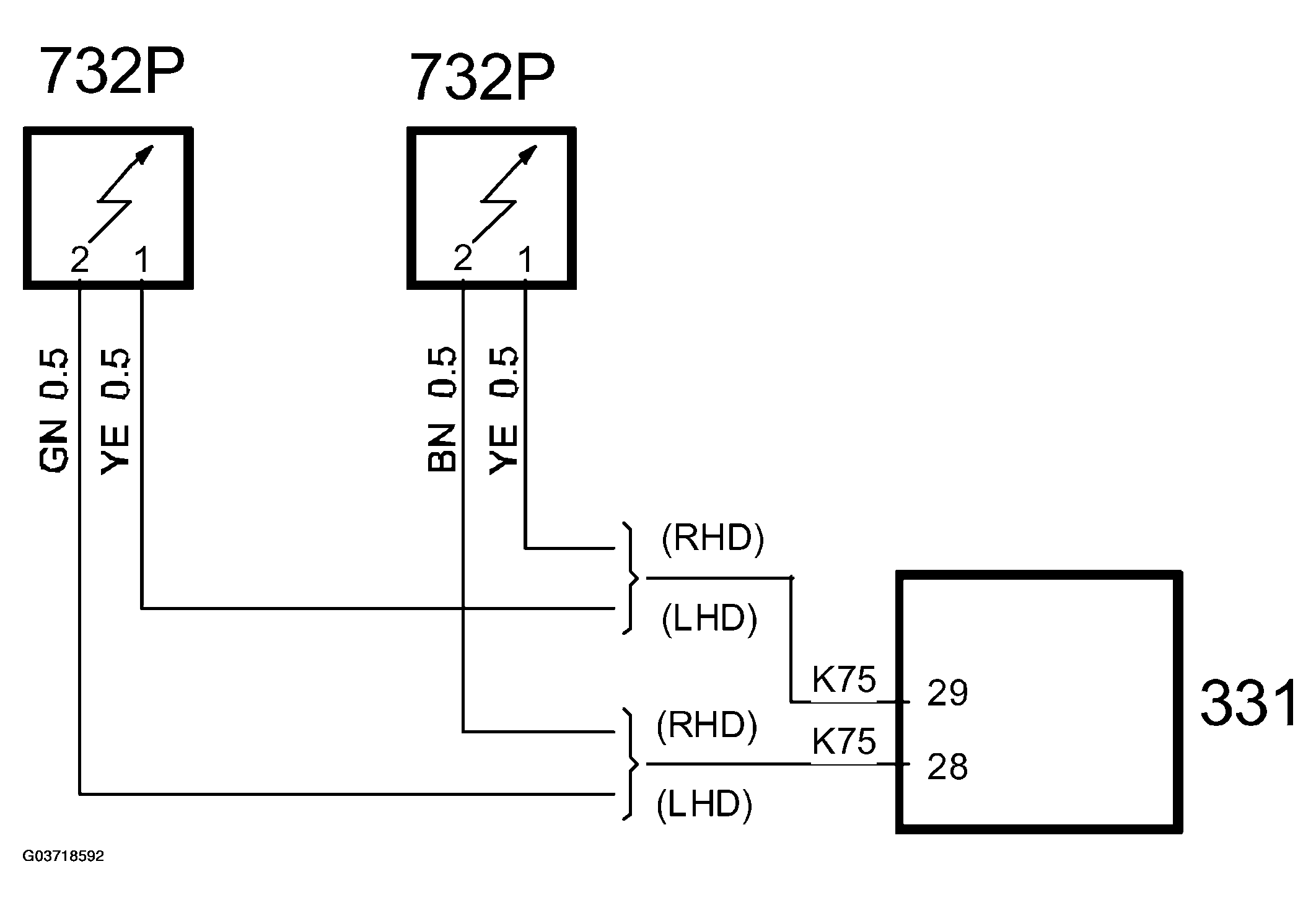

Fig 3: Circuit Diagram - Inflatable Curtain (732P)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
