Impact sensor, front (332FL, 332FR): Connection

Two leads are connected to every sensor for power supply and signal transfer to the control module.

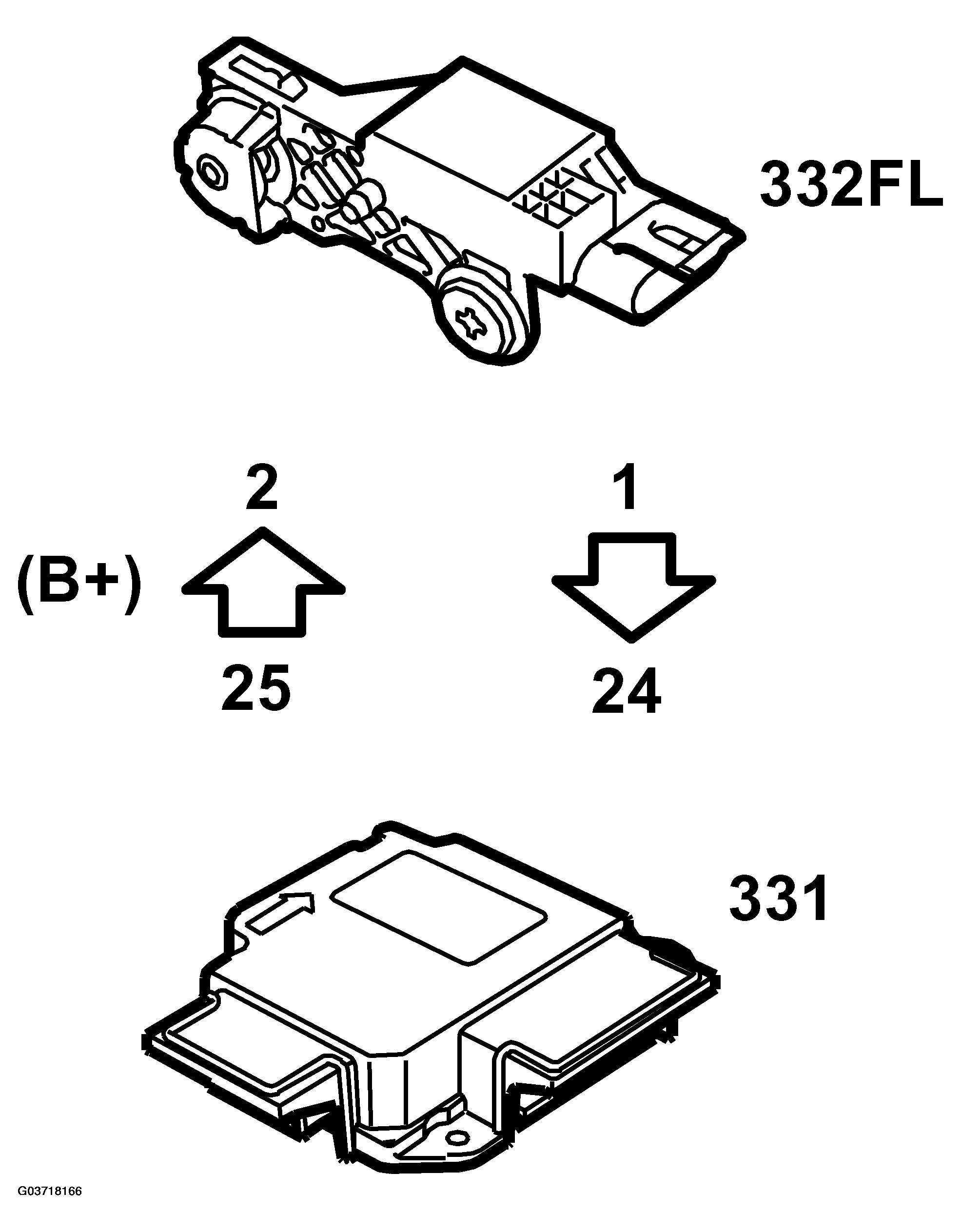

Fig 1: Identifying Communication Flow Impact sensor, front (332FL, 332FR)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Front left impact sensor B+ feed to pin 2 from control module pin 25. The signal from sensor pin 1 is connected to pin 24 on the control module.

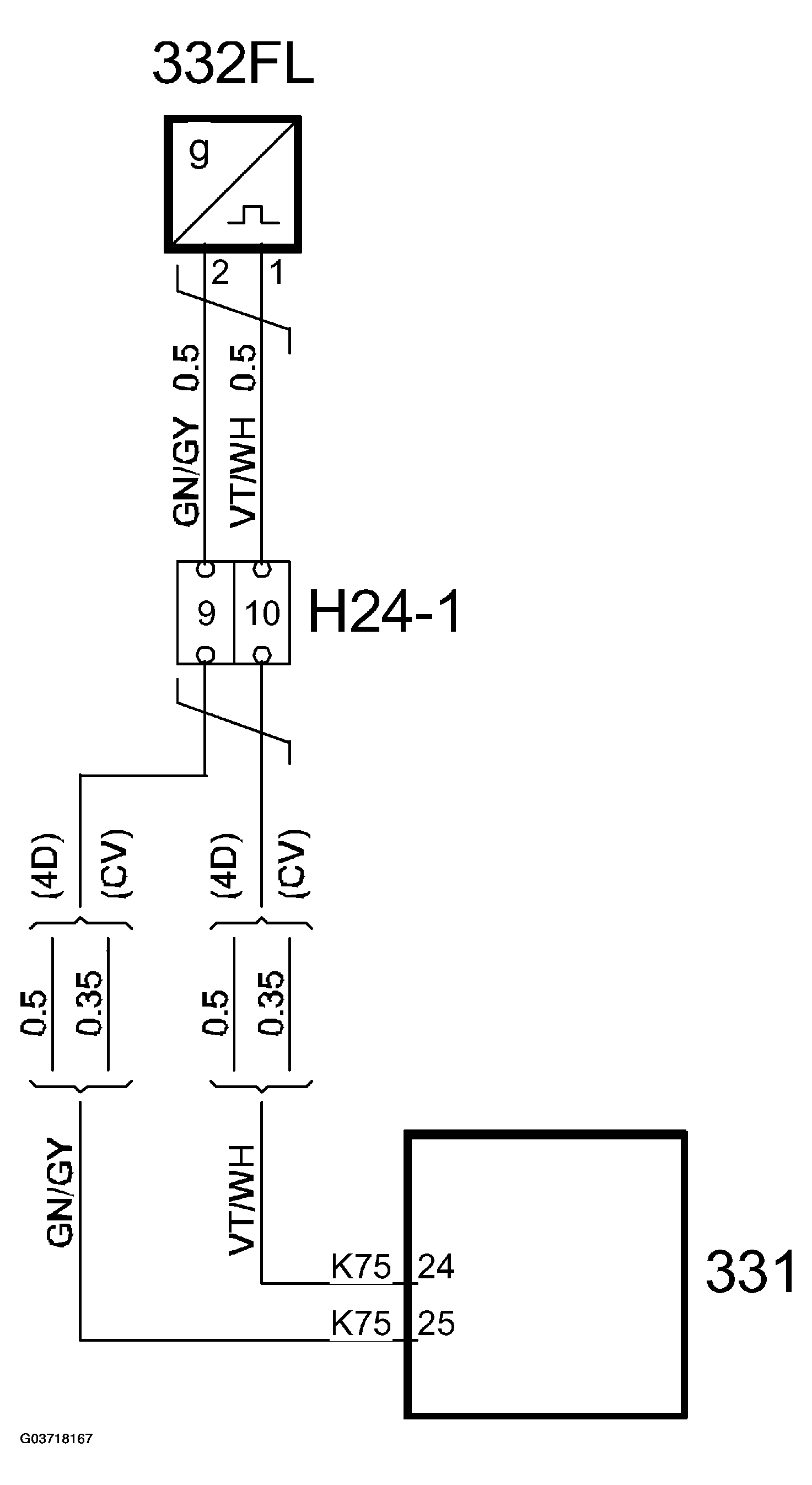

Fig 2: Circuit Diagram - Impact Sensor FL

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Front right impact sensor B+ feed to pin 2 from control module pin 50. The signal from sensor pin 11 is connected to pin 49 on the control module.

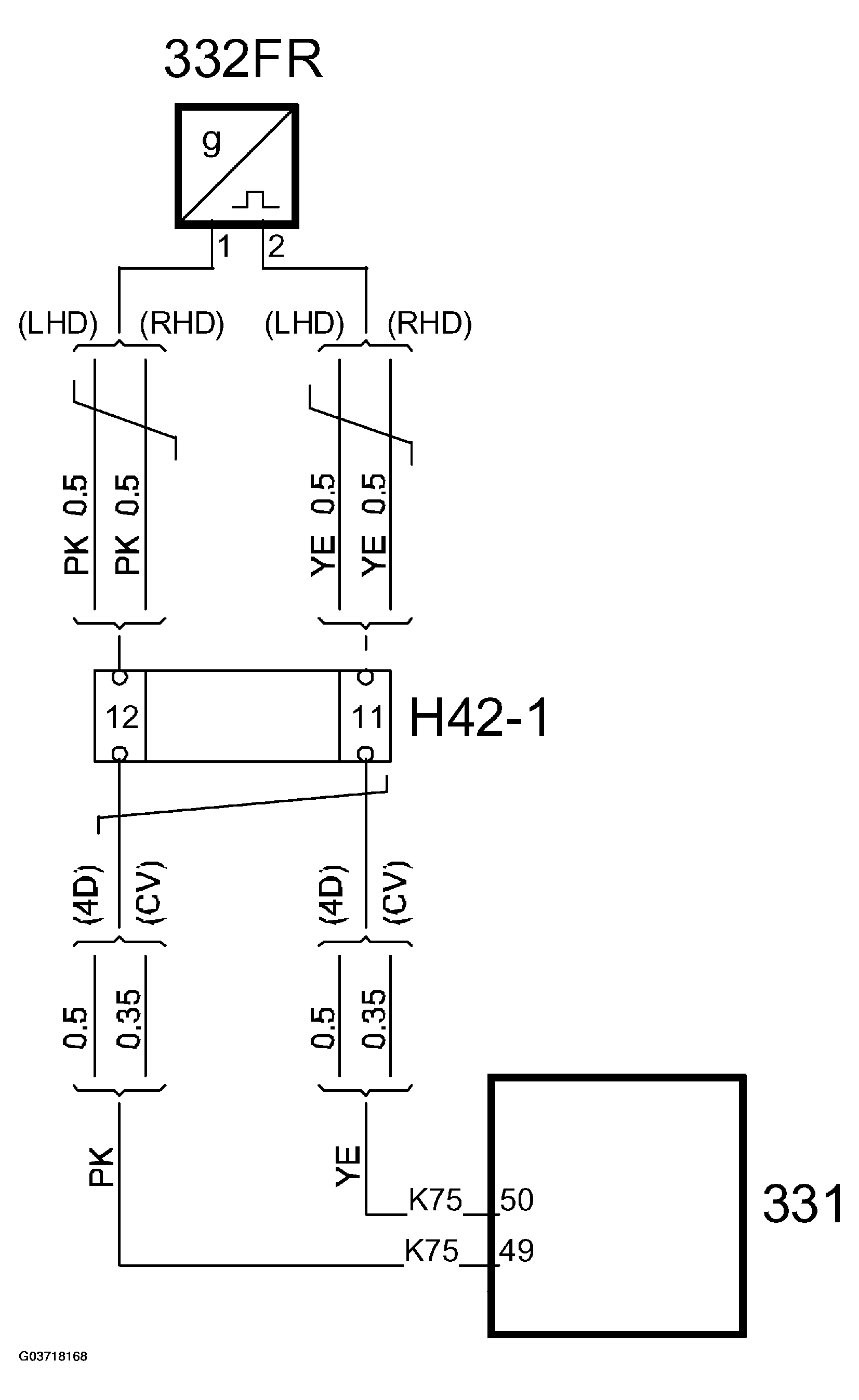

Fig 3: Circuit Diagram - Impact Sensor FR

Courtesy of SAAB-SCANIA OF AMERICA, INC.
