Fog light bulb (85FL/FR): Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Power supply, B+	Headlamp power supply from UEC pin 33 (F) 85FL, 10 (F) 85FR
2	Ground	Headlamp's ground

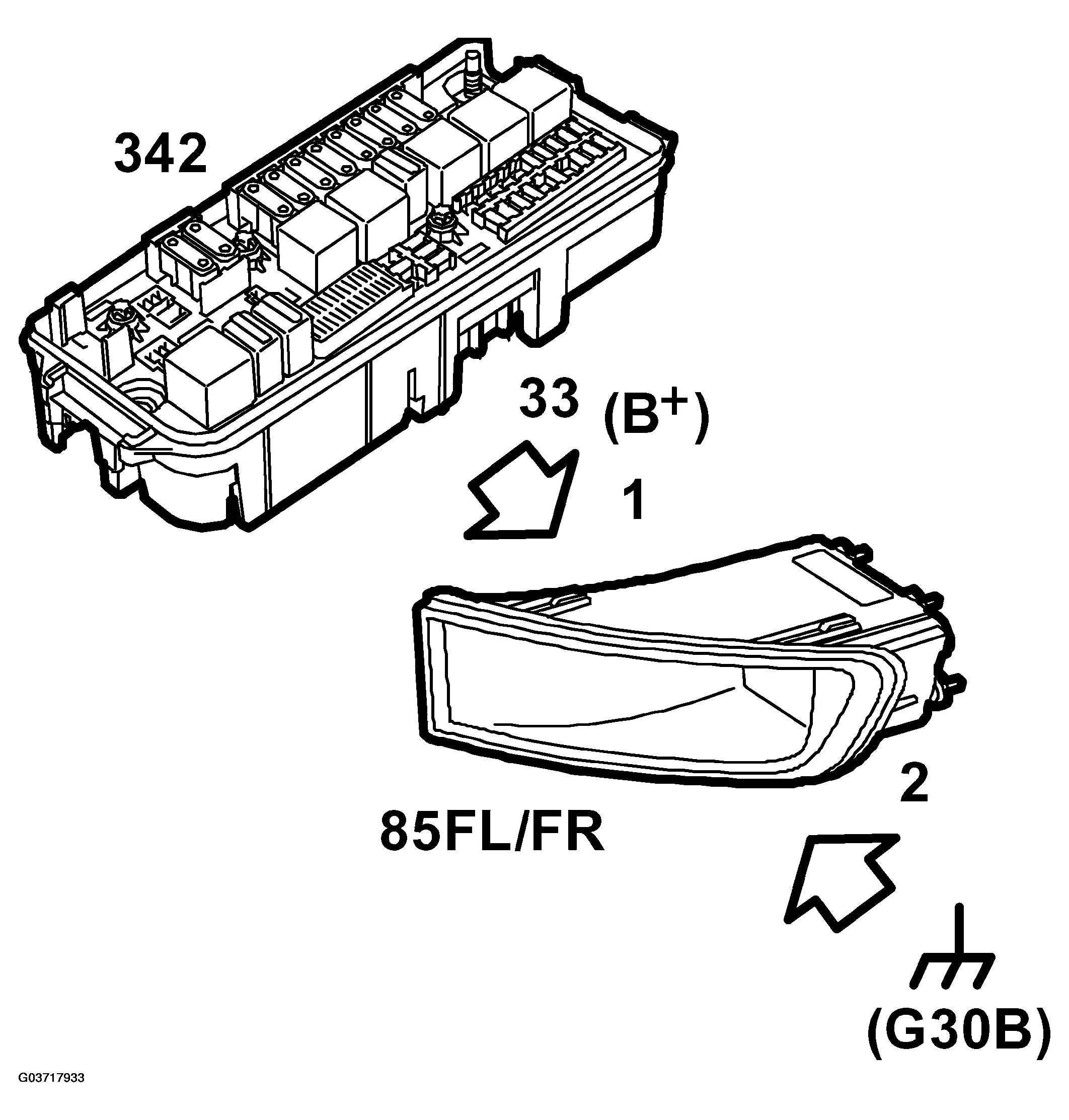

Fig 1: Identifying Communication Flow - Fog Light Bulb (85FL/FR)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

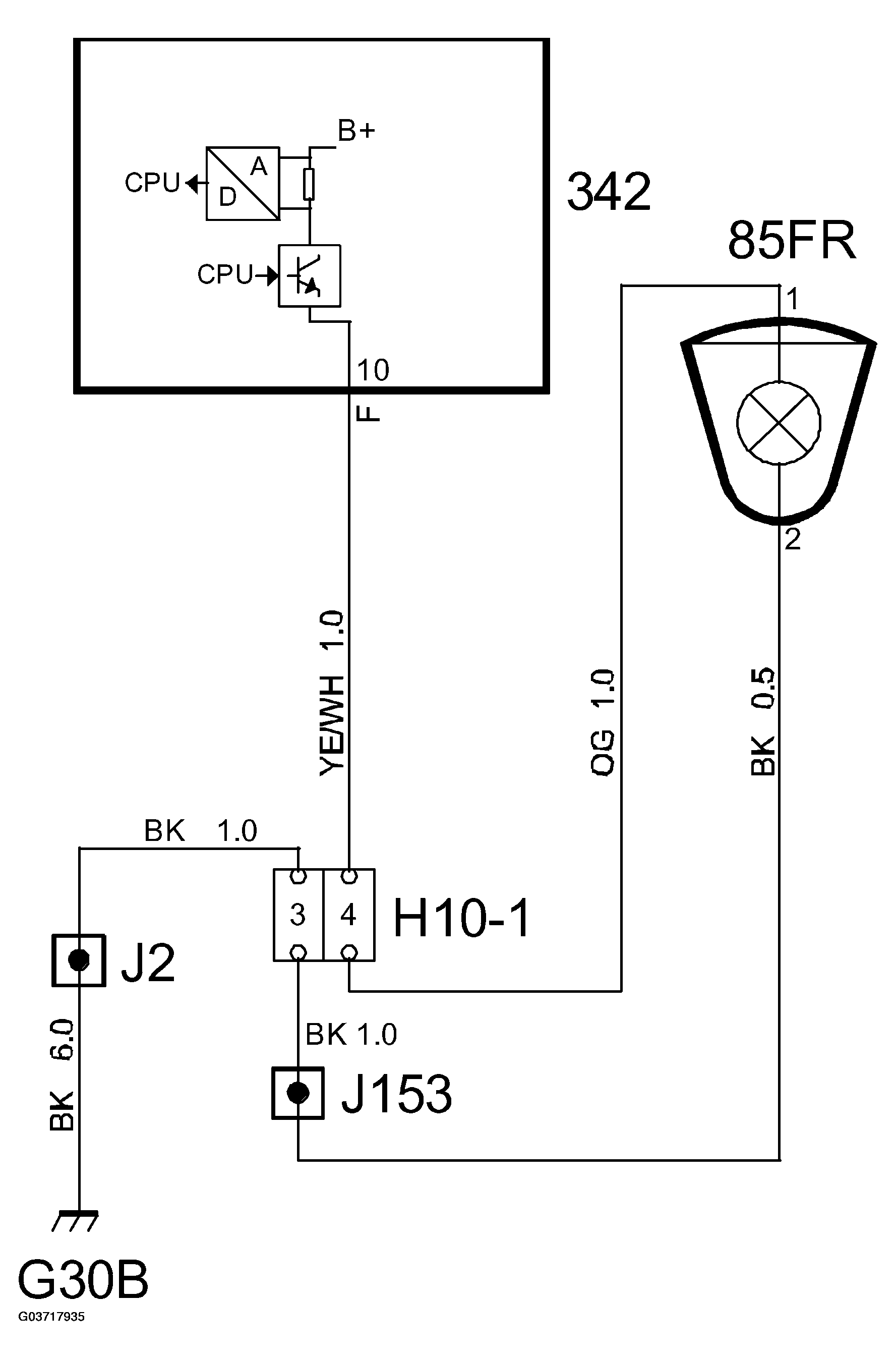

Fig 2: Circuit Diagram - Fog Light Bulb (85FL/FR)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

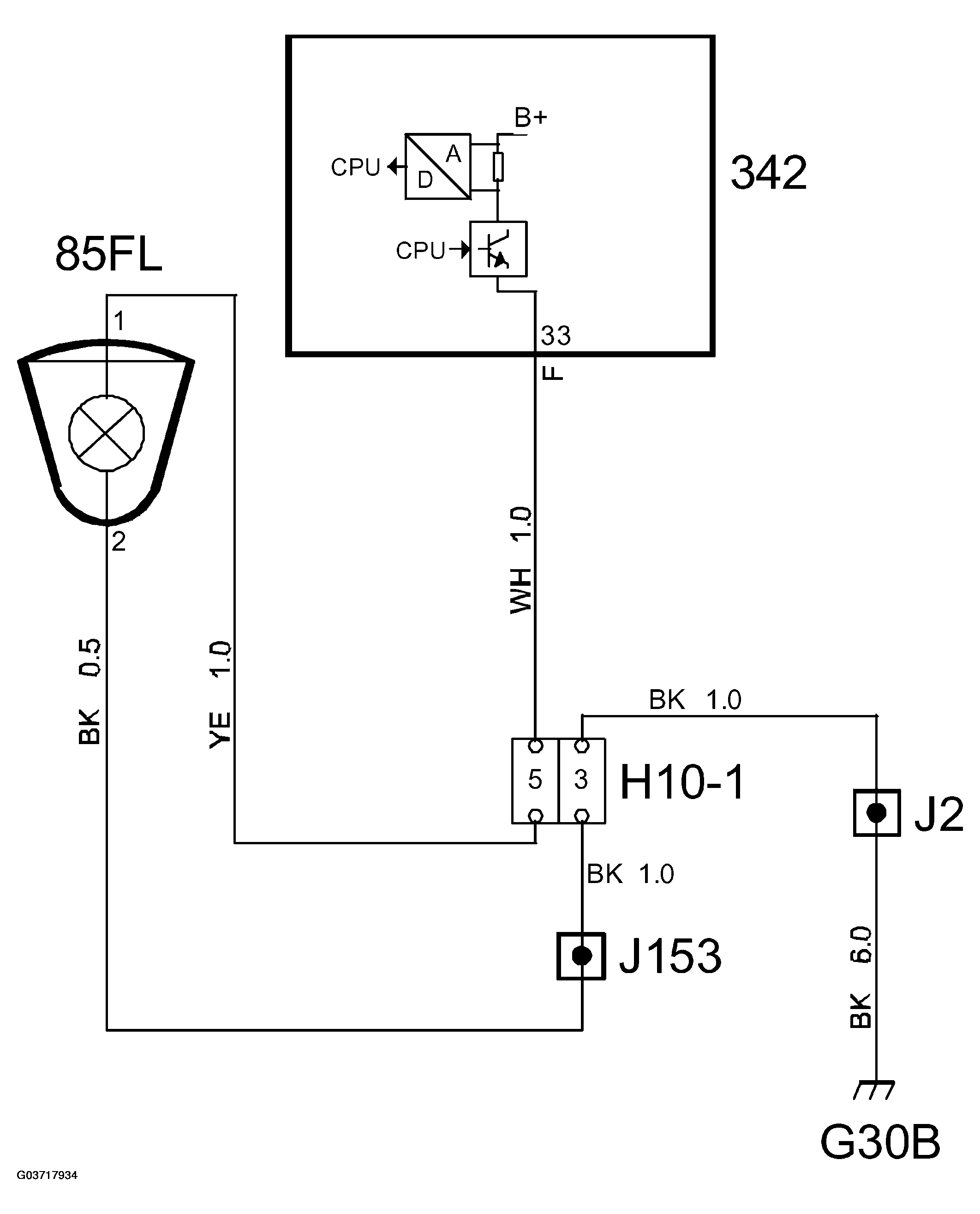

Fig 3: Circuit Diagram - Fog Light Bulb (85FL/FR)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
