Engine oil pressure switch (44), Simtec: Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Signal	The pin is grounded in the event of low oil pressure. Connected to ECM pin 60(A)

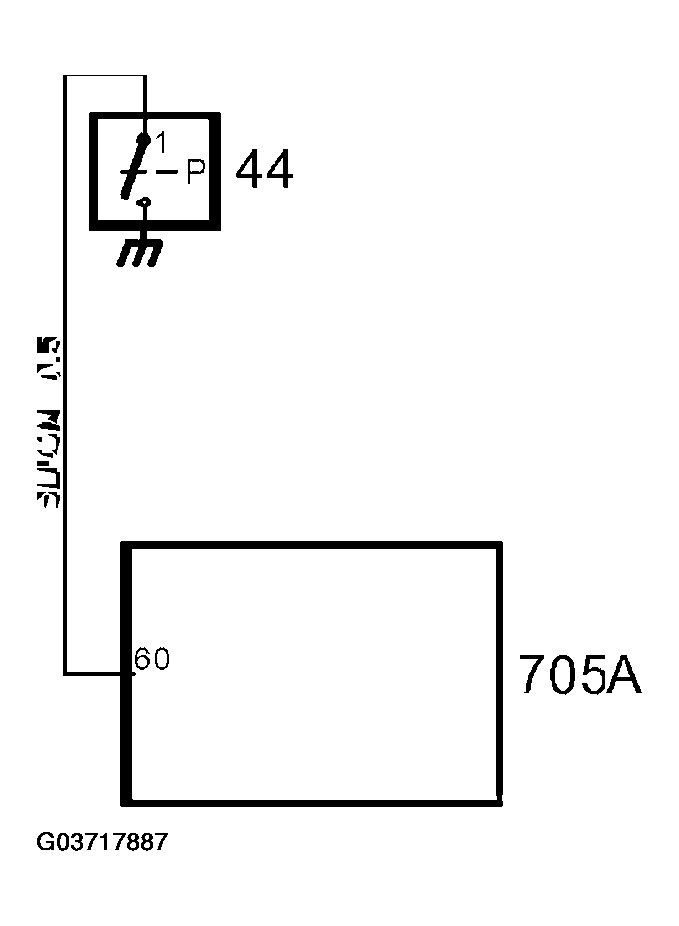

Fig 1: Circuit Diagram - Engine Oil Pressure Switch (Simtec)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
