Engine oil level switch (243), PSG16: Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Signal	The level switch is supplied with 5V via a resistor from ECM pin 6(M). Sufficient oil = 0V.
2	Ground	Sensor's ground.

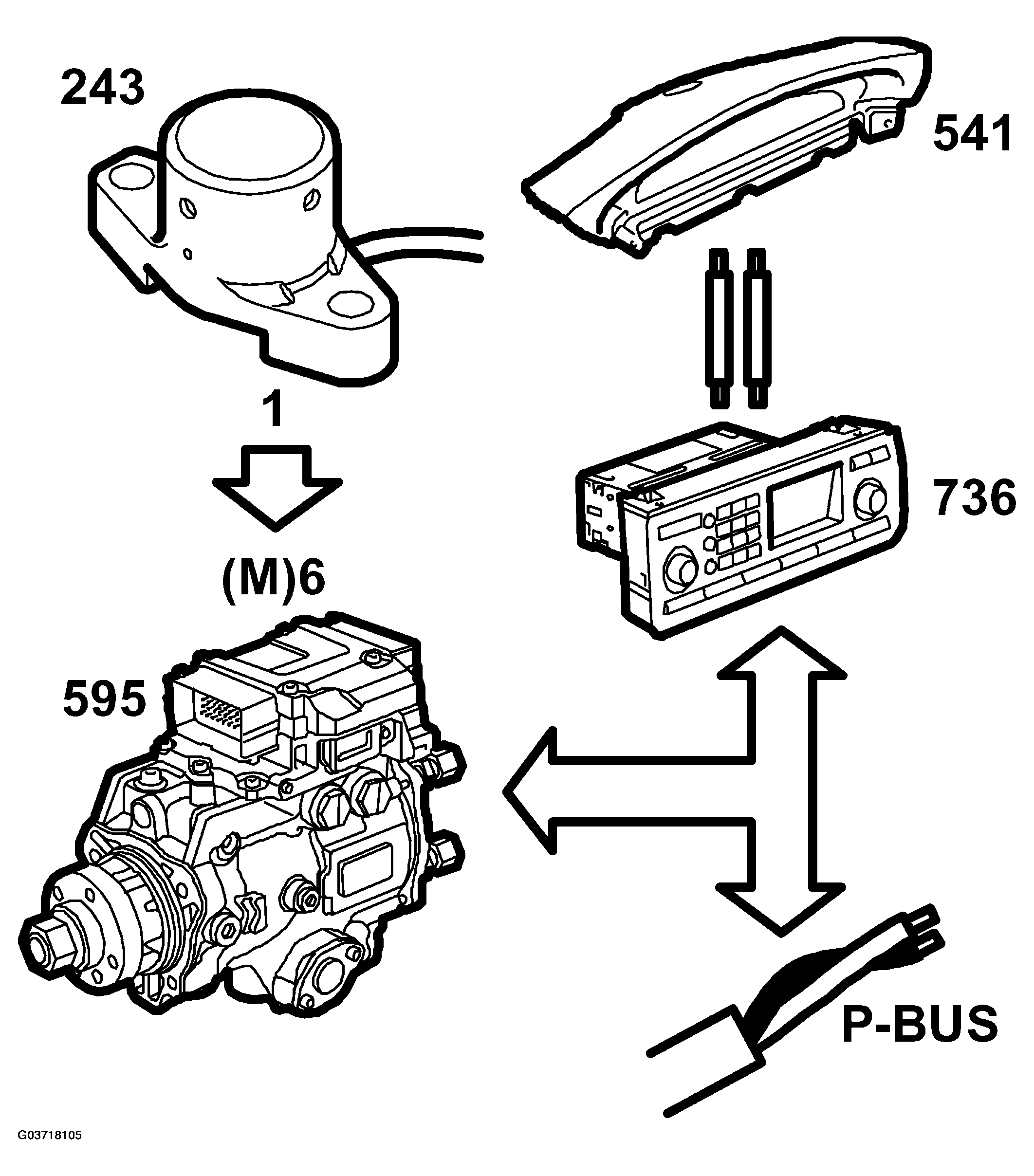

Fig 1: Identifying Communication Flow Engine Oil Level Switch (243), PSG16

Courtesy of SAAB-SCANIA OF AMERICA, INC.

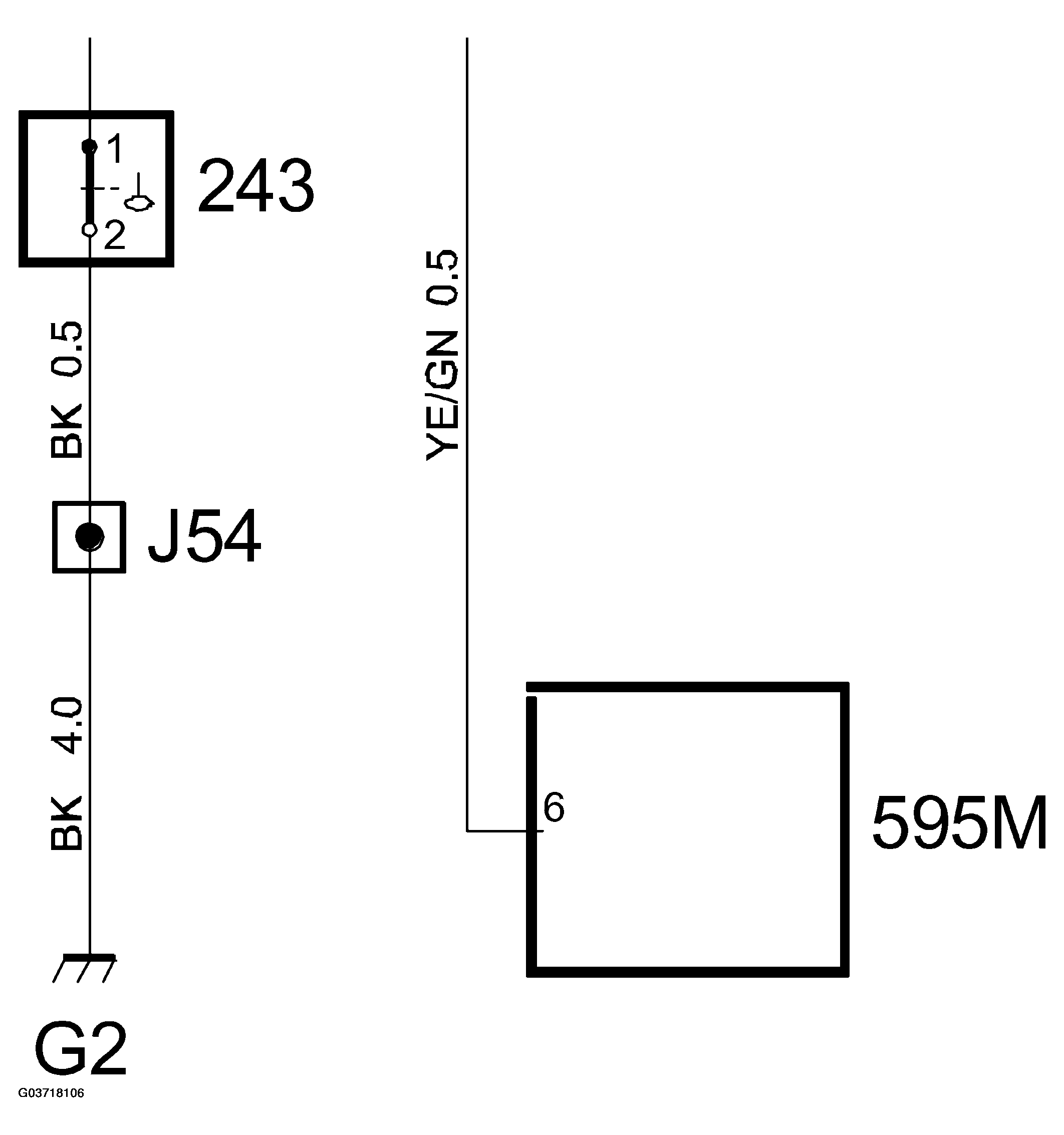

Fig 2: Circuit Diagram Engine Oil Level Switch (243), PSG16

Courtesy of SAAB-SCANIA OF AMERICA, INC.
