Crankshaft position sensor (345), PSG16: Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Signal +	Connected to ECM pin 35(M)
2	Signal -	Connected to ECM pin 23(M)
3	Screen	Connected to ECM pin 11(M)

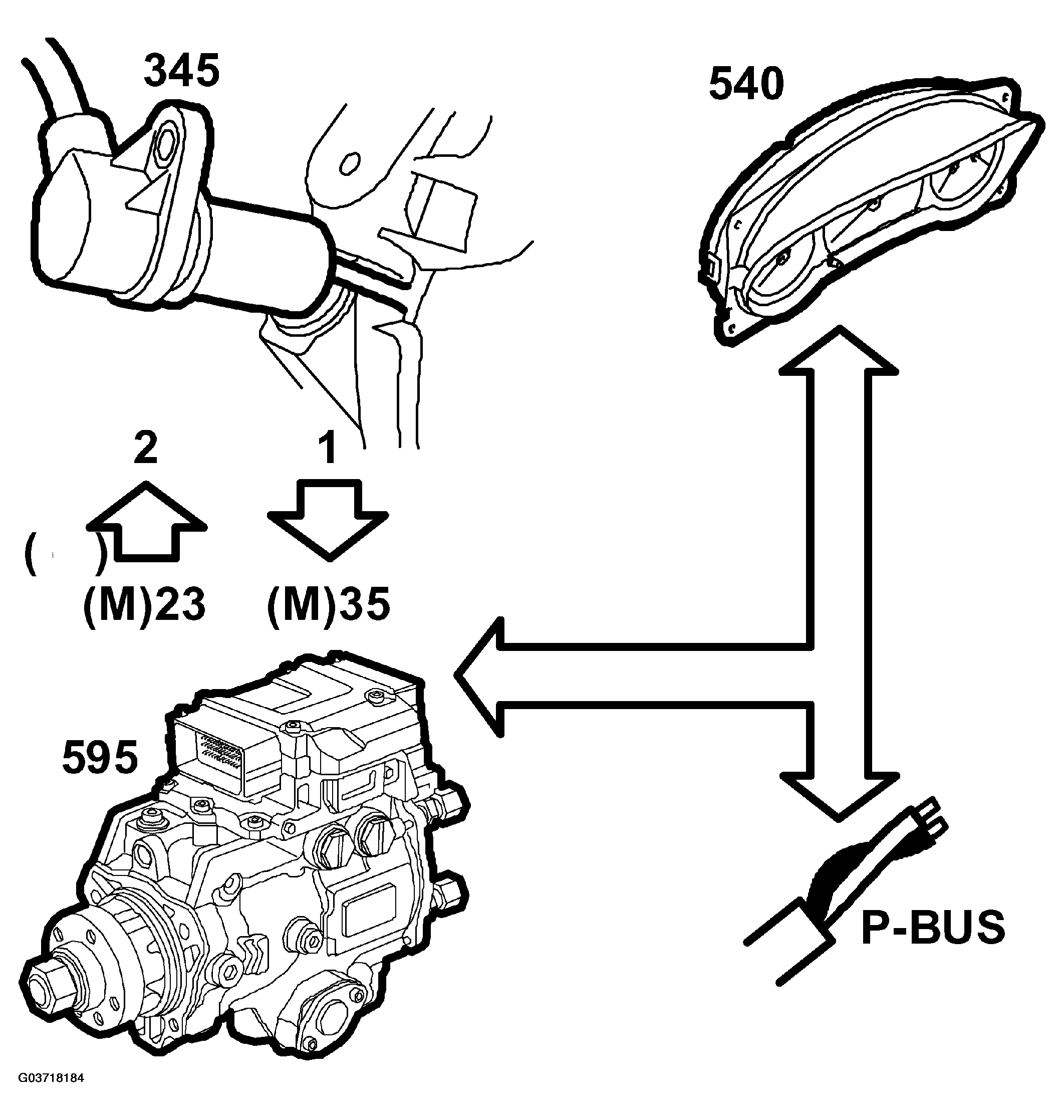

Fig 1: Identifying Communication Flow Crankshaft Position Sensor (345) PSG16

Courtesy of SAAB-SCANIA OF AMERICA, INC.

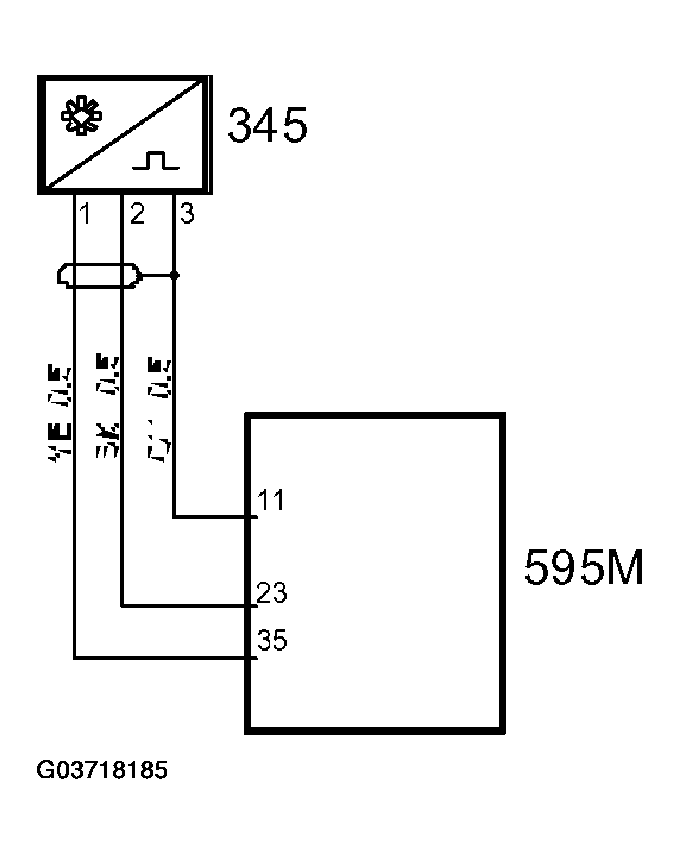

Fig 2: Circuit Diagram Crankshaft Position Sensor (345) Psg16

Courtesy of SAAB-SCANIA OF AMERICA, INC.
