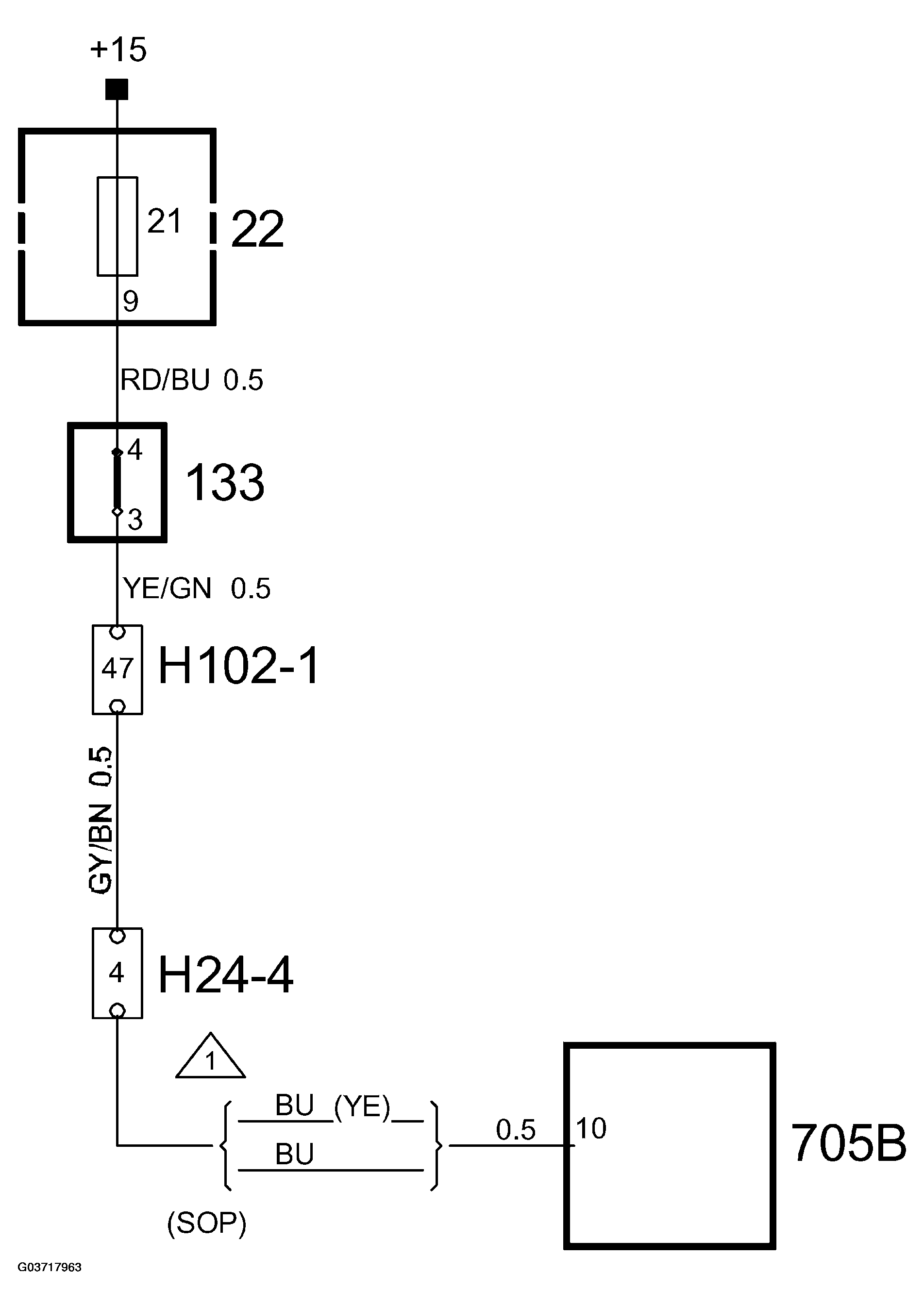

Clutch switch, cruise control (133), Simtec: Connection
CONNECTOR PINOUTS REFERENCE
| Pin No. |
Signal type |
Description |
| 3 |
Signal |
Connected to ECM pin 10(B). |
| 4 |
+15 |
Power supply from fuse 21. |
When the clutch pedal is depressed, power to control module pin 10(B) is interrupted.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
