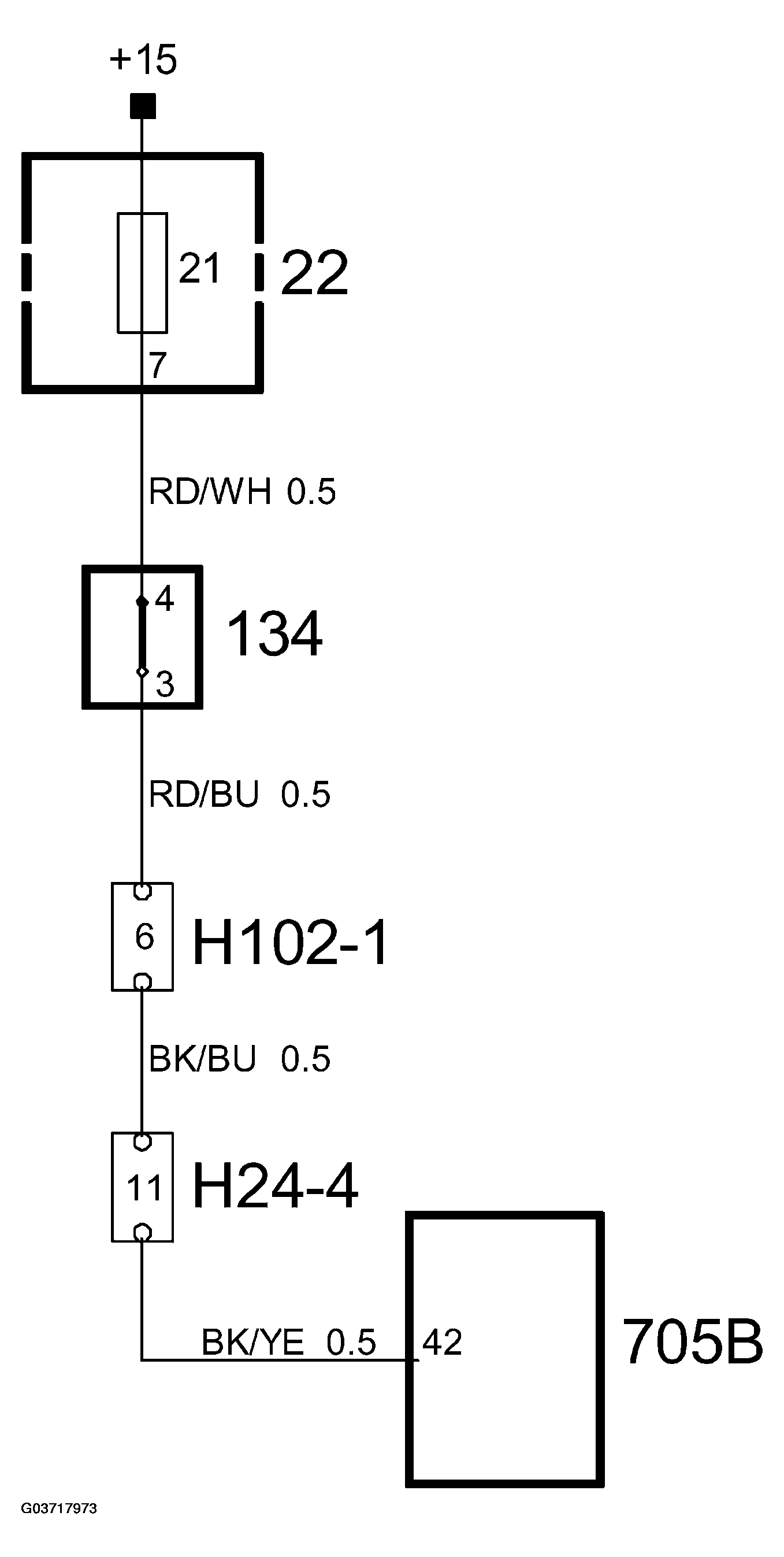

Brake switch, cruise control (134), Simtec: Connection
CONNECTOR PINOUTS REFERENCE
| Pin No. |
Signal type |
Description |
| 3 |
Signal |
Connected to ECM pin 42(B). |
| 4 |
+15 |
Power supply from fuse 21. |
When the brake pedal is depressed, B+ to control module pin 42(B) is interrupted, at which time the control module pin sinks to ground potential.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
