Atmospheric pressure sensor (539), PSG16: Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Power supply, 5 V	Connected to ECM pin 31(K).
2	Ground	Connected to ECM pin 8(K).
3	Signal	Connected to ECM pin 44(K).

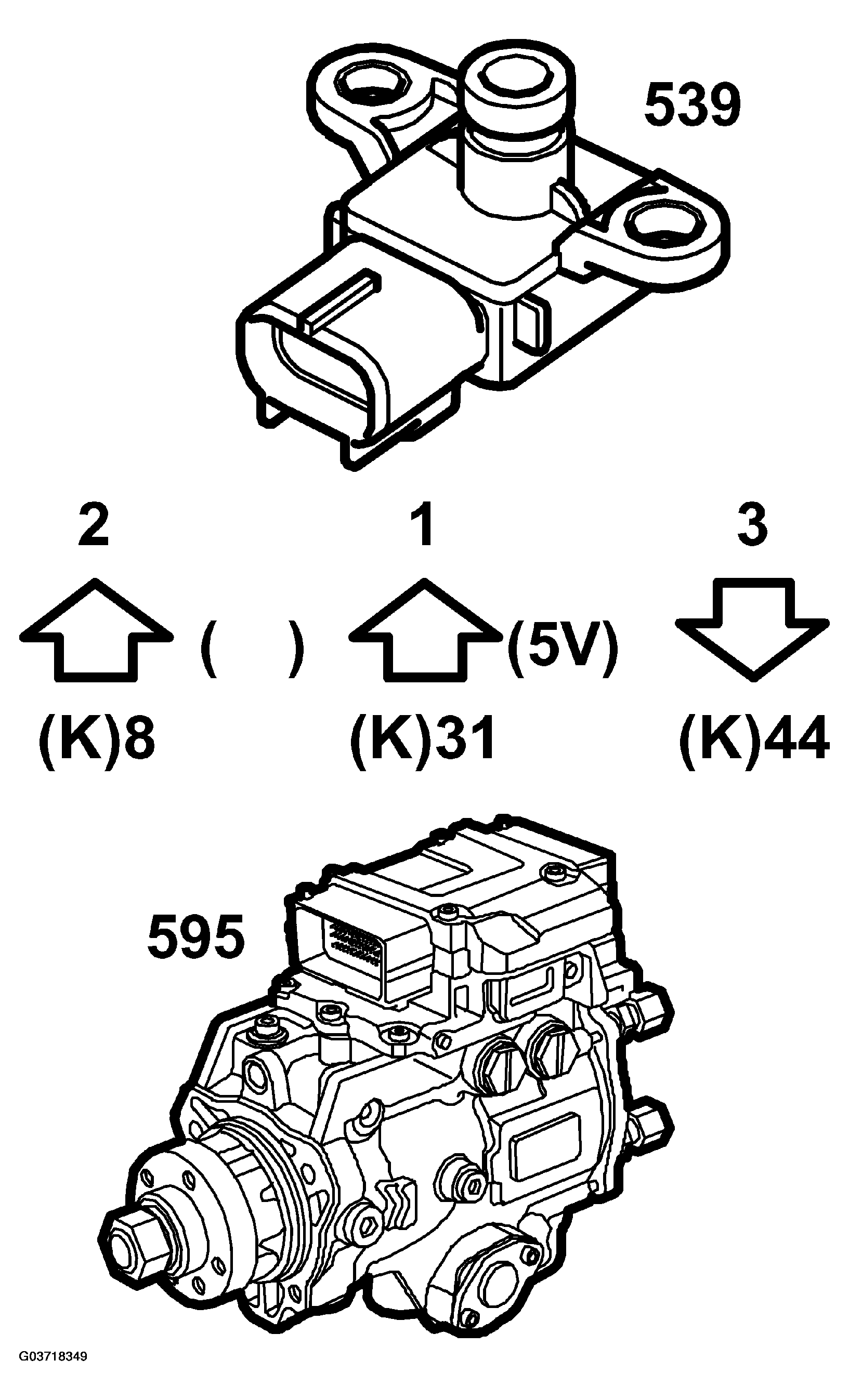

Fig 1: Identifying Communication Flow - Atmospheric Pressure Sensor (PSG16)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

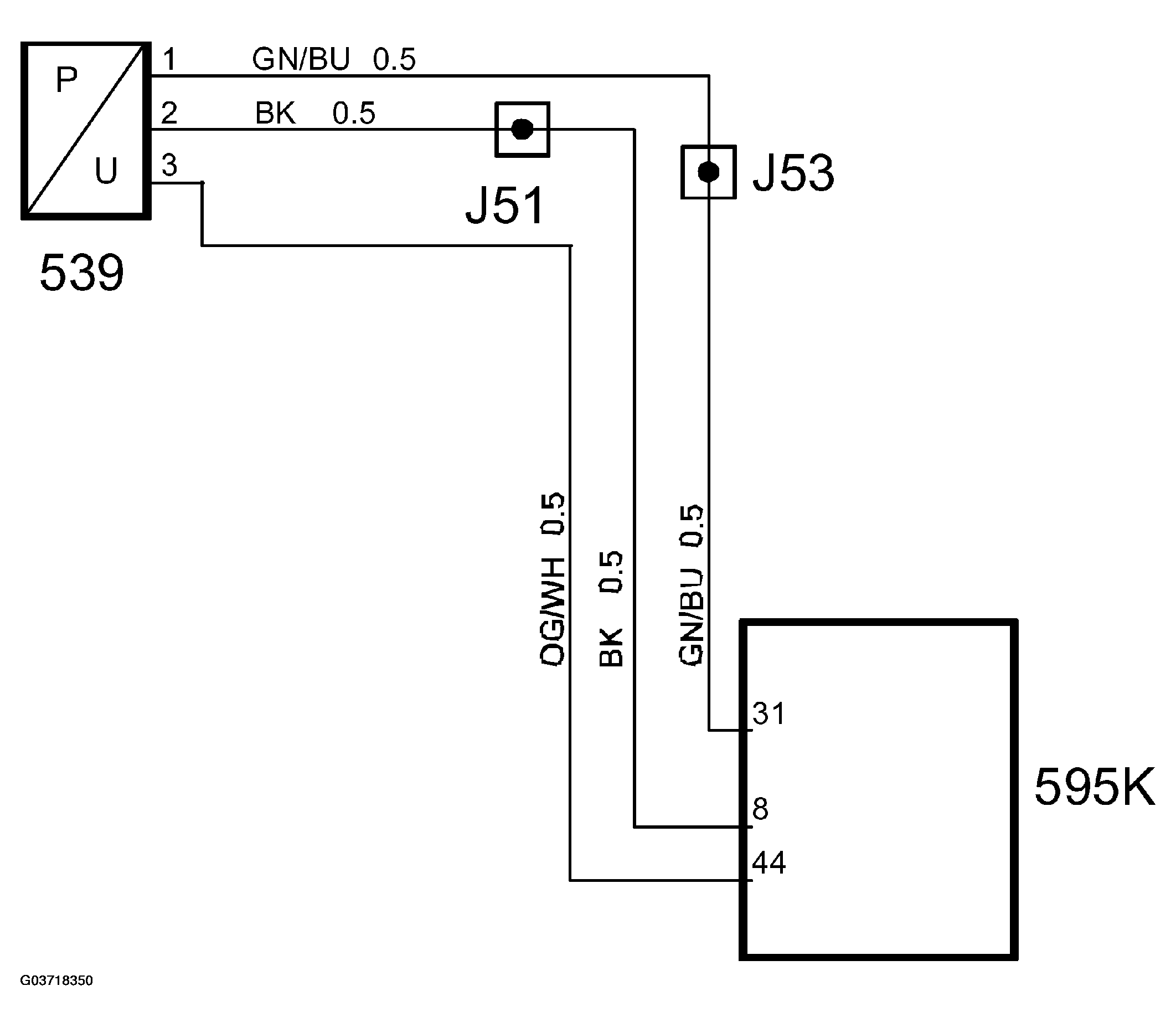

Fig 2: Circuit Diagram - Atmospheric Pressure Sensor (PSG16)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
