Airbag, driver (333D): Connection

From the control module, pin 10 receives voltage during B+ activation for driver airbag stage 1 charge. Grounding occurs via pin 11 on the control module. (Green connector), via the column integration module (CIM).

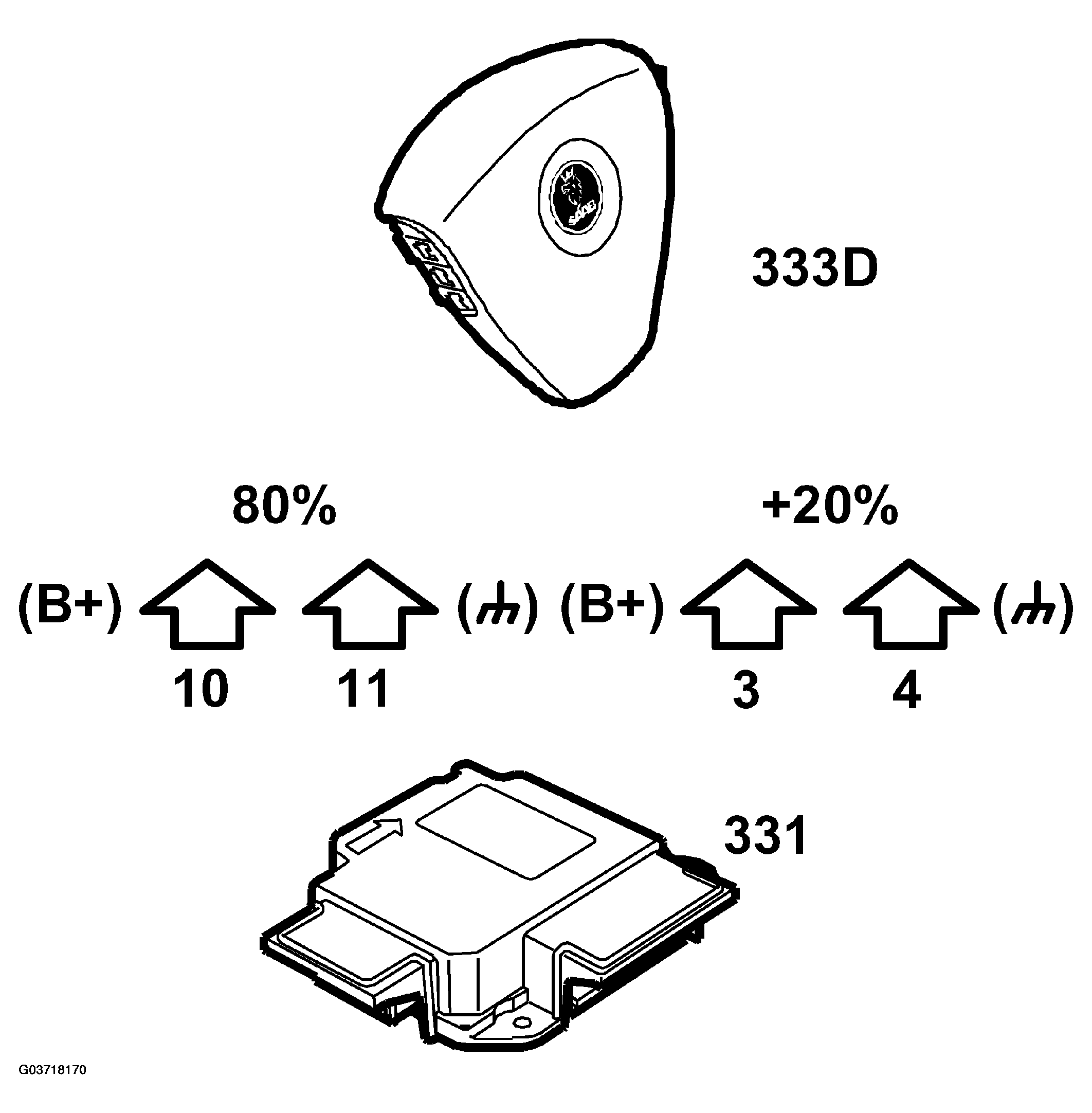

Fig 1: Identifying Communication Flow Airbag Driver (333D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

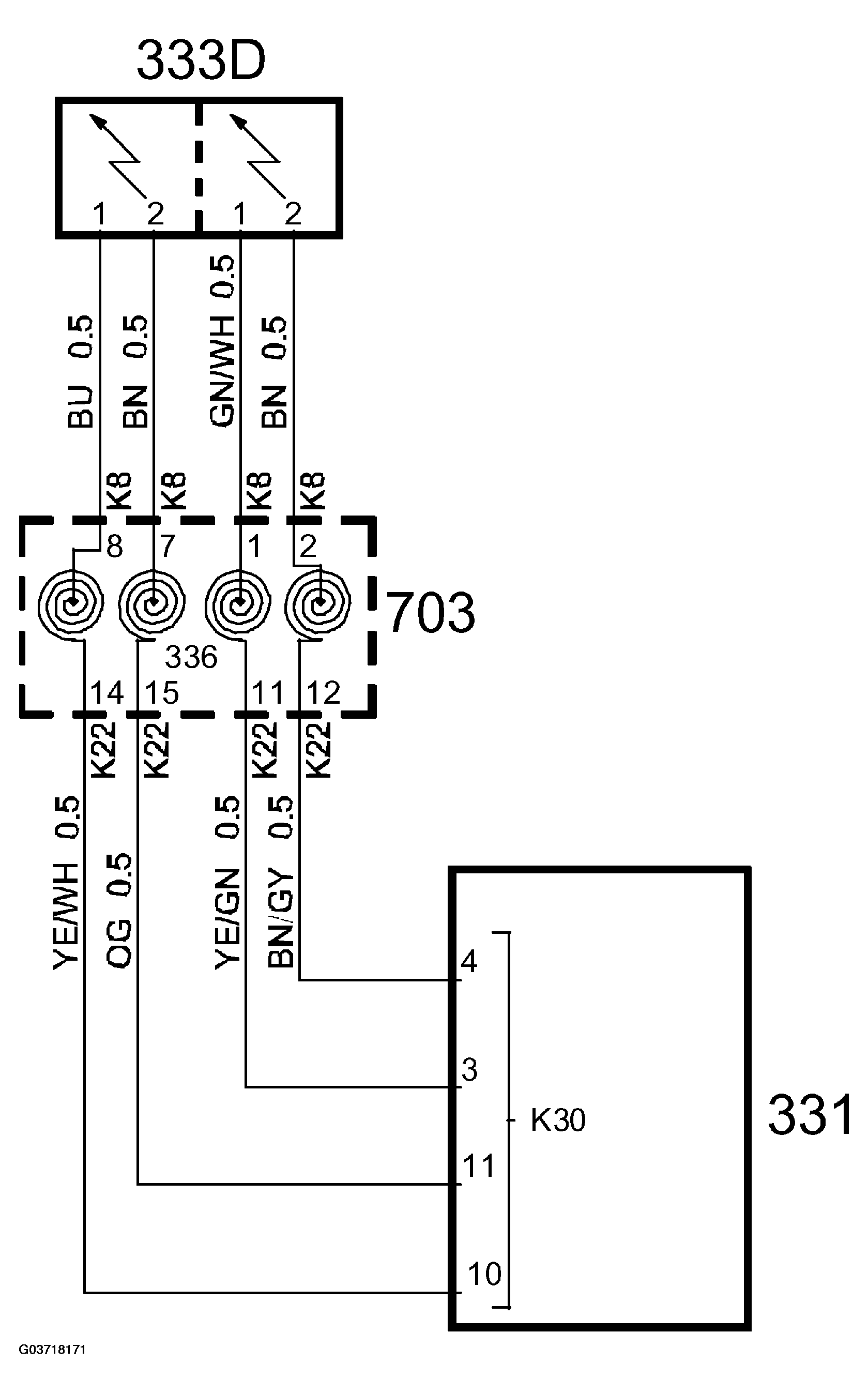

Fig 2: Circuit Diagram Airbag Driver (333D)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

From the control module, pin 3 receives voltage during B+ activation for driver airbag stage 2 charge. Grounding occurs via pin 4 on the control module. (Yellow connector), via the column integration module (CIM).
