Activation unit, protective bow, driver/passenger side (734D/P): Connection

On activation, the driver's side activation unit (734D) is supplied with B+ from the airbag control module pin 26. The activation unit (734D) is grounded from control module pin 27.

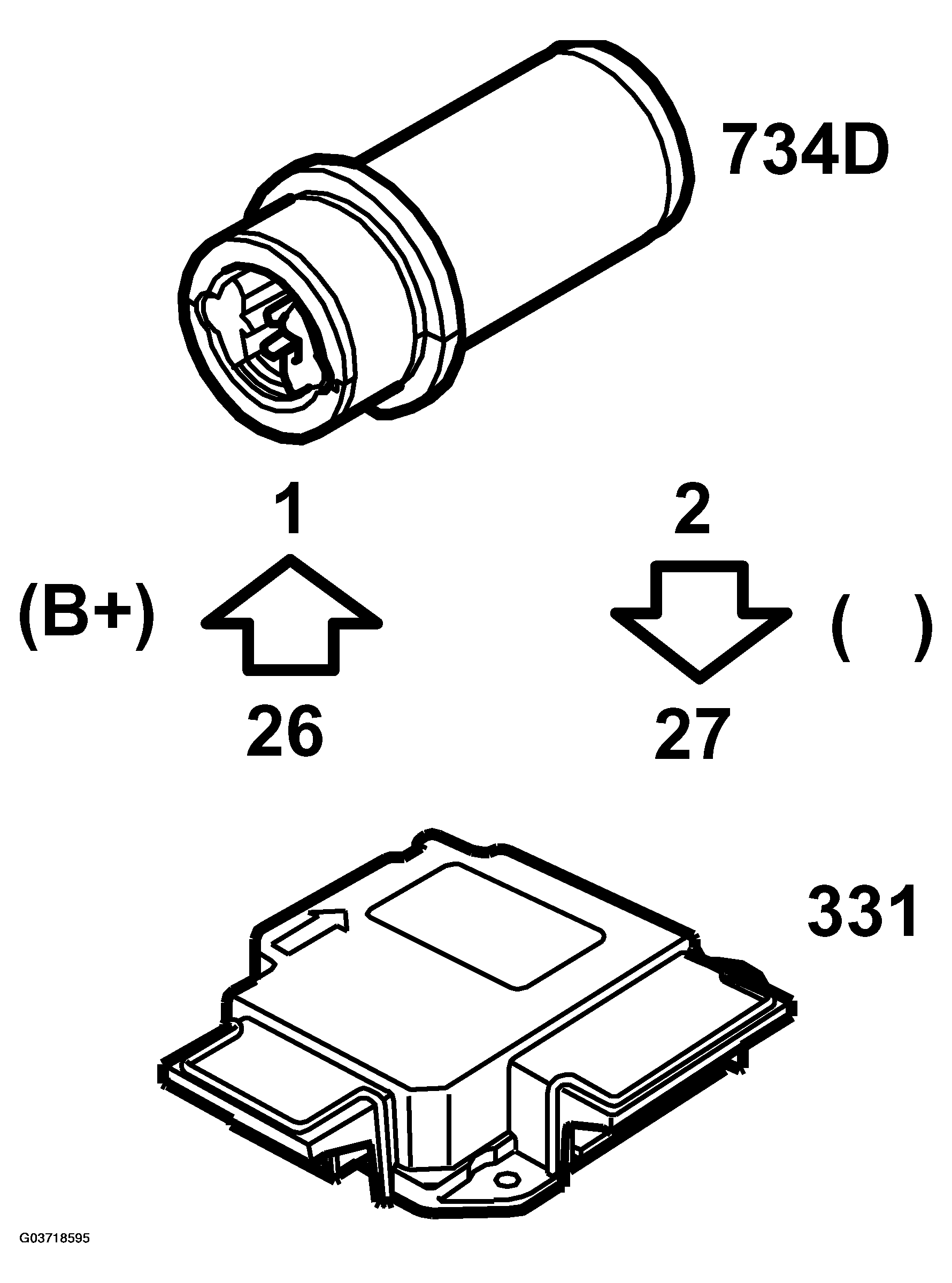

Fig 1: Identifying Communication Flow - Driver/Passenger Side Activation Unit

Courtesy of SAAB-SCANIA OF AMERICA, INC.

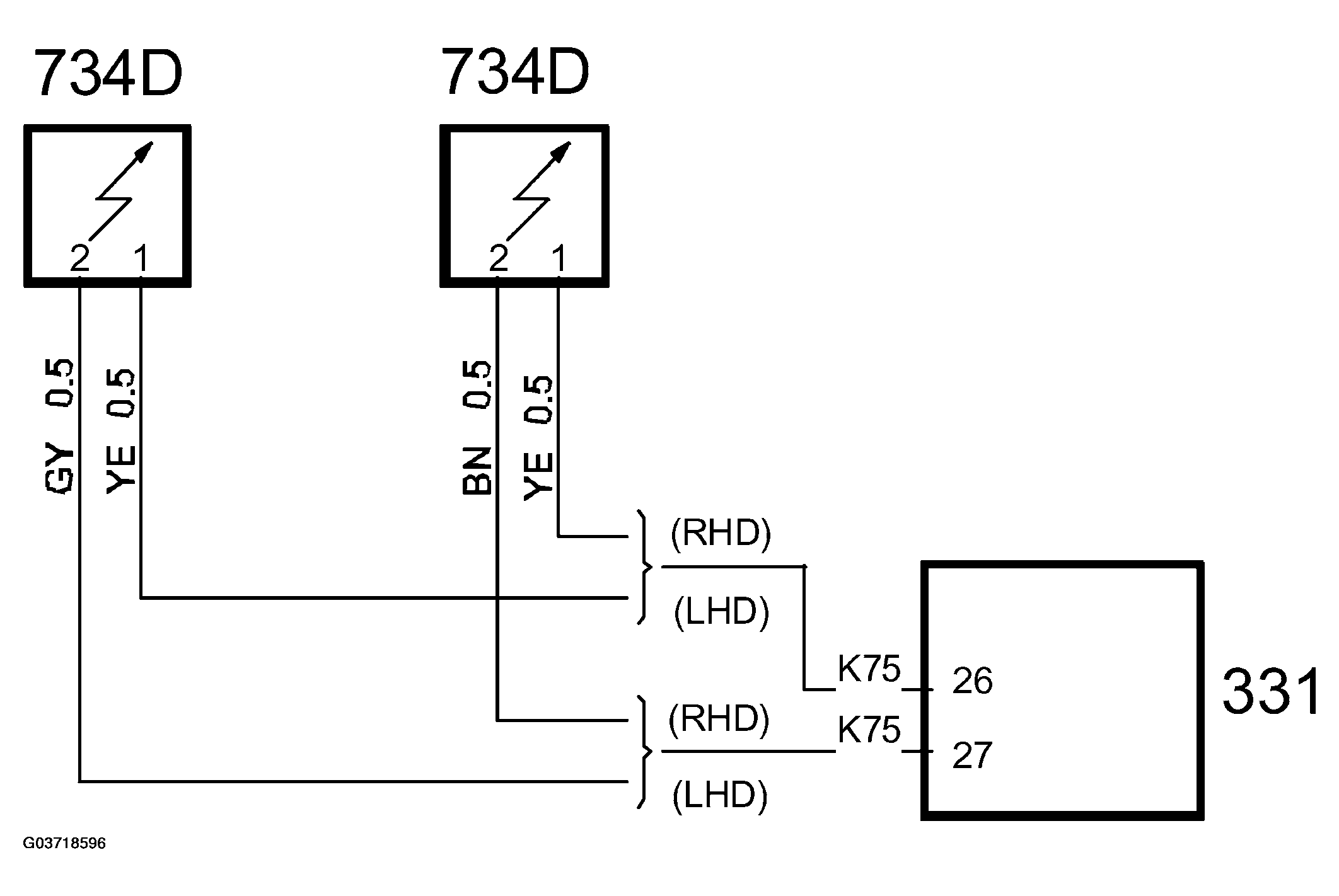

Fig 2: Circuit Diagram - Driver/Passenger Side Activation Unit

Courtesy of SAAB-SCANIA OF AMERICA, INC.

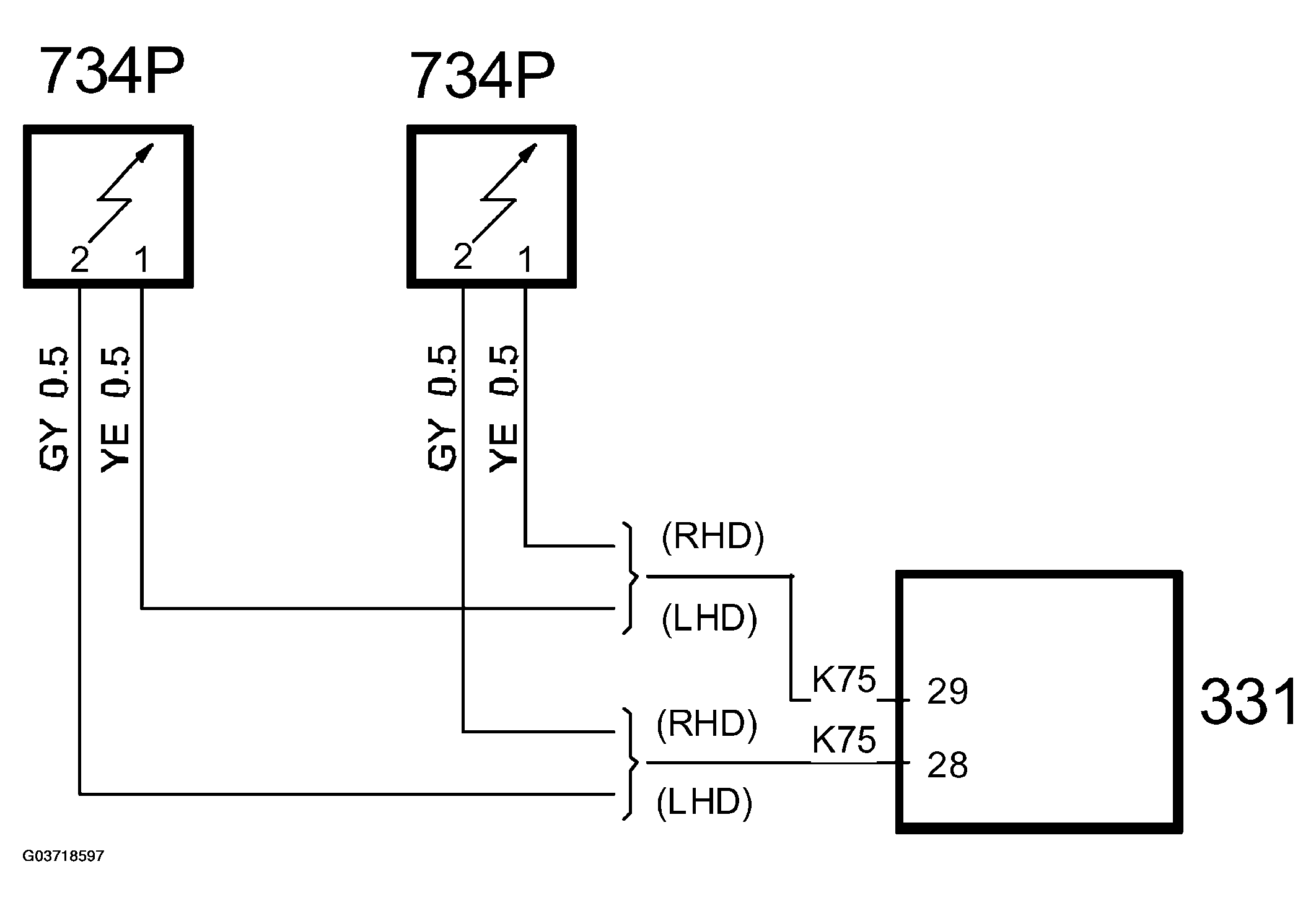

On activation, the passenger's side activation unit (734P) is supplied with B+ from the airbag control module pin 29. The activation unit (734D) is grounded from control module pin 28.

Fig 3: Circuit Diagram - Driver/Passenger Side Activation Unit

Courtesy of SAAB-SCANIA OF AMERICA, INC.
