Accelerator pedal position sensor (379), PSG16: Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Power supply, 5 V	Connected to ECM pin 31(K).
2	Power supply, 5 V	Connected to ECM pin 7(K).
3	Signal, P1	Connected to ECM pin 33(K).
4	Ground	Connected to ECM pin 9(K).
5	Ground	Connected to ECM pin 21(K).
6	Signal, P2	Connected to ECM pin 45(K).

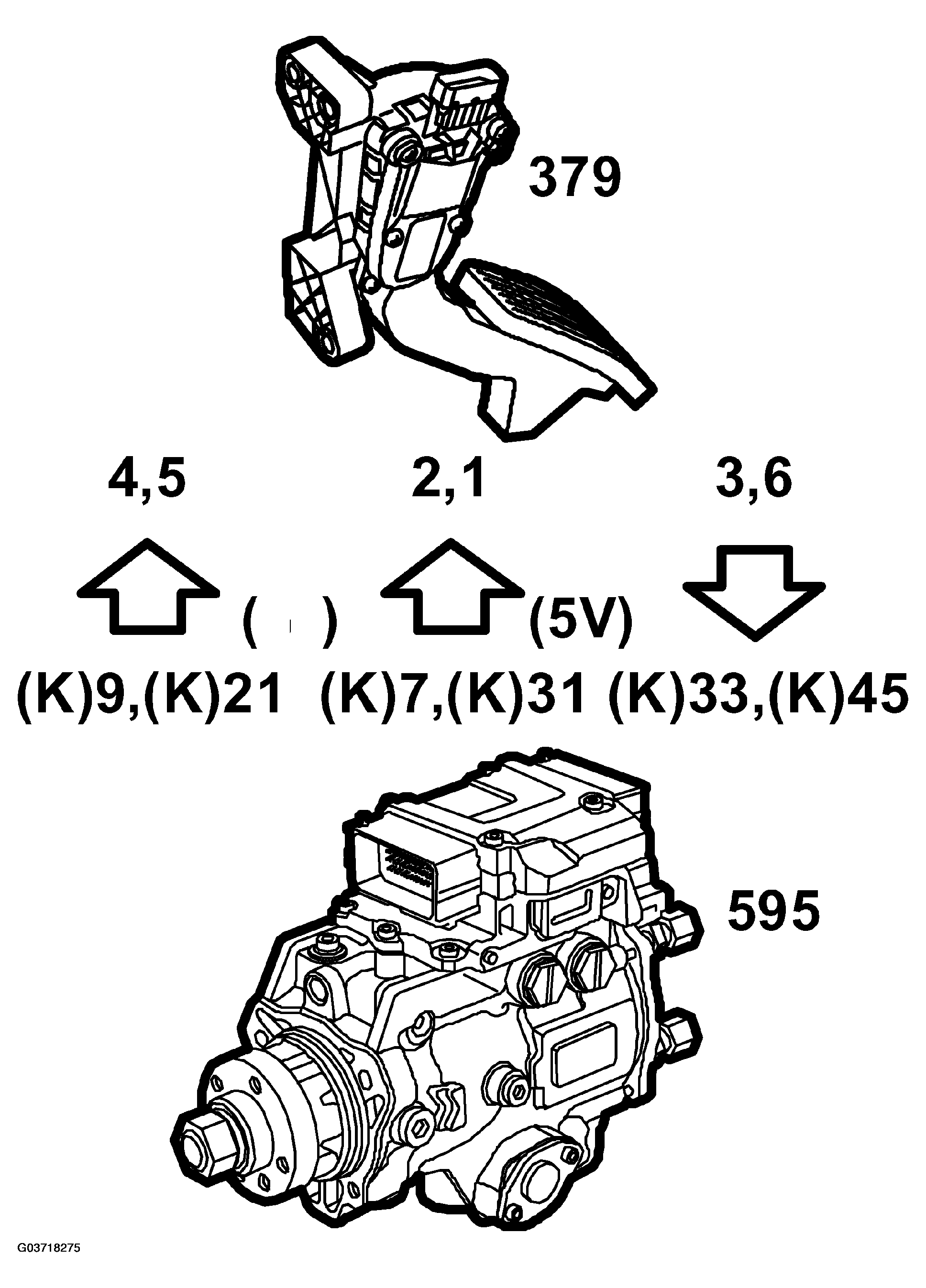

Fig 1: Identifying Communication Flow Accelerator Pedal Position Sensor (379), Psg16

Courtesy of SAAB-SCANIA OF AMERICA, INC.

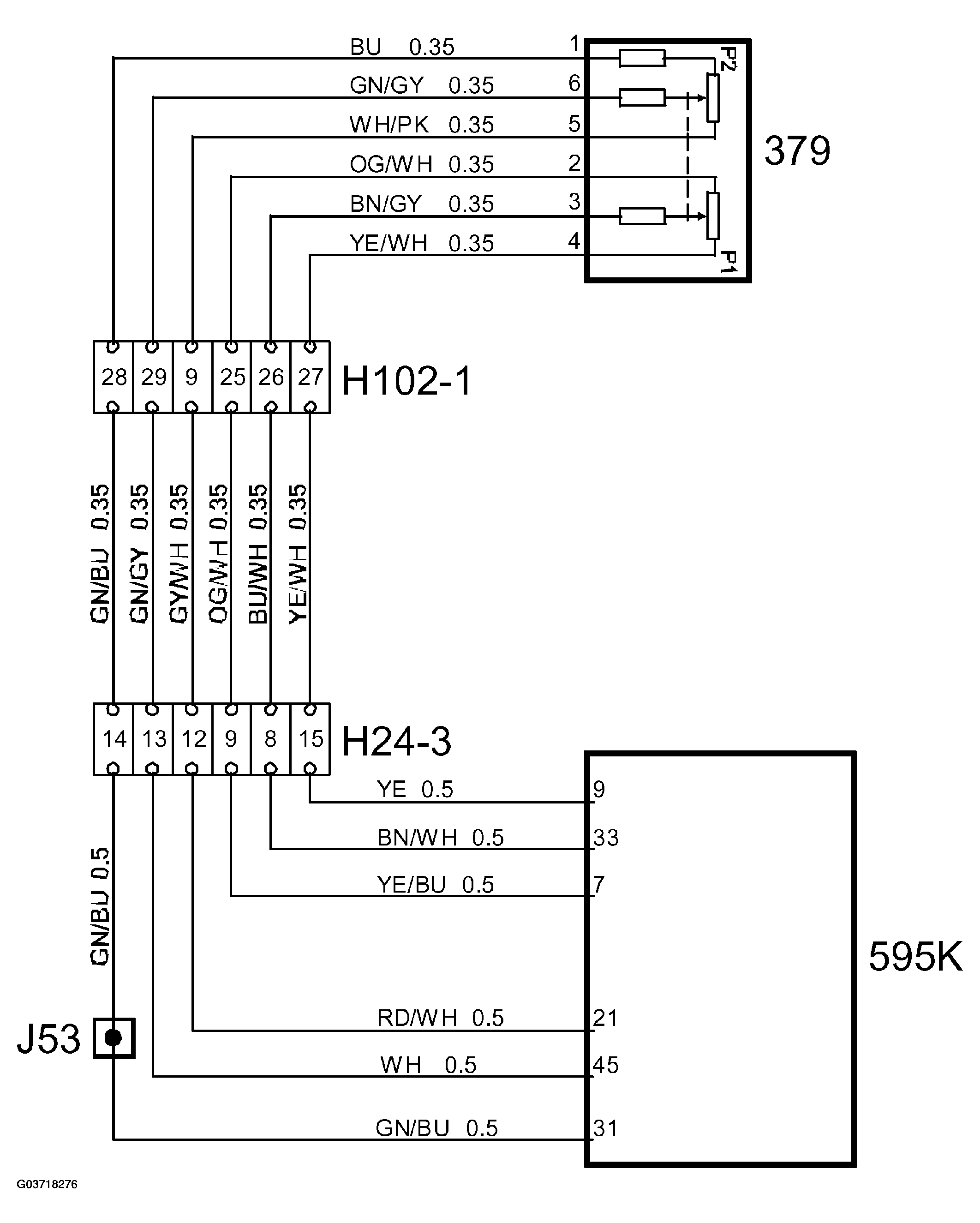

Fig 2: Circuit Diagram Accelerator Pedal Position Sensor (379), Psg16

Courtesy of SAAB-SCANIA OF AMERICA, INC.
