Ventilation fan control (220)

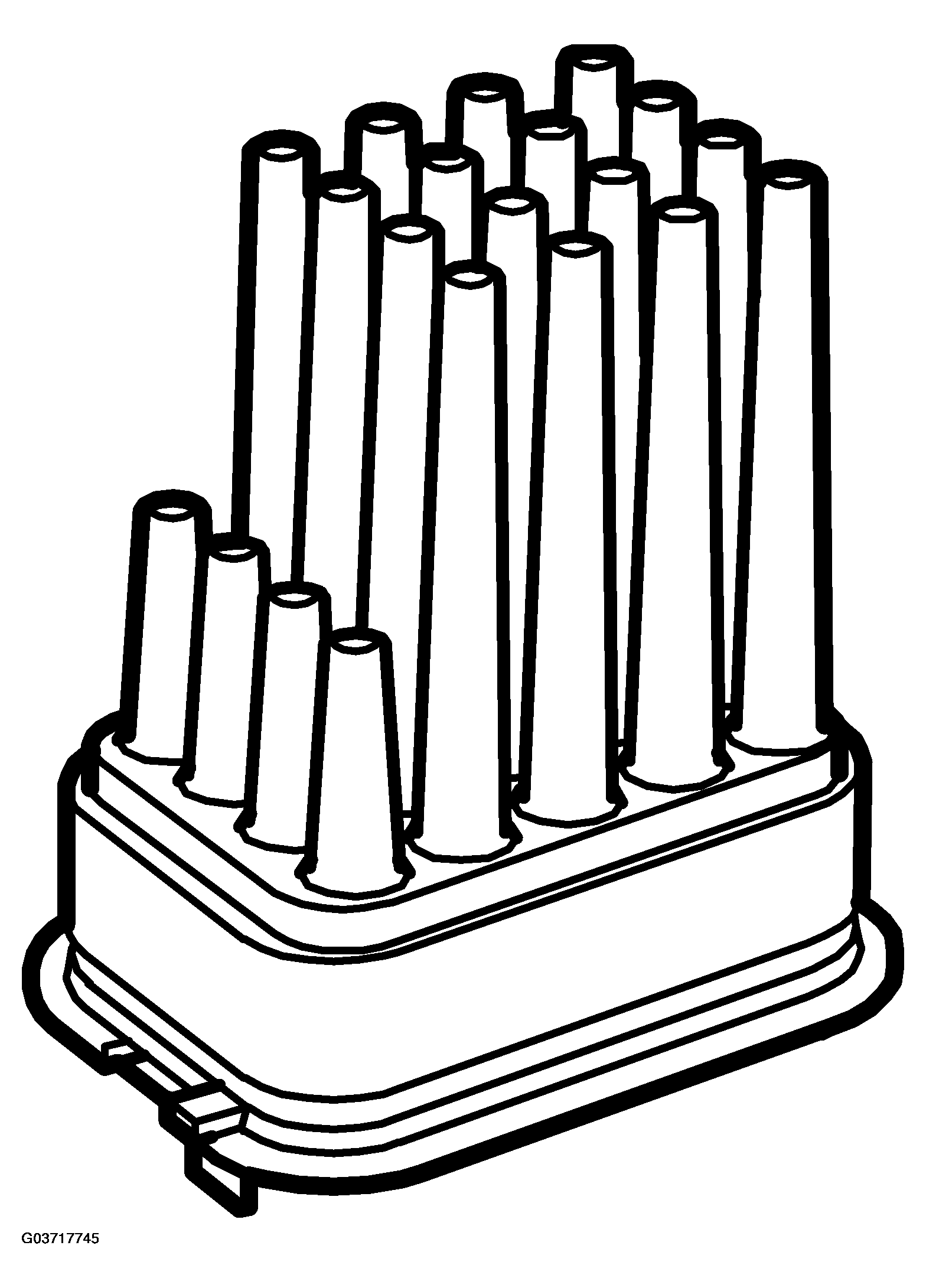

Fig 1: View Of Ventilation Fan Control (220)
G03717745Courtesy of SAAB-SCANIA OF AMERICA, INC.
VENTILATION FAN CONTROL (220) TECHNICAL DATA

Control voltage pin no
V		 2
0-5
Power supply B+ pin no 1
Reference ground pin no 3
