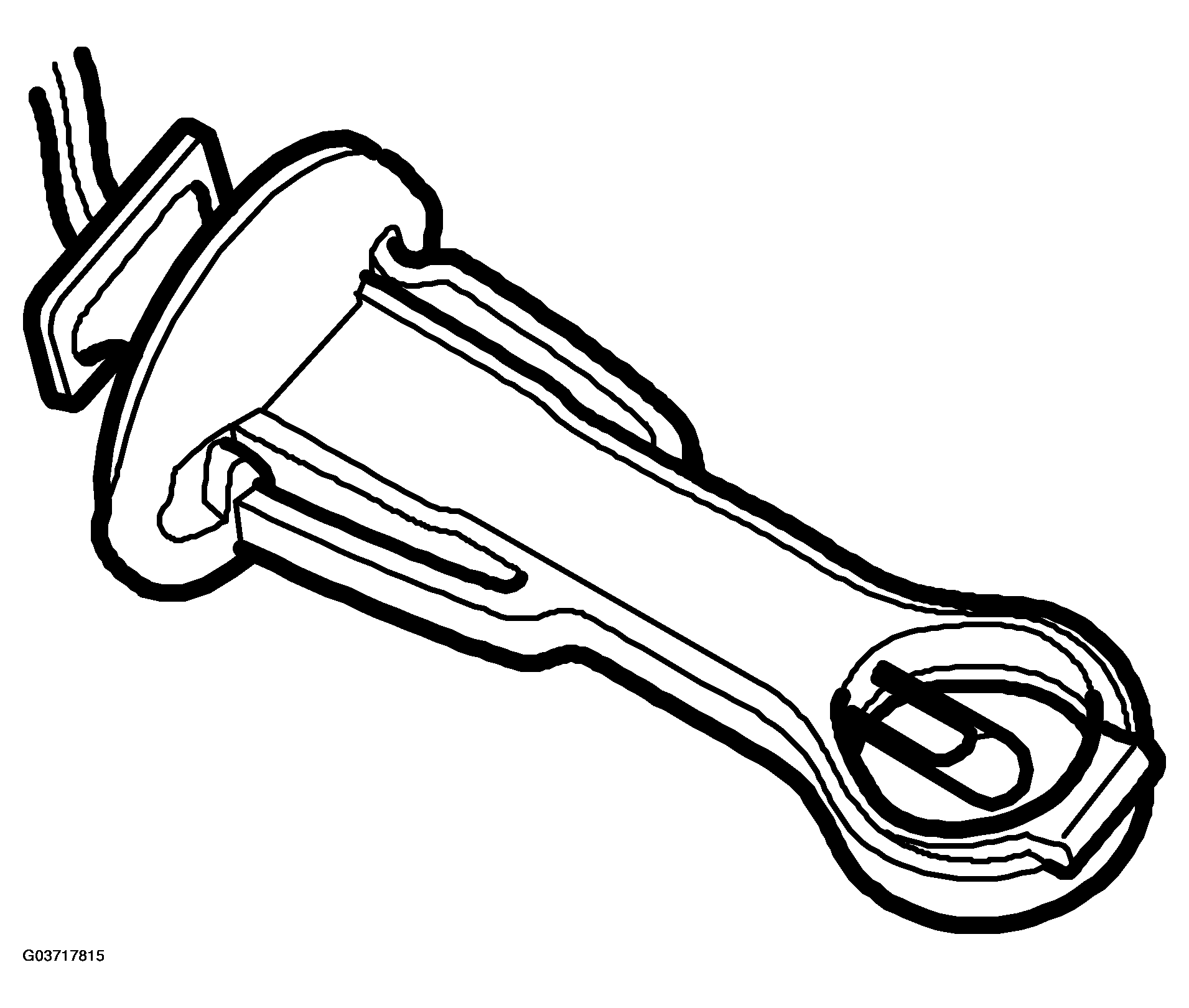

Temperature sensor, mixed air, panel, left (712LH)
Voltage fed with 5 V through a 19.6 kOhm resistor in the control module.

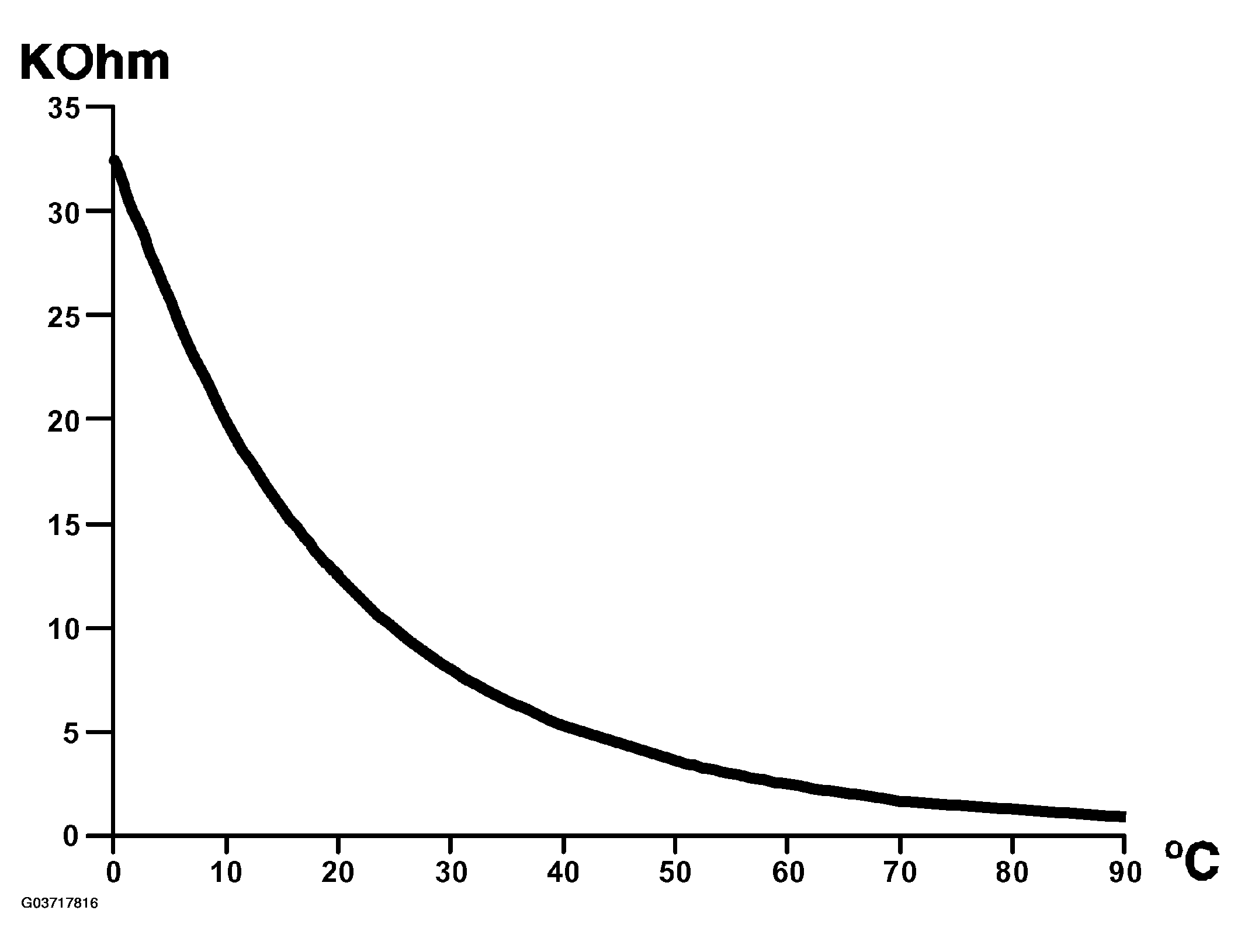

TECHNICAL DATA - TEMPERATURE SENSOR, MIXED AIR, PANEL, LEFT (712LH)
| °C (°F) | kOhm |
|---|---|
| 0 (32) | 32,5 |
| 10(50) | 19,9 |
| 20 (68) | 12,5 |
| 30 (86) | 8,0 |
| 40 (104) | 5,3 |
| 50 (122) | 3,6 |
| 60 (140) | 2,5 |
| 70 (158) | 1,7 |
| 80 (176) | 1,3 |
| 90 (194) | 0,9 |
