Motor, air mixing damper MCC (222): Notes

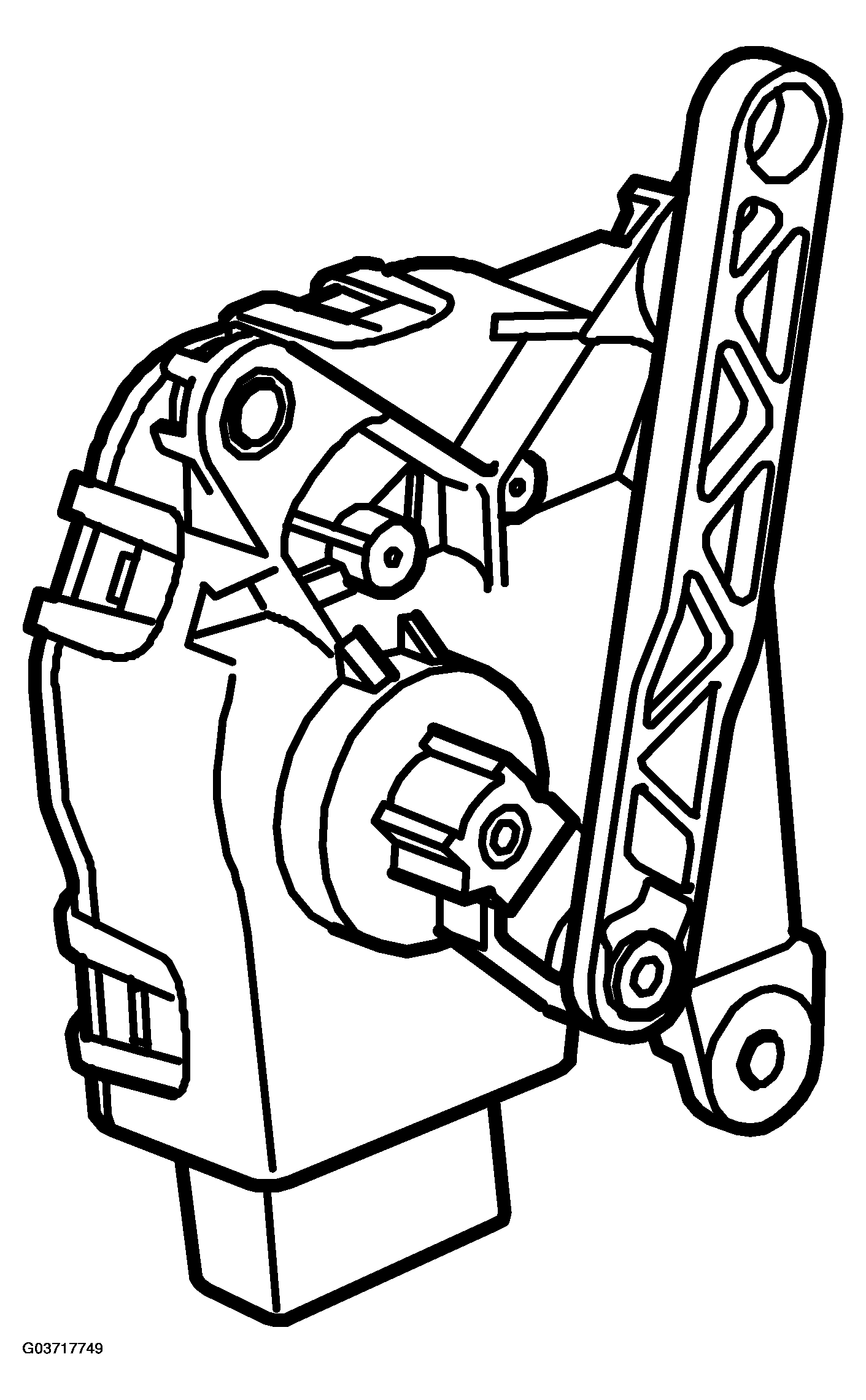

Fig 1: View Of Motor, Air Mixing Damper MCC (222)
G03717749Courtesy of SAAB-SCANIA OF AMERICA, INC.
MOTOR, AIR MIXING DAMPER MCC (222) TECHNICAL DATA

Number of windings pcs 1
Winding resistance pin no.
Ohm		 5-6
36,0+/-15
Power supply V 12
