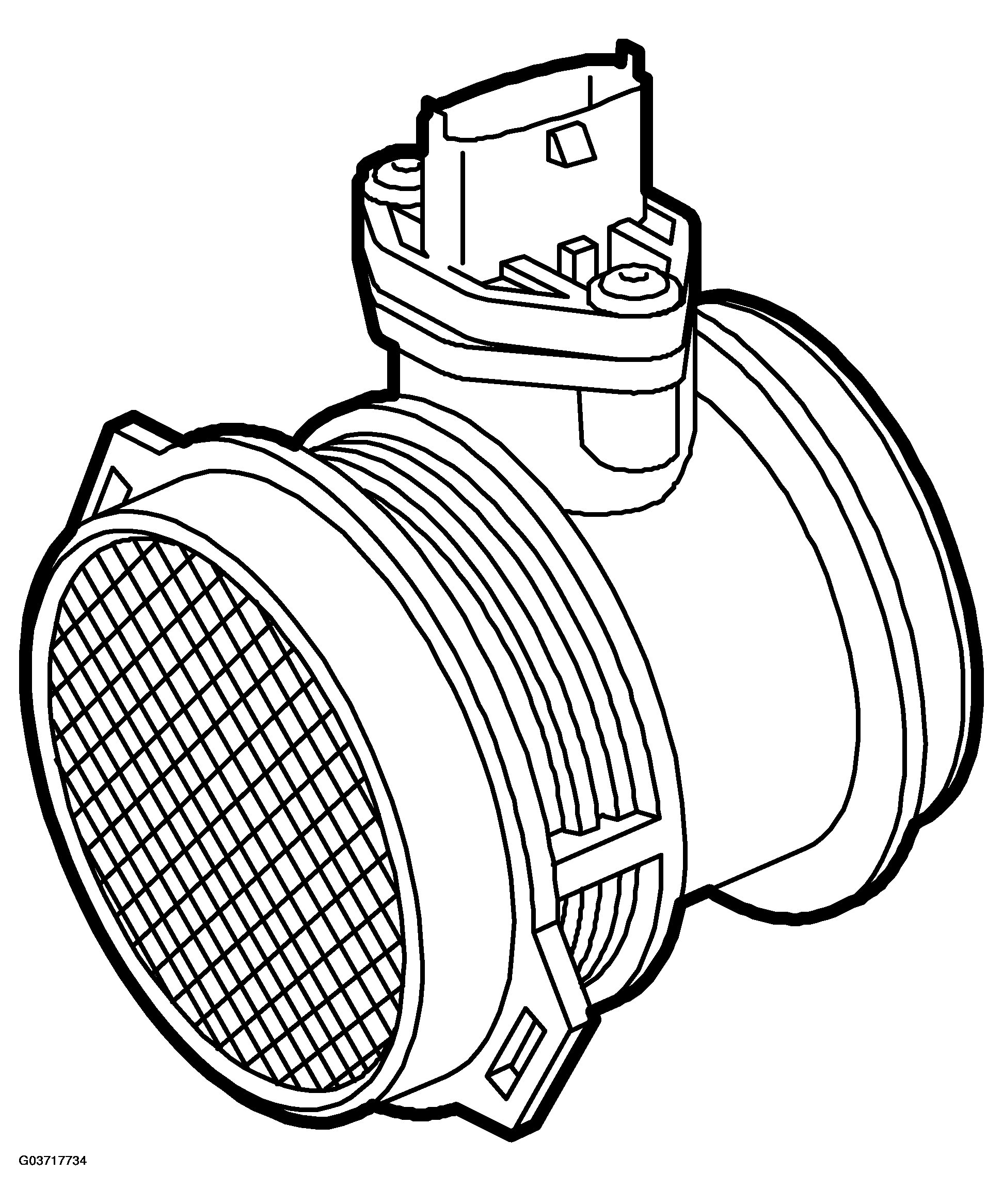

Mass air flow sensor (205), PSG16
Courtesy of SAAB-SCANIA OF AMERICA, INC.

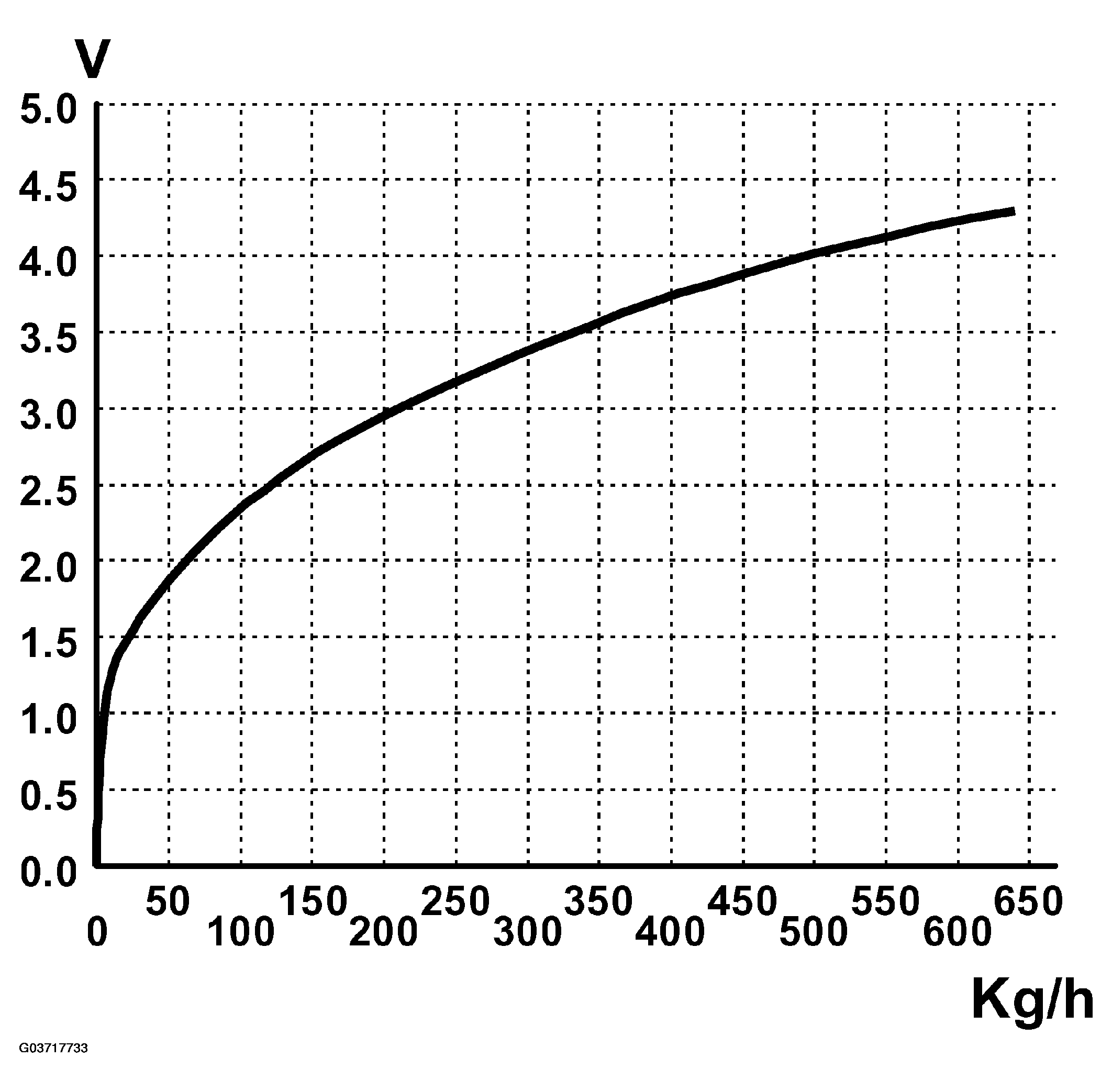

Courtesy of SAAB-SCANIA OF AMERICA, INC. MASS AIR FLOW SENSOR (205), PSG16 TECHNICAL DATA
| Airflow (kg/h) |
Voltage (V) |
| 15 |
1.39 |
| 30 |
1.57 |
| 60 |
2.02 |
| 120 |
2.57 |
| 250 |
3.26 |
| 370 |
3.67 |
| 480 |
3.96 |
| 640 |
4.30 |
