Fuel pump relay (102)

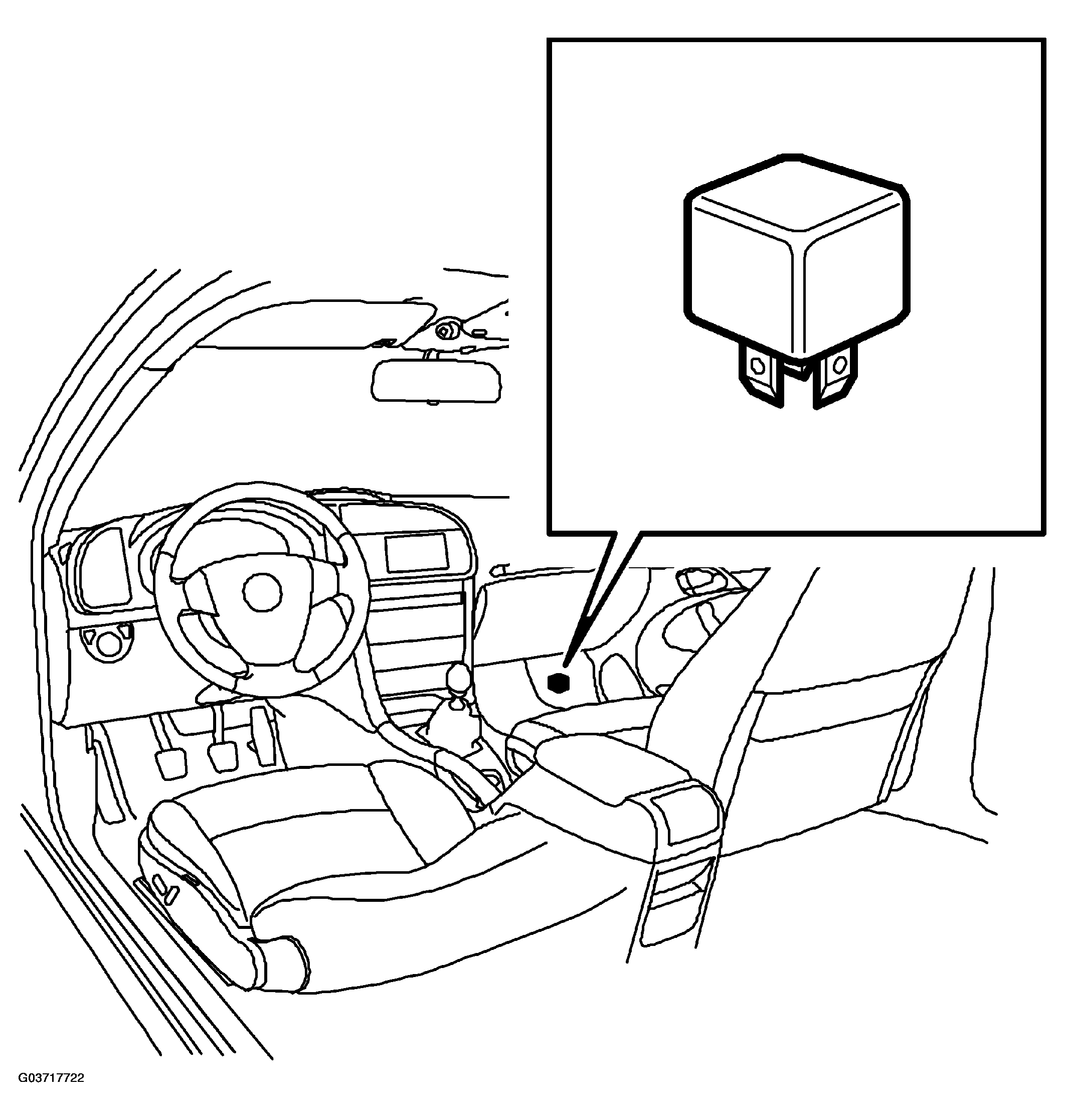

Fig 1: Identifying Location Of Fuel Pump Relay (102) Connector - Connector Location
G03717722Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PUMP RELAY (102) TECHNICAL DATA

Resistance, winding at 20 °C (68 °F) 85+/-5 Ohm
Nominal control voltage 12V
Rated current 30A
