Front wheel speed sensor (298FL, FR)

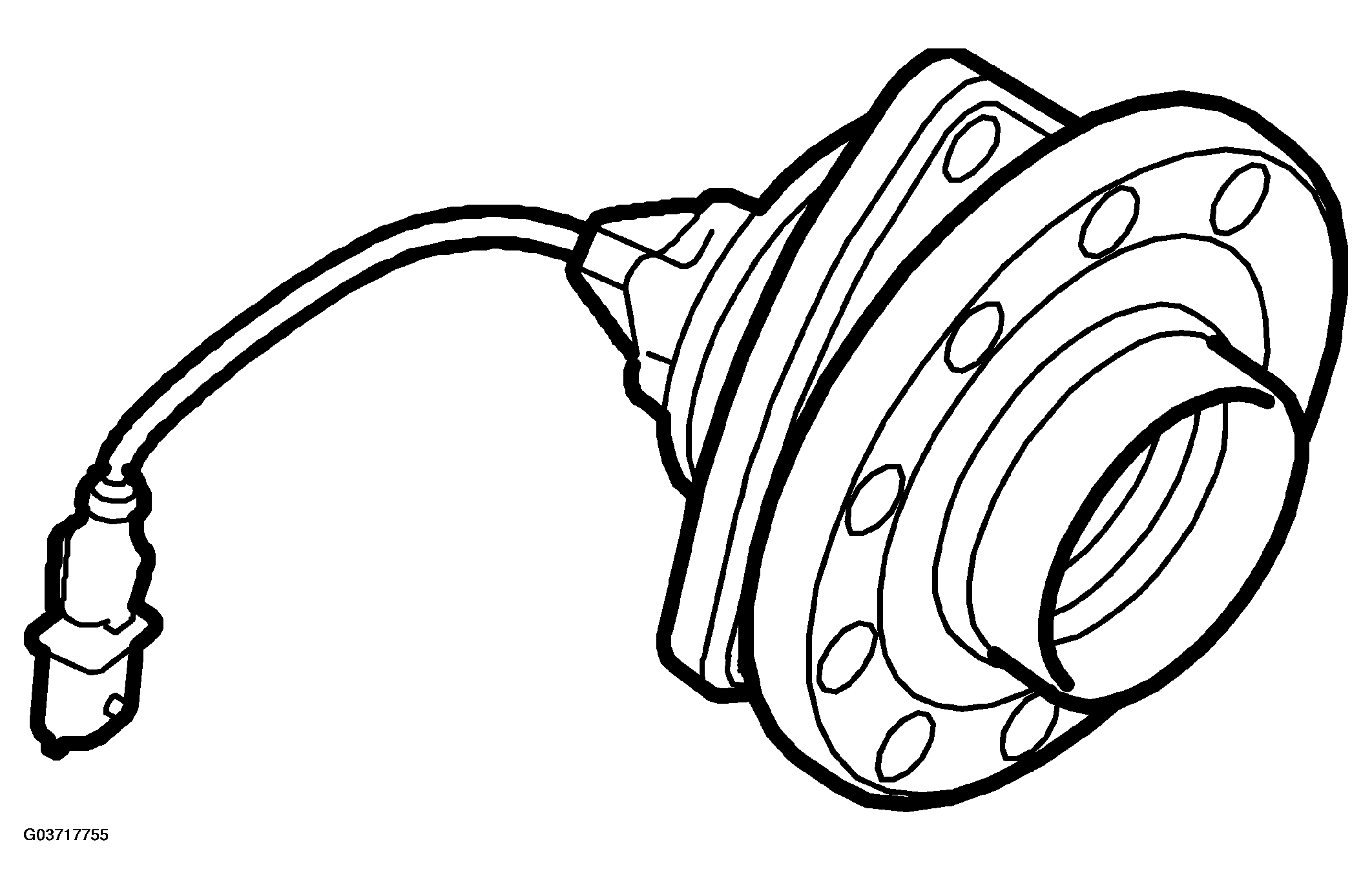

Fig 1: View Of Front Wheel Speed Sensor (298FL, FR)
G03717755Courtesy of SAAB-SCANIA OF AMERICA, INC.
FRONT WHEEL SPEED SENSOR (298FL, FR) TECHNICAL DATA

Signal form PWM (pulse ratio) 50%
Frequency 0-2000 Hz
Signal current, low (Ilow ) Nominal 7.0mA
min 5.6 mA
max 8.4 mA
Signal current, high (Ihigh ) Nominal 14.0 mA
min 11.2 mA
max 16.8 mA
Pulses 48 pulses/rotation
Distance between the perforated disc and sensor (not adjustable) 0.2-1.3 mm
